Backlights

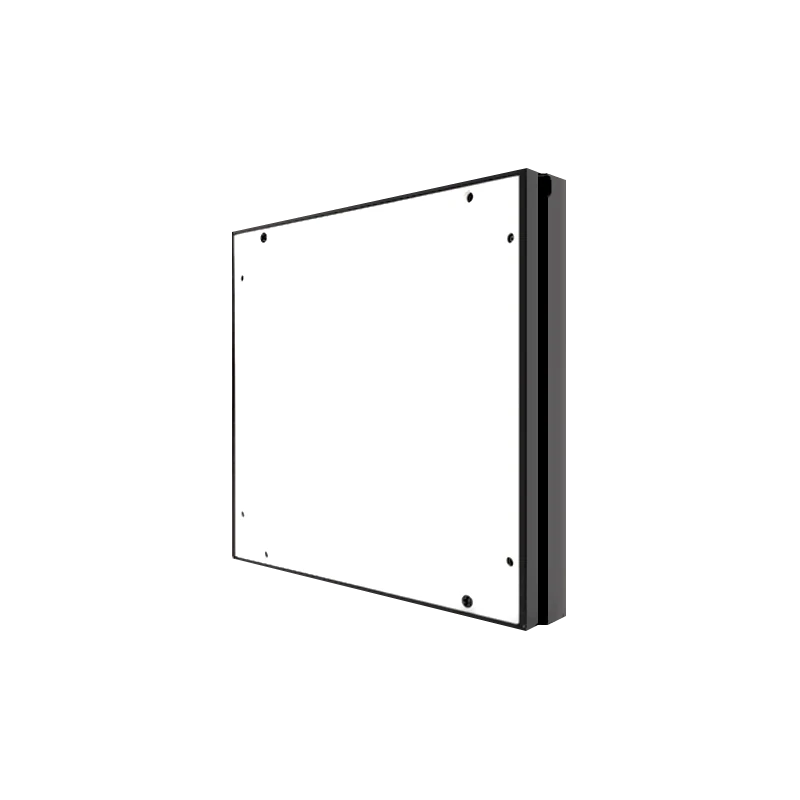

Collimated backlight (LS-BKL-S81)
- 18 models
- from $209.00
- Series LS-BKL-S81
The Collimated backlight (LS-BKL-S81) is a range of 18 backlights from LumaSpec Vision, from $209.00. It comes in 18 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 50 x 50 mm, 60 x 60 mm, 70 x 70 mm, 80 x 80 mm, 90 x 90 mm, 100 x 100 mm, 120 x 120 mm, 150 x 150 mm, 200 x 150 mm, 200 x 200 mm, 250 x 125 mm, 250 x 250 mm, 300 x 150 mm, 300 x 200 mm, 300 x 300 mm, 400 x 200 mm and 2 more
- Colour
- Red, Blue, White
- Type
- Collimated
- Voltage
- 24 V
- Connector
- 3-pin flat
Features
- Collimated (parallel) backlight for sharp edges in measurement
- Four-sided M3 nut grooves and bottom side installation
- Three-colour RGB light source, size and height, wavelength/colour temperature, mounting and input wire length customization
- Luminous size can be made individually: 10050, 12060, 14070, 16080, 200100, 240120 (remark for the small sizes)
- Luminous size: 50mm*50mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:30000 hours for red light and 30000 hours for white light.
- Suitable for high-precision detection such as contour detection, Edge breakage detection and Liquid height detection, etc.
Typical uses
- Metal cylinder profile measurement
- Glass bottle diameter measurement
- Large-area circuit board component detection and identification
- Dimension measurement of metal parts
- Wafer surface defect detection
All 18 models in the Collimated backlight (LS-BKL-S81)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-0698 | 50 x 50 mm | 22.5 | 64 | 50x50 | $209.00 | View |
| LS-BKL-0699 | 60 x 60 mm | 22.5 | 74 | 60x60 | $219.00 | View |
| LS-BKL-0700 | 70 x 70 mm | 22.5 | 84 | 70x70 | $229.00 | View |
| LS-BKL-0701 | 80 x 80 mm | 22.5 | 94 | 80x80 | $249.00 | View |
| LS-BKL-0702 | 90 x 90 mm | 22.5 | 104 | 90x90 | $259.00 | View |
| LS-BKL-0703 | 100 x 100 mm | 22.5 | 114 | 100x100 | $279.00 | View |
| LS-BKL-0704 | 120 x 120 mm | 22.5 | 134 | 120x120 | $309.00 | View |
| LS-BKL-0705 | 150 x 150 mm | 23.5 | 164 | 150x150 | $389.00 | View |
| LS-BKL-0706 | 200 x 150 mm | 23.5 | 214 | 200x150 | $459.00 | View |
| LS-BKL-0708 | 250 x 125 mm | 23.5 | 264 | 250x125 | $469.00 | View |
| LS-BKL-0707 | 200 x 200 mm | 23.5 | 214 | 200x200 | $549.00 | View |
| LS-BKL-0710 | 300 x 150 mm | 23.5 | 314 | 300x150 | $599.00 | View |
| LS-BKL-0711 | 300 x 200 mm | 23.5 | 314 | 300x200 | $719.00 | View |
| LS-BKL-0709 | 250 x 250 mm | 23.5 | 264 | 250x250 | $739.00 | View |
| LS-BKL-0713 | 400 x 200 mm | 23.5 | 414 | 400x200 | $879.00 | View |
| LS-BKL-0712 | 300 x 300 mm | 23.5 | 314 | 300x300 | $959.00 | View |
| LS-BKL-0715 | 400 x 400 mm | 23.5 | 414 | 400x400 | $1,049.00 | View |
| LS-BKL-0714 | 400 x 300 mm | 23.5 | 414 | 400x300 | $1,189.00 | View |
