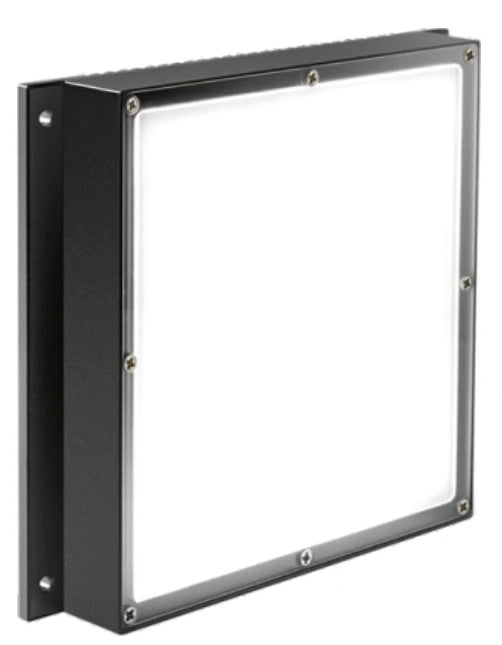

Parallel back light source (LS-BKL-S137)
- 18 models
- from $199.00
- Series LS-BKL-S137
The Parallel back light source (LS-BKL-S137) is a range of 18 backlights from LumaSpec Vision, from $199.00. It comes in 14 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 27 x 27 mm, 48 x 28 mm, 50 x 50 mm, 100 x 100 mm, 100 x 50 mm, 120 x 120 mm, 150 x 100 mm, 180 x 150 mm, 200 x 100 mm, 200 x 200 mm, 228 x 158 mm, 250 x 150 mm, 250 x 250 mm, 300 x 200 mm
- Colour
- Red, Green, Blue, White
- Type
- Collimated
- Voltage
- 24 V
Features
- High density LED distributed at the bottom of the light source
- Good uniformity, soft and natural light, high brightness
- Flexible size, convenient customization, wide range of applications
- Various installation methods for convenient mounting
- Special optical material design, simple structure, can eliminate the shadow
Typical uses
- High precision dimension measuring
- Inspection of foreign matter on metal surface
- Inspection of glue on metal surface
- Glass vessel inspection
- Screen positioning and fitting
- Optical fibre alignment
All 18 models in the Parallel back light source (LS-BKL-S137)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-1536 | 27 x 27 mm | 27 x 27 | 17.3 | 37 | $199.00 | View |
| LS-BKL-1537 | 48 x 28 mm | 48 x 28 | 20.6 | 58 | $199.00 | View |
| LS-BKL-1531 | 27 x 27 mm | 27 x 27 | 18 | 39 | $199.00 | View |
| LS-BKL-1538 | 50 x 50 mm | 50 x 50 | 21.5 | 78 | $209.00 | View |
| LS-BKL-1532 | 50 x 50 mm | 50 x 50 | 21 | 64 | $209.00 | View |
| LS-BKL-1539 | 100 x 50 mm | 100 x 50 | 21.5 | 140 | $239.00 | View |
| LS-BKL-1540 | 100 x 100 mm | 100 x 100 | 22 | 135 | $279.00 | View |
| LS-BKL-1533 | 100 x 100 mm | 100 x 100 | 21 | 114 | $279.00 | View |
| LS-BKL-1541 | 120 x 120 mm | 120 x 120 | 21 | 155 | $309.00 | View |
| LS-BKL-1542 | 150 x 100 mm | 150 x 100 | 20 | 180 | $319.00 | View |
| LS-BKL-1544 | 200 x 100 mm | 200 x 100 | 21.5 | 214 | $369.00 | View |
| LS-BKL-1534 | 180 x 150 mm | 180 x 150 | 21 | 194 | $429.00 | View |
| LS-BKL-1543 | 180 x 150 mm | 180 x 150 | 21.5 | 215 | $429.00 | View |
| LS-BKL-1546 | 228 x 158 mm | 228 x 158 | 21.5 | 240 | $509.00 | View |
| LS-BKL-1547 | 250 x 150 mm | 250 x 150 | 22 | 265 | $529.00 | View |
| LS-BKL-1545 | 200 x 200 mm | 200 x 200 | 21.5 | 234 | $549.00 | View |
| LS-BKL-1535 | 300 x 200 mm | 300 x 200 | 21 | 314 | $719.00 | View |
| LS-BKL-1548 | 250 x 250 mm | 250 x 250 | 24 | 285 | $739.00 | View |
