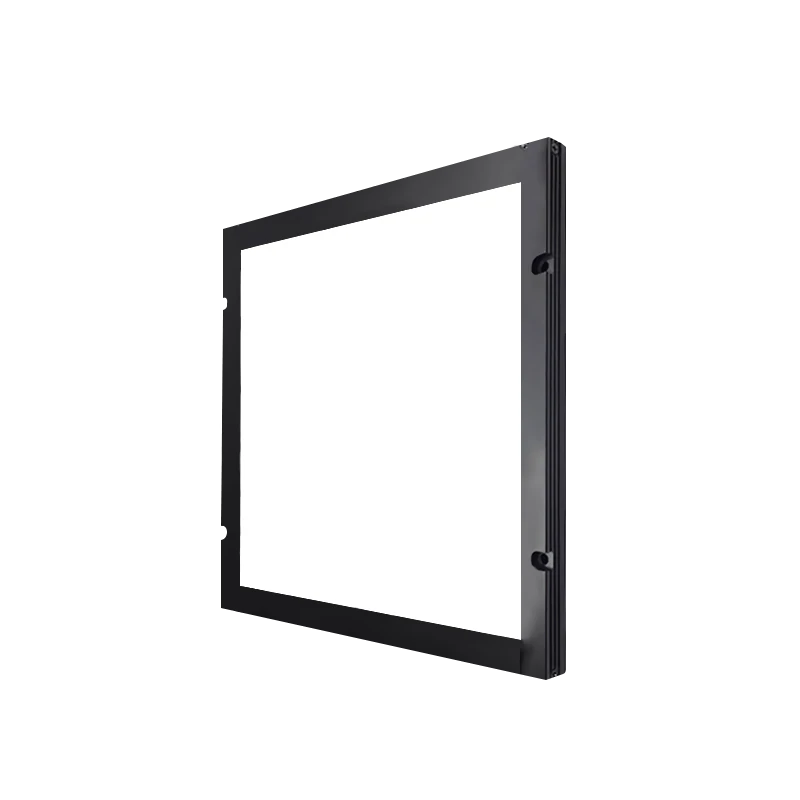

Ultra-thin flat light / side backlight (LS-BKL-S78)
- 6 models
- from $279.00
- Series LS-BKL-S78
The Ultra-thin flat light / side backlight (LS-BKL-S78) is a range of 6 backlights from LumaSpec Vision, from $279.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 100 x 100 mm, 150 x 150 mm, 200 x 200 mm, 250 x 250 mm, 300 x 300 mm
- Colour
- Blue, White
- Type
- Edge-lit / ultra-thin
- Voltage
- 24 V
- Connector
- 3-pin flat
Features
- 10.5 mm thickness
- Side-lit SMD LEDs
- Three-colour RGB light source, size and height, wavelength/colour temperature, mounting and input wire length customization
- Luminous size:100mm*100mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:30000 hours for red light and 30000 hours for white light.
- Suitable for high-precision detection such as contour detection, transparent body stain defect detection, etc.
Typical uses
- Glass scratch detection
- PCB board printing defect detection
- Reflective plane defect detection
- Sheet metal detection (white background with contrasting black edges)
All 6 models in the Ultra-thin flat light / side backlight (LS-BKL-S78)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-0682 | 100 x 100 mm | 24 | 100x100 | 135 | $279.00 | View |
| LS-BKL-0681 | 150 x 150 mm | 24 | 150x150 | 185 | $389.00 | View |
| LS-BKL-0683 | 150 x 150 mm | 24V | 150x150 | $389.00 | View | |
| LS-BKL-0684 | 200 x 200 mm | 24 | 200x200 | 235 | $539.00 | View |
| LS-BKL-0685 | 250 x 250 mm | 24 | 250x250 | 285 | $739.00 | View |
| LS-BKL-0686 | 300 x 300 mm | 24 | 300x300 | 335 | $949.00 | View |
