Backlights

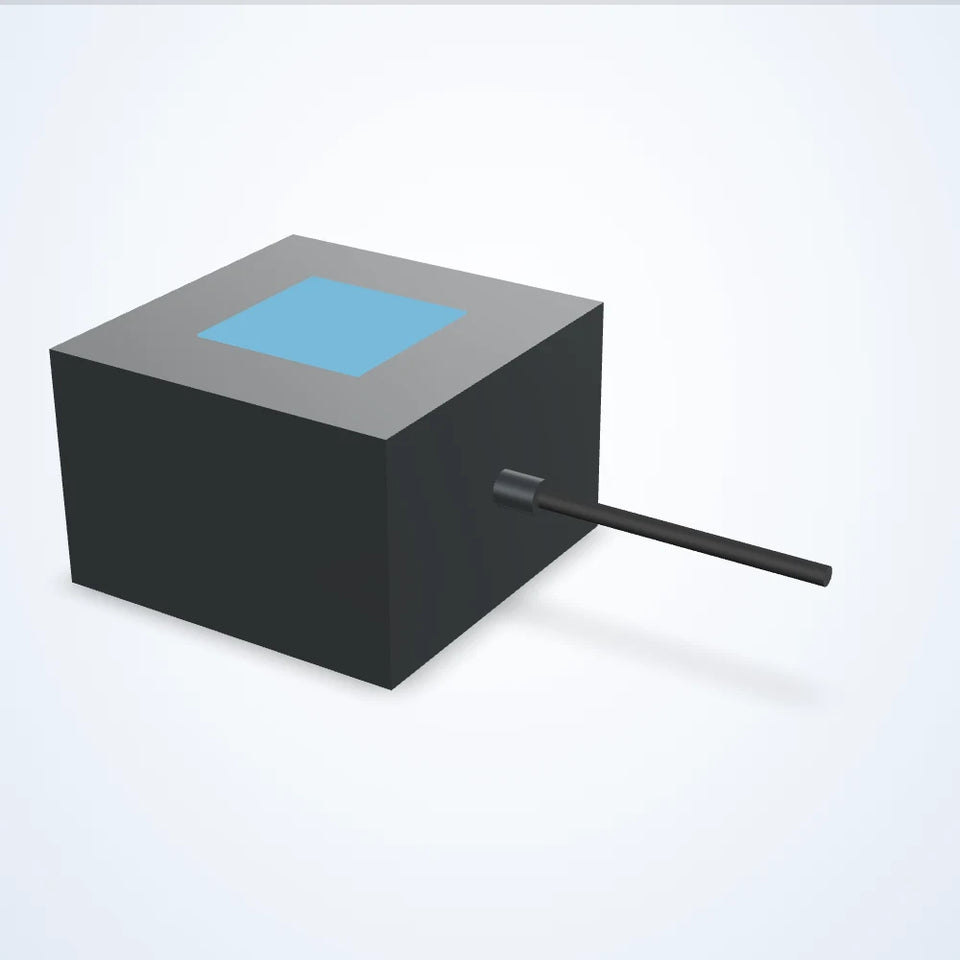

Backlight series, Flying Leads, IP50 (S09)
- 23 models
- from $589.00
- Series LS-BKL-S09
The Backlight series, Flying Leads, IP50 (S09) is a range of 23 backlights from LumaSpec Vision, from $589.00. It comes in 23 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 51.5 x 51.5 mm, 76.5 x 76.5 mm, 101.5 x 101.5 mm, 126.5 x 126.5 mm, 151.5 x 151.5 mm, 176.5 x 176.5 mm, 201.5 x 201.5 mm, 226.5 x 226.5 mm, 251.5 x 251.5 mm, 276.5 x 276.5 mm, 301.5 x 301.5 mm, 326.5 x 326.5 mm, 351.5 x 351.5 mm, 376.5 x 376.5 mm, 401.5 x 401.5 mm, 426.5 x 426.5 mm and 7 more
- Type
- Standard
- Voltage
- 24 V
- Colour
- Red, Green, Blue, White, Infrared
- Wavelength
- 730 nm, 850 nm, 940 nm
All 23 models in the Backlight series, Flying Leads, IP50 (S09)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-0144-L1 | 51.5 x 51.5 mm | 51.5 | 51.5 | 105.9 | $589.00quote | View |
| LS-BKL-0144-L2 | 76.5 x 76.5 mm | 76.5 | 76.5 | 130.9 | $679.00quote | View |
| LS-BKL-0144-L3 | 101.5 x 101.5 mm | 101.5 | 101.5 | 155.9 | $779.00quote | View |
| LS-BKL-0144-L4 | 126.5 x 126.5 mm | 126.5 | 126.5 | 180.9 | $879.00quote | View |
| LS-BKL-0144-L5 | 151.5 x 151.5 mm | 151.5 | 151.5 | 205.9 | $989.00quote | View |
| LS-BKL-0144-L6 | 176.5 x 176.5 mm | 176.5 | 176.5 | 230.9 | $1,089.00quote | View |
| LS-BKL-0144-L7 | 201.5 x 201.5 mm | 201.5 | 201.5 | 255.9 | $1,199.00quote | View |
| LS-BKL-0144-L8 | 226.5 x 226.5 mm | 226.5 | 226.5 | 280.9 | $1,309.00quote | View |
| LS-BKL-0144-L9 | 251.5 x 251.5 mm | 251.5 | 251.5 | 305.9 | $1,429.00quote | View |
| LS-BKL-0144-L10 | 276.5 x 276.5 mm | 276.5 | 276.5 | 330.9 | $1,549.00quote | View |
| LS-BKL-0144-L11 | 301.5 x 301.5 mm | 301.5 | 301.5 | 355.9 | $1,659.00quote | View |
| LS-BKL-0144-L12 | 326.5 x 326.5 mm | 326.5 | 326.5 | 380.9 | $1,789.00quote | View |
| LS-BKL-0144-L13 | 351.5 x 351.5 mm | 351.5 | 351.5 | 405.9 | $1,909.00quote | View |
| LS-BKL-0144-L14 | 376.5 x 376.5 mm | 376.5 | 376.5 | 430.9 | $2,039.00quote | View |
| LS-BKL-0144-L15 | 401.5 x 401.5 mm | 401.5 | 401.5 | 455.9 | $2,169.00quote | View |
| LS-BKL-0144-L16 | 426.5 x 426.5 mm | 426.5 | 426.5 | 480.9 | $2,299.00quote | View |
| LS-BKL-0144-L17 | 451.5 x 451.5 mm | 451.5 | 451.5 | 505.9 | $2,439.00quote | View |
| LS-BKL-0144-L18 | 476.5 x 476.5 mm | 476.5 | 476.5 | 530.9 | $2,579.00quote | View |
| LS-BKL-0144-L19 | 501.5 x 501.5 mm | 501.5 | 501.5 | 555.9 | $2,719.00quote | View |
| LS-BKL-0144-L20 | 526.5 x 526.5 mm | 526.5 | 526.5 | 580.9 | $2,829.00quote | View |
| LS-BKL-0144-L21 | 551.5 x 551.5 mm | 551.5 | 551.5 | 605.9 | $2,949.00quote | View |
| LS-BKL-0144-L22 | 576.5 x 576.5 mm | 576.5 | 576.5 | 630.9 | $3,059.00quote | View |
| LS-BKL-0144-L23 | 601.5 x 601.5 mm | 601.5 | 601.5 | 655.9 | $3,169.00quote | View |
