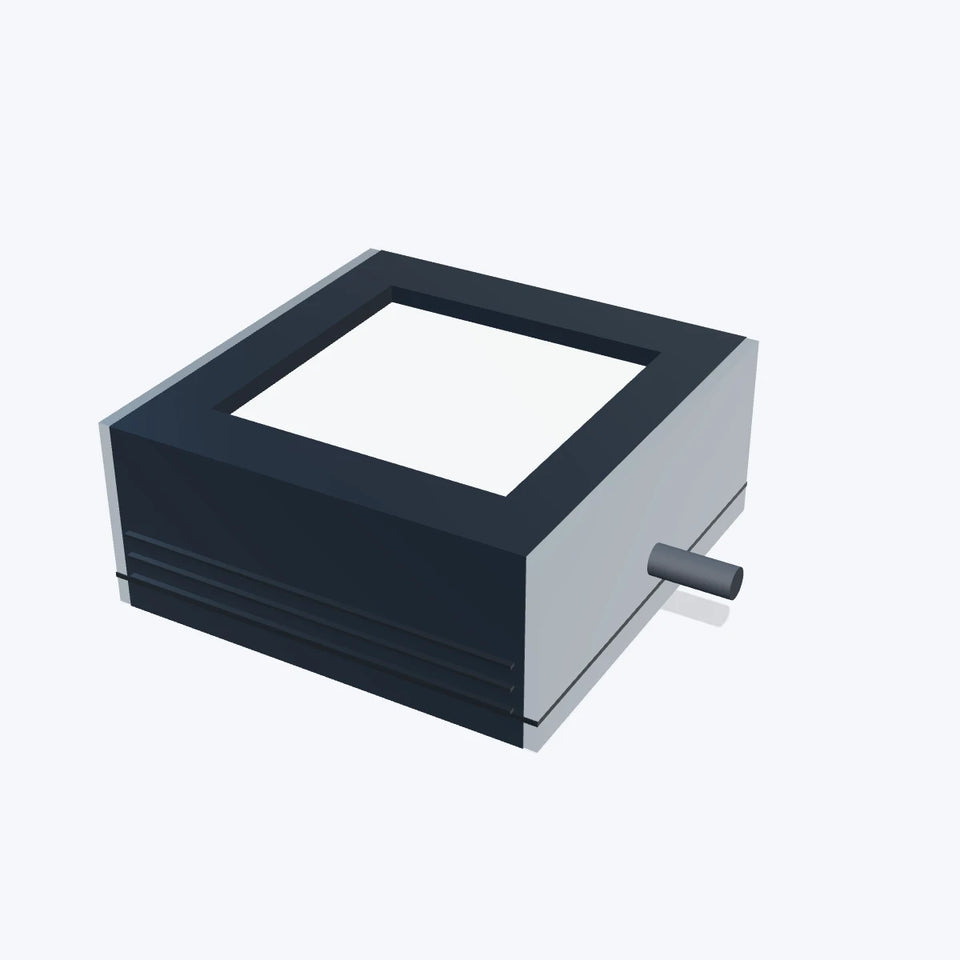

Collimated back light (LS-BKL-S100)
- 14 models
- from $139.00
- Series LS-BKL-S100
The Collimated back light (LS-BKL-S100) is a range of 14 backlights from LumaSpec Vision, from $139.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White
- Size
- Under 50 mm, 50-100 mm, 100-200 mm, 200-400 mm
- Type
- Collimated
- Voltage
- 24 V
Features
- Special parallel film design, simple structure, high effect
- Compact design, high efficiently use the eco-friendly material
- Import ultrathin paste LED used, high luminance, high uniformity
- Shell processed by high precision mould, shorten the difference between different batch
Typical uses
- Metal column contour measure
- Glass bottle diameter measure
- Ceramics column diameter measure
- Screw thread contour measure
All 14 models in the Collimated back light (LS-BKL-S100)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-1011 | 30 x 30 | 1.1W/1.1W | L44xW44xH19(mm) | 4-M3 depth 4 (reverse side) | $139.00 | View |
| LS-BKL-1012 | 50 x 50 | 2.2W/3.7W | L64xW64xH19(mm) | 6-M3 depth 4 (reverse side) | $149.00 | View |
| LS-BKL-1013 | 60 x 60 | 4.8W/4.8W | L74xW74xH19(mm) | 6-M3 depth 4 (reverse side) | $159.00 | View |
| LS-BKL-1014 | 70 x 70 | 4.8W/5.3W | L84xW84xH19(mm) | 6-M3 depth 4 (reverse side) | $159.00 | View |
| LS-BKL-1015 | 80 x 80 | 6.4W/8.0W | L94xW94xH19(mm) | 6-M3 depth 4 (reverse side) | $169.00 | View |
| LS-BKL-1016 | 90 x 90 | 6.4W/8.0W | L104xW104xH19(mm) | 6-M3 depth 4 (reverse side) | $179.00 | View |
| LS-BKL-1017 | 100 x 100 | 9.6W/11.1W | L114xW114xH19(mm) | 8-M3 depth 4 (reverse side) | $189.00 | View |
| LS-BKL-1018 | 120 | 11.1W/14.8W | L134xW134xH19(mm) | 8-M3 depth 4 (reverse side) | $219.00 | View |
| LS-BKL-1019 | 130 | 12.7W/15.9W | L144xW144xH19(mm) | 8-M3 depth 4 (reverse side) | $239.00 | View |
| LS-BKL-1020 | 140 x 140 | 12.7W/16.9W | L154xW154xH19(mm) | 8-M3 depth 4 (reverse side) | $249.00 | View |
| LS-BKL-1021 | 150 x 150 | 19.0W/23.8W | L164xW164xH19(mm) | 8-M3 depth 4 (reverse side) | $269.00 | View |
| LS-BKL-1022 | 160 x 160 | 19.0W/23.8W | L174xW174xH19(mm) | 8-M3 depth 4 (reverse side) | $289.00 | View |
| LS-BKL-1023 | 180 x 180 | 21.2W/26.4W | L194xW194xH19(mm) | 8-M3 depth 4 (reverse side) | $329.00 | View |
| LS-BKL-1024 | 200 x 200 | 25.4W/34.9W | L214xW214xH21.5(mm) | 10-M3 depth 4 (reverse side) | $379.00 | View |
