Backlights

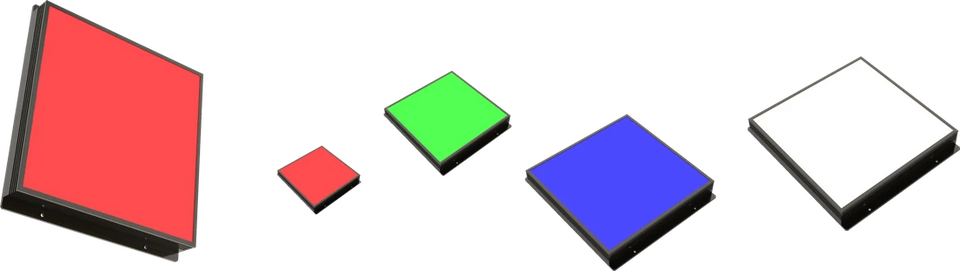

High Uniformity Back Light (LS-BKL-S121)
- 5 models
- from $259.00
- Series LS-BKL-S121
The High Uniformity Back Light (LS-BKL-S121) is a range of 5 backlights from LumaSpec Vision, from $259.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 50 x 50 mm, 110 x 110 mm, 240 x 160 mm, 430 x 350 mm, 550 x 400 mm
- Colour
- Red, Green, Blue, White
- Type
- Standard
- Voltage
- 24 V
Features
- Good uniformity, high brightness.
- Uniform illumination over a large area, with flexible and variable dimensions.
- High proportion of effective luminous surface, suitable for compact installation environments.
Typical uses
- Size measurement, contour inspection, metal burr detection, transparent object scratch detection, internal foreign object detection.
- Dice (or wheel) dimension inspection
- Metal plate dimension inspection
- Solar cell damage detection
- Automotive part dimension inspection
All 5 models in the High Uniformity Back Light (LS-BKL-S121)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-1259 | 50 x 50 mm | 50x50 | 85x59x30 | 3 | $259.00 | View |
| LS-BKL-1260 | 110 x 110 mm | 110x110 | 145x119x30 | 5.3 | $359.00 | View |
| LS-BKL-1261 | 240 x 160 mm | 240x160 | 269x169x30 | 15.8 | $659.00 | View |
| LS-BKL-1262 | 430 x 350 mm | 430x350 | 479x359x30 | 101.3 | $1,219.00 | View |
| LS-BKL-1263 | 550 x 400 mm | 550x400 | 579x409x30 | 150 | $1,669.00 | View |
