550 x 400 mm High-Uniformity LED Backlight (LS-BKL-1263)
Model LS-BKL-1263
- ColourRed, Green, Blue, White
- Emitting area550x400 mm
- Size579x409x30 mm
- Voltage24 V
- Power200 W
$1,669.00
Ships in 2-3 weeks
5.55 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?

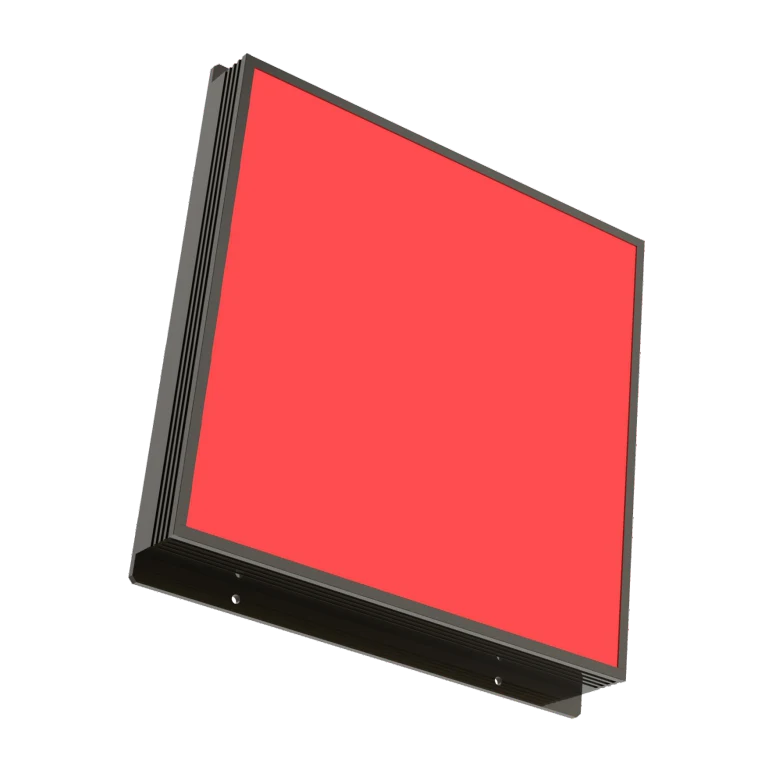

550 x 400 mm High-Uniformity LED Backlight. High-uniformity, high-brightness bottom-lit backlight with a high proportion of effective luminous surface, suited to compact installations; 30 mm thick.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1263 |
|---|---|
| Construction (setup diagram) | LED / housing / diffuser plate |
Light
| Emitting area (mm) | 550x400 |
|---|---|
| Colours | Red, Green, Blue, White |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 150 |
| Power W/B/G (W) | 200 |
Mechanical
| Outer size L x W x H (mm) | 579x409x30 |
|---|---|
| Thickness (mm) | 30 |
| Mounting | X-Φ3.5 holes |
| Shipping weight (estimated) | 5.55 kg |
Mounting and drawing data
drawing table (X-Φ3.5 holes, thickness 30): A=550, B=400, C=579, D=409, E=120/360, F=569
