240 x 160 mm High-Uniformity LED Backlight (LS-BKL-1261)
Model LS-BKL-1261
- ColourRed, Green, Blue, White
- Emitting area240x160 mm
- Size269x169x30 mm
- Voltage24 V
- Power24 W
$659.00
Ships in 2-3 weeks
1.35 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
240 x 160 mm High-Uniformity LED Backlight. High-uniformity, high-brightness bottom-lit backlight with a high proportion of effective luminous surface, suited to compact installations; 30 mm thick.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1261 |
|---|---|
| Construction (setup diagram) | LED / housing / diffuser plate |
Light
| Emitting area (mm) | 240x160 |
|---|---|
| Colours | Red, Green, Blue, White |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 15.8 |
| Power W/B/G (W) | 24 |
Mechanical
| Outer size L x W x H (mm) | 269x169x30 |
|---|---|
| Thickness (mm) | 30 |
| Mounting | X-Φ3.5 holes |
| Shipping weight (estimated) | 1.35 kg |

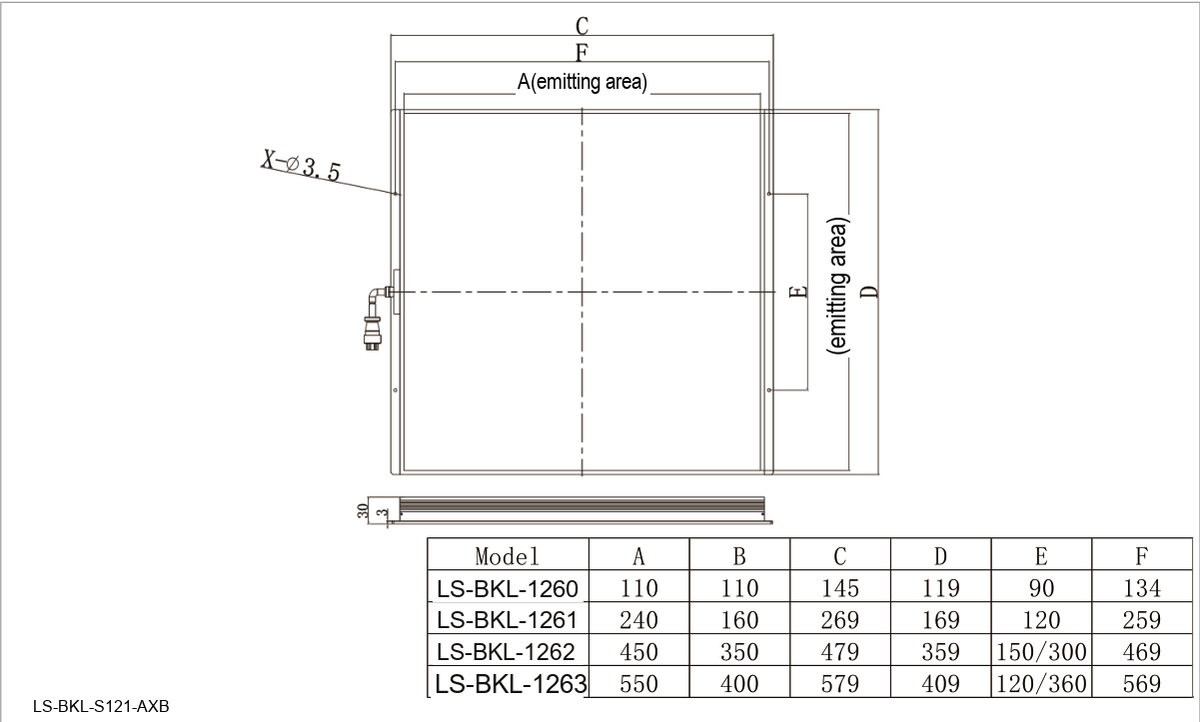

Mounting and drawing data
drawing table (X-Φ3.5 holes, thickness 30): A=240, B=160, C=269, D=169, E=120, F=259
Other models in the High Uniformity Back Light (LS-BKL-S121) series
See all 5 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-1259 | 50 x 50 mm | $259.00 | Ships in 2-3 weeks | View |
| LS-BKL-1260 | 110 x 110 mm | $359.00 | Ships in 2-3 weeks | View |
| LS-BKL-1262 | 430 x 350 mm | $1,219.00 | Ships in 2-3 weeks | View |
| LS-BKL-1263 | 550 x 400 mm | $1,669.00 | Ships in 2-3 weeks | View |
