Backlights

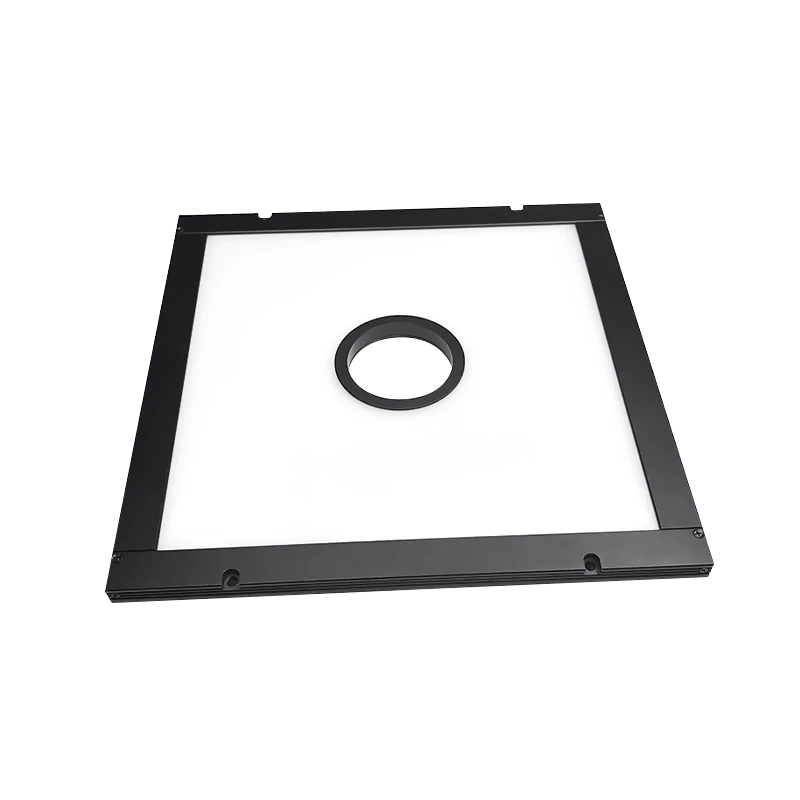

Hole side backlight (LS-BKL-S79)
- 4 models
- from $389.00
- Series LS-BKL-S79
The Hole side backlight (LS-BKL-S79) is a range of 4 backlights from LumaSpec Vision, from $389.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 150 x 150 mm, 200 x 200 mm, 250 x 250 mm, 300 x 300 mm
- Colour
- Blue, White
- Type
- With centre hole
- Voltage
- 24 V
- Connector
- 3-pin flat
Features
- Centre hole dia. 50 mm (remark: hole diameter 50)
- 10.5 mm thickness
- Three-colour RGB light source, size and height, wavelength/colour temperature, mounting and input wire length customization
- Luminous size:150mm*150mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:30000 hours for red light and 30000 hours for white light.
- Suitable for high-precision detection such as measurement of the four dimensions of the object,edge breakage detection and transparent object impurity detection,etc.
Typical uses
- Measurement of the four dimensions of the object
- Edge breakage detection
- Transparent object impurity detection
- Phone case edge detection
- Sole contour detection
All 4 models in the Hole side backlight (LS-BKL-S79)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-0687 | 150 x 150 mm | 185 | 150x150 | 10.1 | $389.00 | View |
| LS-BKL-0688 | 200 x 200 mm | 235 | 200x200 | 13.4 | $539.00 | View |
| LS-BKL-0689 | 250 x 250 mm | 285 | 250x250 | 16.8 | $739.00 | View |
| LS-BKL-0690 | 300 x 300 mm | 335 | 300x300 | 20.2 | $949.00 | View |
