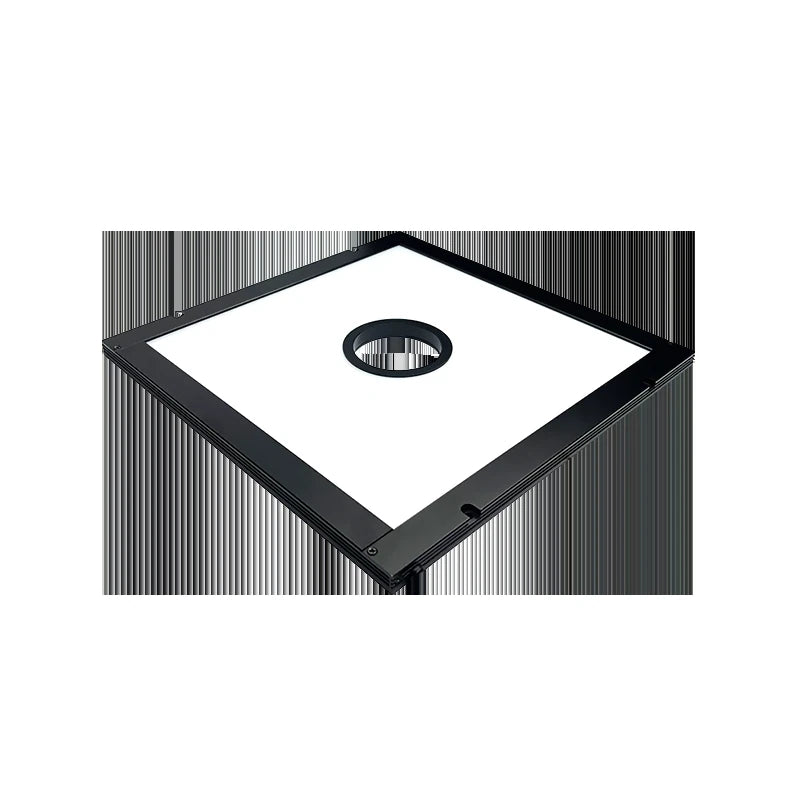

Representative photo of this series
Backlights
300 x 300 mm Hole side backlight (LS-BKL-0690)
Model LS-BKL-0690
- ColourBlue, White
- Voltage24 V
- TypeWith centre hole
- LED typeSMD
$949.00
Ships in 2-3 weeks
1.45 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Hole side backlight consists of uniformly distributed LED light-emitting units. Support customized color, wavelength, luminous size, etc.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0690 |
|---|---|
| Working life | white: 30000 hours, red: 30000 hours (the value varies according to the use environment) |
| Quality service | one year product warranty, technical support |

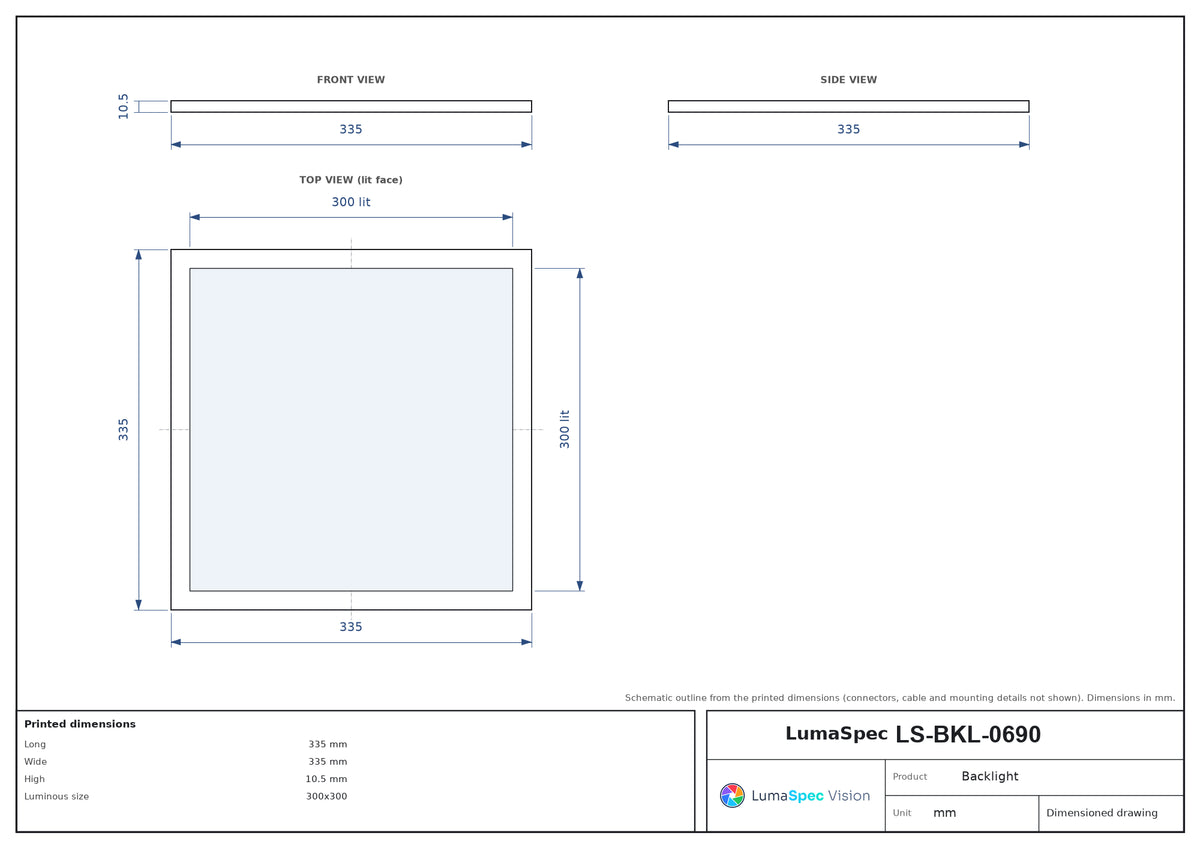

| Long (mm) | 335 |
| Wide (mm) | 335 |
| High (mm) | 10.5 |
| Remark | hole diameter 50 mm |
Light
| LED type | SMD |
|---|---|
| Luminous size (mm) | 300x300 |
| Wavelength blue | 460-470 nm |
| Colour temperature white | 6000-7500 K |
Environment and compliance
| Operating environment (indoor) | temperature 0~40 °C, humidity 20~85% (non condensing) |
|---|
Electrical
| Power tolerance | actual product power within ±10% of the table is the normal range |
|---|---|
| Voltage (V) | 24 |
| Power blue/white (W) | 20.2 |
Mechanical
| Hole diameter | 50 mm |
|---|---|
| Wire length | 500 mm (drawing) |
| Shipping weight | 1.45 kg |
Other models in the Hole side backlight (LS-BKL-S79) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0687 | 150 x 150 mm | $389.00 | Ships in 2-3 weeks | View |
| LS-BKL-0688 | 200 x 200 mm | $539.00 | Ships in 2-3 weeks | View |
| LS-BKL-0689 | 250 x 250 mm | $739.00 | Ships in 2-3 weeks | View |
