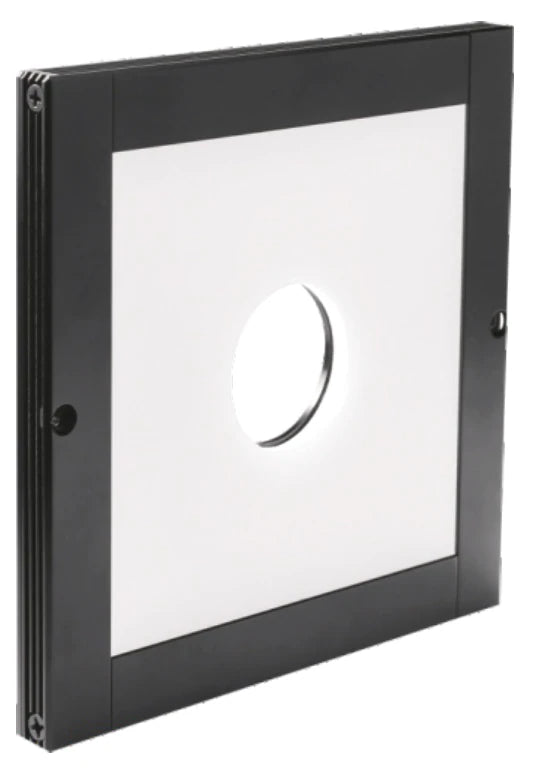

Opening side back light source (LS-BKL-S87)
- 12 models
- from $279.00
- Series LS-BKL-S87
The Opening side back light source (LS-BKL-S87) is a range of 12 backlights from LumaSpec Vision, from $279.00. It comes in 12 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 100 x 100 mm, 150 x 150 mm, 200 x 150 mm, 200 x 200 mm, 250 x 250 mm, 268 x 168 mm, 300 x 200 mm, 320 x 320 mm, 400 x 300 mm, 450 x 400 mm, 500 x 350 mm, 600 x 450 mm
- Colour
- Red, Green, Blue, White
- Type
- Edge-lit / ultra-thin
- Voltage
- 24 V
Features
- Multilateral lights make the overall uniformity
- Ultra-thin design, can meet different installation space requirements
- Flexible size, convenient customization, wide range of applications (square or round hole can be opened)
- Various installation methods for convenient mounting
Typical uses
- Ceramic surface pattern inspection
- Tablet appearance inspection
- Carton positioning
- Compressor surface defect inspection
- Key character recognition of remote controls
- LED substrate inspection
All 12 models in the Opening side back light source (LS-BKL-S87)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-0795 | 100 x 100 mm | 100 x 100 | 10.5 | 132 | $279.00 | View |
| LS-BKL-0796 | 150 x 150 mm | 150 x 150 | 10.5 | 182 | $389.00 | View |
| LS-BKL-0797 | 200 x 150 mm | 200 x 150 | 10.5 | 232 | $449.00 | View |
| LS-BKL-0798 | 200 x 200 mm | 200 x 200 | 10.5 | 232 | $539.00 | View |
| LS-BKL-0800 | 268 x 168 mm | 268 x 168 | 10.5 | 300 | $589.00 | View |
| LS-BKL-0801 | 300 x 200 mm | 300 x 200 | 10.5 | 332 | $719.00 | View |
| LS-BKL-0799 | 250 x 250 mm | 250 x 250 | 10.5 | 282 | $739.00 | View |
| LS-BKL-0802 | 320 x 320 mm | 320 x 320 | 10.5 | 352 | $1,049.00 | View |
| LS-BKL-0805 | 500 x 350 mm | 500 x 350 | 10.5 | 532 | $1,109.00 | View |
| LS-BKL-0804 | 450 x 400 mm | 450 x 400 | 10.5 | 482 | $1,139.00 | View |
| LS-BKL-0803 | 400 x 300 mm | 400 x 300 | 10.5 | 432 | $1,179.00 | View |
| LS-BKL-0806 | 600 x 450 mm | 600 x 450 | 11.5 | 632 | $1,619.00 | View |
