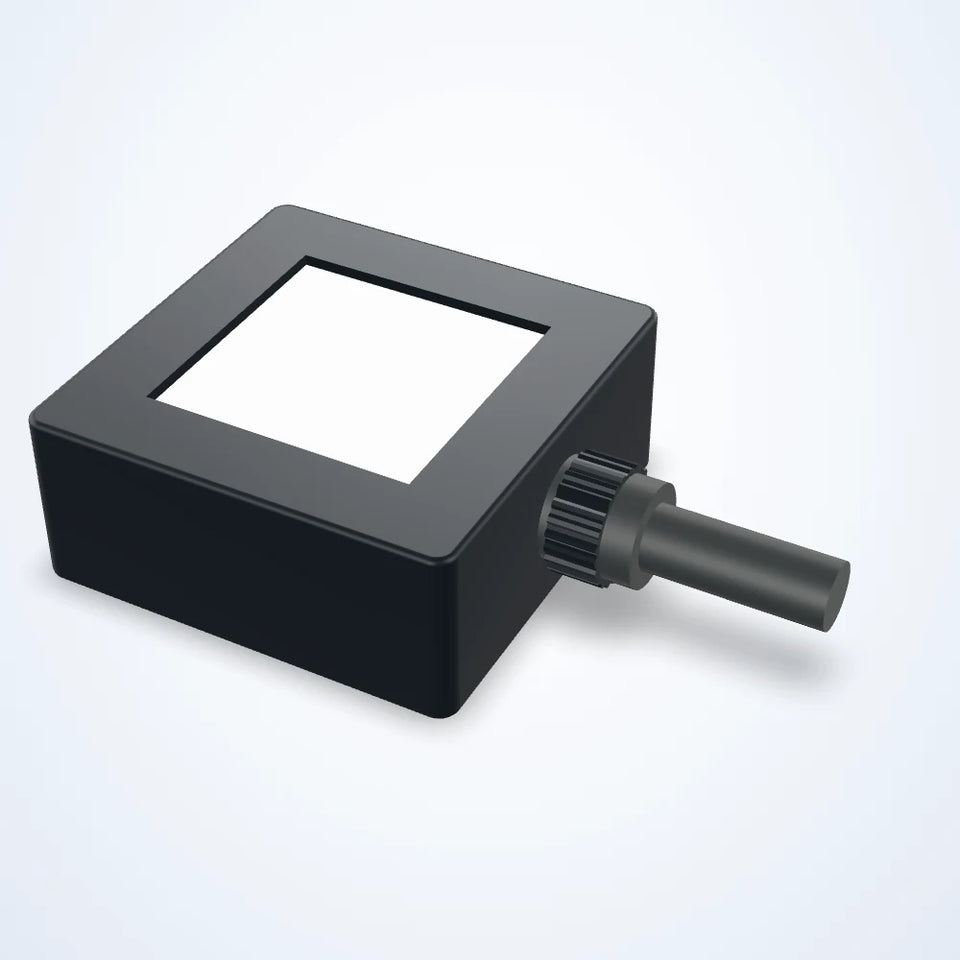

Bottom-lit flat backlights (LS-BKL-S103)
- 20 models
- from $86.00
- Series LS-BKL-S103
The Bottom-lit flat backlights (LS-BKL-S103) is a range of 20 backlights from LumaSpec Vision, from $86.00. It comes in 20 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 27 x 27 mm, 43 x 35 mm, 50 x 50 mm, 63 x 60 mm, 83 x 75 mm, 100 x 100 mm, 140 x 105 mm, 160 x 120 mm, 200 x 150 mm, 200 x 50 mm, 211 x 200 mm, 224 x 170 mm, 250 x 150 mm, 250 x 250 mm, 300 x 200 mm, 400 x 300 mm and 4 more
- Colour
- Red, Green, Blue, White, Infrared, UV
- Type
- Standard
- Voltage
- 24 V
- Wavelength
- 940 nm
All 20 models in the Bottom-lit flat backlights (LS-BKL-S103)
| Link | ||||
|---|---|---|---|---|
| LS-BKL-1050 | 27 x 27 mm | 27 x 27 | from $86.00 | View |
| LS-BKL-1051 | 43 x 35 mm | 43 x 35 | from $86.00 | View |
| LS-BKL-1053 | 63 x 60 mm | 63 x 60 | from $96.00 | View |
| LS-BKL-1054 | 83 x 75 mm | 83 x 75 | from $160.00 | View |
| LS-BKL-1056 | 100 x 100 mm | 100 x 100 | from $170.00 | View |
| LS-BKL-1052 | 50 x 50 mm | 50 x 50 | from $170.00 | View |
| LS-BKL-1057 | 140 x 105 mm | 140 x 105 | from $270.00 | View |
| LS-BKL-1058 | 160 x 120 mm | 160 x 120 | from $325.00 | View |
| LS-BKL-1055 | 200 x 50 mm | 200 x 50 | from $375.00 | View |
| LS-BKL-1059 | 200 x 150 mm | 200 x 150 | from $449.00 | View |
| LS-BKL-1062 | 250 x 150 mm | 250 x 150 | from $535.00 | View |
| LS-BKL-1063 | 250 x 250 mm | 250 x 250 | from $535.00 | View |
| LS-BKL-1061 | 224 x 170 mm | 224 x 170 | from $558.00 | View |
| LS-BKL-1060 | 211 x 200 mm | 211 x 200 | from $580.00 | View |
| LS-BKL-1064 | 300 x 200 mm | 300 x 200 | from $588.00 | View |
| LS-BKL-1065 | 400 x 300 mm | 400 x 300 | from $855.00 | View |
| LS-BKL-1066 | 400 x 350 mm | 400 x 350 | from $855.00 | View |
| LS-BKL-1067 | 500 x 400 mm | 500 x 400 | from $980.00 | View |
| LS-BKL-1068 | 500 x 500 mm | 500 x 500 | from $980.00 | View |
| LS-BKL-1069 | 600 x 400 mm | 600 x 400 | from $1,180.00 | View |
