Backlights

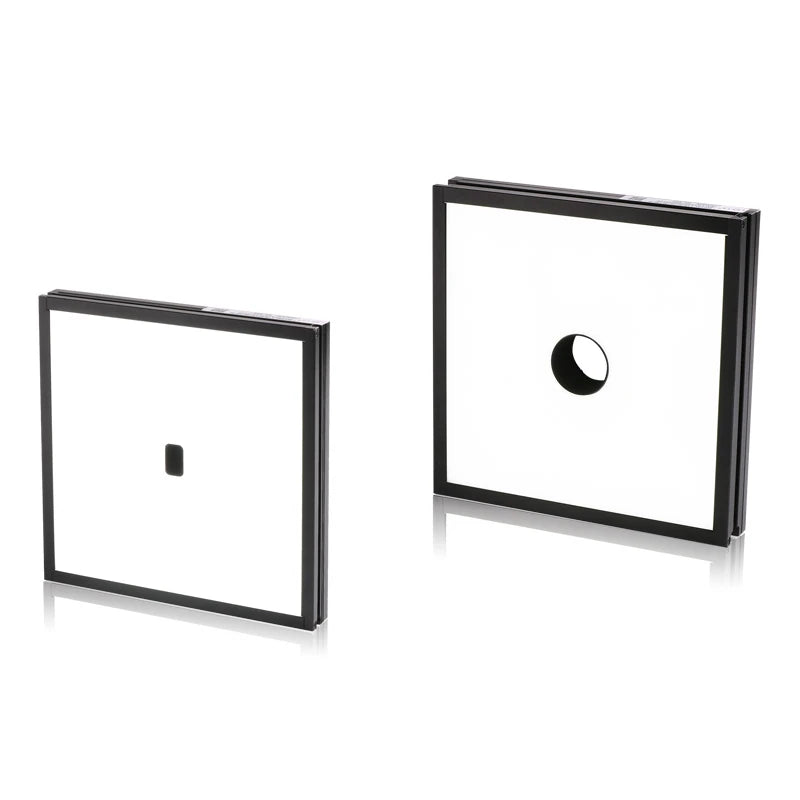

Ring back light (LS-BKL-S95)
- 15 models
- from $199.00
- Series LS-BKL-S95
The Ring back light (LS-BKL-S95) is a range of 15 backlights from LumaSpec Vision, from $199.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White
- Size
- 100-200 mm, 200-400 mm, 400 mm +
- Type
- Standard
- Voltage
- 24 V
Features
- High-density LED distribute to the bottom of the light
- High uniformity, high luminance
- Diverse dimension for reference, used to various applications
- Emitting area and the center hole can be customized
Typical uses
- Boundary dimension measurement
- Damaged edge inspection
- Transparency impurity inspection
- Oral liquid level height inspection
All 15 models in the Ring back light (LS-BKL-S95)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-0949 | 100 x 100 | 6.4W/8.5W | L117xW117xH27(mm) | 1: +, 2: NC, 3: - | $199.00 | View |
| LS-BKL-0950 | 110 x 110 | 9.8W/12.3W | L127W127xH23(mm) | 1: +, 2: NC, 3: - | $209.00 | View |
| LS-BKL-0951 | 150 x 100 | 11.9W/14.8W | L167xW117xH25(mm) | 1: +, 2: NC, 3: - | $229.00 | View |
| LS-BKL-0952 | 150 x 150 | 15.9W/20.1W | L167xW167xH27(mm) | 1: +, 2: NC, 3: - | $279.00 | View |
| LS-BKL-0953 | 200 x 200 | 25.4W/31.7W | L217xW217xH27(mm) | 1: +, 2: NC, 3: - | $389.00 | View |
| LS-BKL-0954 | 33.9W/42.2W | L237xW237xH27(mm) | $449.00 | View | ||
| LS-BKL-0955 | 52.6W/65.9W | L317xW217xH25(mm) | $509.00 | View | ||
| LS-BKL-0956 | 300 x 300 | 58.1W/73.4W | L317xW317xH27(mm) | 1: +, 2: -, 3: NC, 4: NC | $679.00 | View |
| LS-BKL-0957 | 350 x 300 | 57.1W/70.8W | L367W317xH27(mm) | 1: +, 2: -, 3: NC, 4: NC | $759.00 | View |
| LS-BKL-0958 | 400 x 300 | 65.5W/82.4W | L417xW317xH27(mm) | 1: +, 2: -, 3: NC, 4: NC | $839.00 | View |
| LS-BKL-0959 | 400 x 400 | 82.6W/103.5W | L417xW417xH30(mm) | 1: +, 2: -, 3: NC, 4: NC | $1,059.00 | View |
| LS-BKL-0960 | 500 x 400 | 126.8W/158.4W | L517xW417xH30(mm) | 1: +, 2: -, 3: NC, 4: NC | $1,279.00 | View |
| LS-BKL-0961 | 500 x 500 | 82.1W/102.3W | L517xW517xH31(mm) | 1: +, 2: -, 3: NC, 4: NC | $1,549.00 | View |
| LS-BKL-0962 | 600 x 600 | 184.4W/231.9W | L617xW617xH51(mm) | 1: +, 2: -, 3: NC, 4: NC | $2,149.00 | View |
| LS-BKL-0963 | 1000 x 700 | 363.6W/390.0W | L1017xW717xH51(mm) | 1: +, 2: -, 3: NC, 4: NC | $3,999.00 | View |
