Backlights

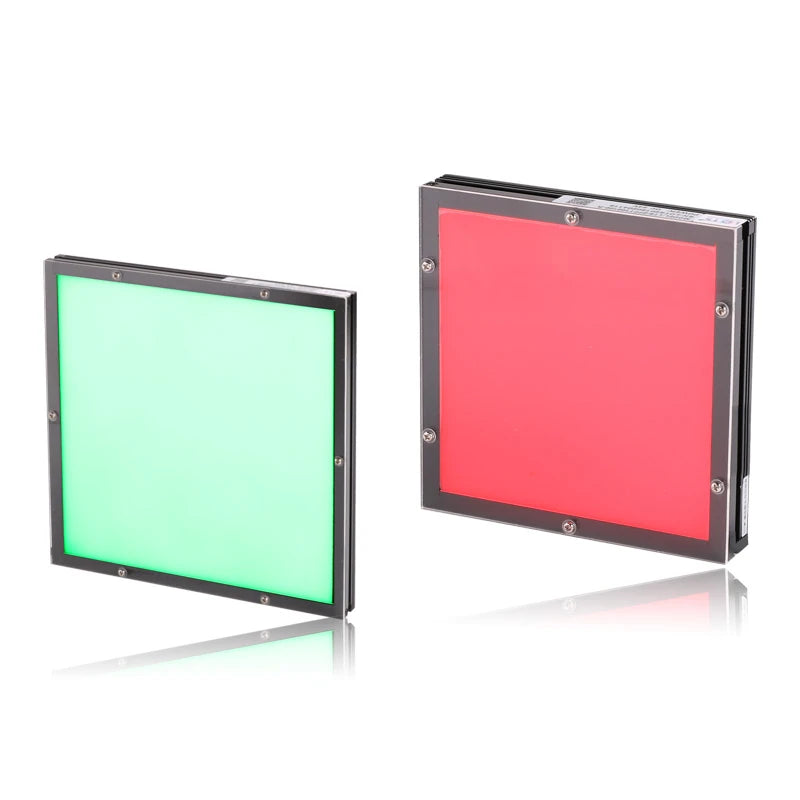

Collimated back light (LS-BKL-S96)
- 9 models
- from $149.00
- Series LS-BKL-S96
The Collimated back light (LS-BKL-S96) is a range of 9 backlights from LumaSpec Vision, from $149.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White
- Size
- 50-100 mm, 100-200 mm
- Type
- Collimated
- Voltage
- 24 V
Features
- Special parallel film design, simple structure, high effect
- Compact design, high efficiently use the eco-friendly material
- Import ultrathin paste LED used, high luminance, high uniformity
- Shell processed by high precision mould, shorten the difference between different batch
Typical uses
- Metal column contour measure
- Glass bottle diameter measure
- Ceramics column diameter measure
- Screw thread contour measure
All 9 models in the Collimated back light (LS-BKL-S96)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-0964 | 50 | 2.9W/3.6W | L67xW67xH25(mm) | $149.00 | View | |
| LS-BKL-0965 | 60 x 60 | 4.4W/5.4W | L77xW77xH25(mm) | 4-M3 depth 4 (reverse side) | $159.00 | View |
| LS-BKL-0966 | 70 x 70 | 5.8W/6.5W | L87xW87xH25(mm) | 4-M3 depth 4 (reverse side) | $169.00 | View |
| LS-BKL-0967 | 80 x 80 | 6.5W/8.7W | L97xW97xH25(mm) | 4-M3 depth 4 | $179.00 | View |
| LS-BKL-0968 | 100 x 100 | 11.6W/14.4W | L117xW117xH25(mm) | 4-M3 depth 4 (reverse side) | $199.00 | View |
| LS-BKL-0969 | 110 | 13.0W/16.2W | L127xW127xH25(mm) | 4-M3 depth 4 (reverse side) | $209.00 | View |
| LS-BKL-0970 | 120 x 120 | 13.0W/16.2W | L137xW137xH25(mm) | 4-M3 depth 4 (reverse side) | $229.00 | View |
| LS-BKL-0971 | 130 x 130 | 15.9W/19.8W | L147xW147xH25(mm) | 4-M3 depth 4 (reverse side) | $239.00 | View |
| LS-BKL-0972 | 150 x 150 | 17.3W/28.1W | L167xW167xH25(mm) | 4-M3 depth 4 (reverse side) | $279.00 | View |
