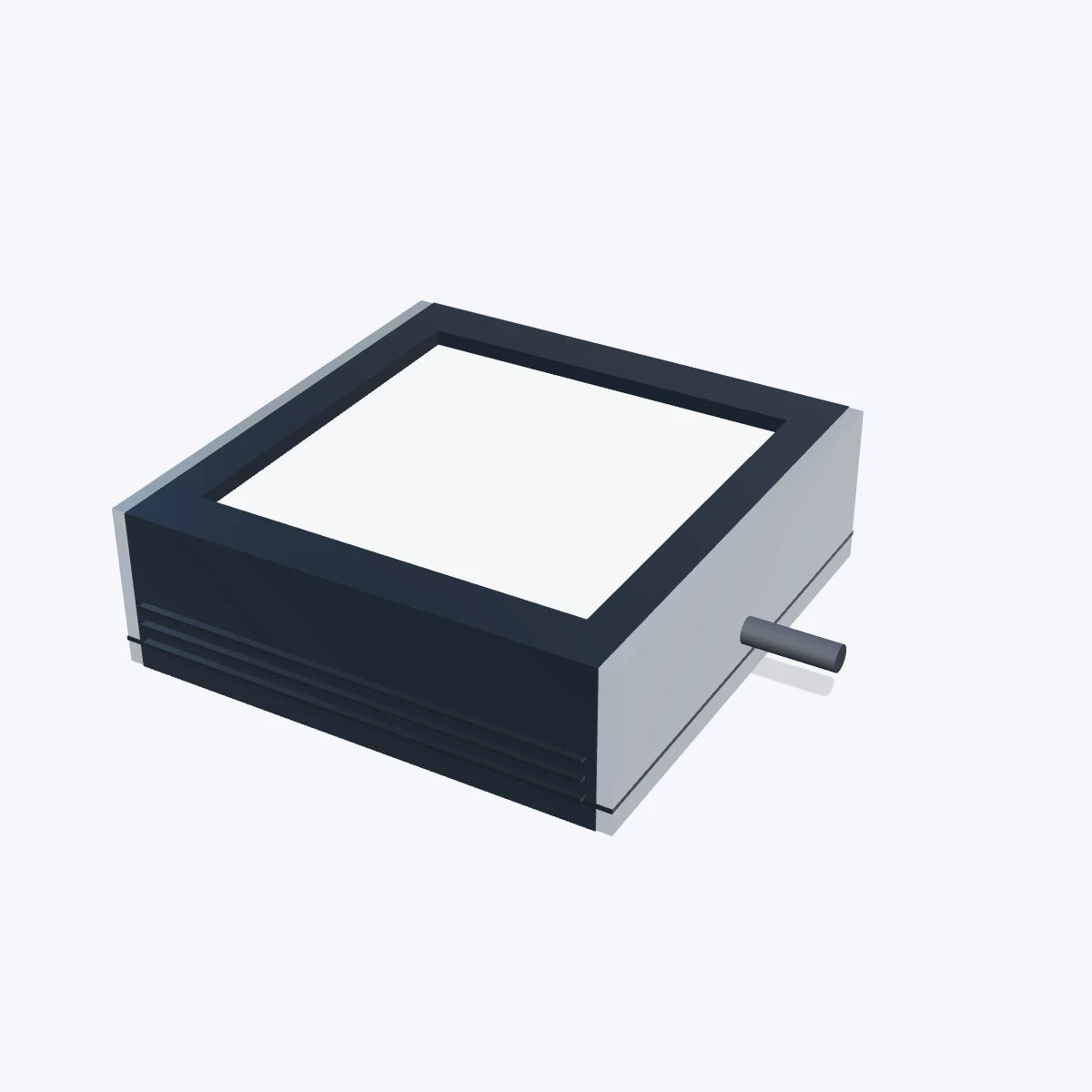

Dimension-based illustration. Housing dimensions follow this model's printed specifications; LED layout, cable position, finish and light colour are representative.
Backlights
Collimated back light, 77 x 77 x 25 mm (LS-BKL-0965)
Model LS-BKL-0965
- ColourRed, Blue, Green, White
- Emitting area60 x 60 mm
- SizeL77xW77xH25(mm)
- Voltage24V
- Power4.4W/5.4W
$159.00
Ships in 2-3 weeks
0.35 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Special parallel film design, simple structure, high effect. Compact design, high efficiently use the eco-friendly material. Import ultrathin paste LED used, high luminance, high uniformity.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0965 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|---|

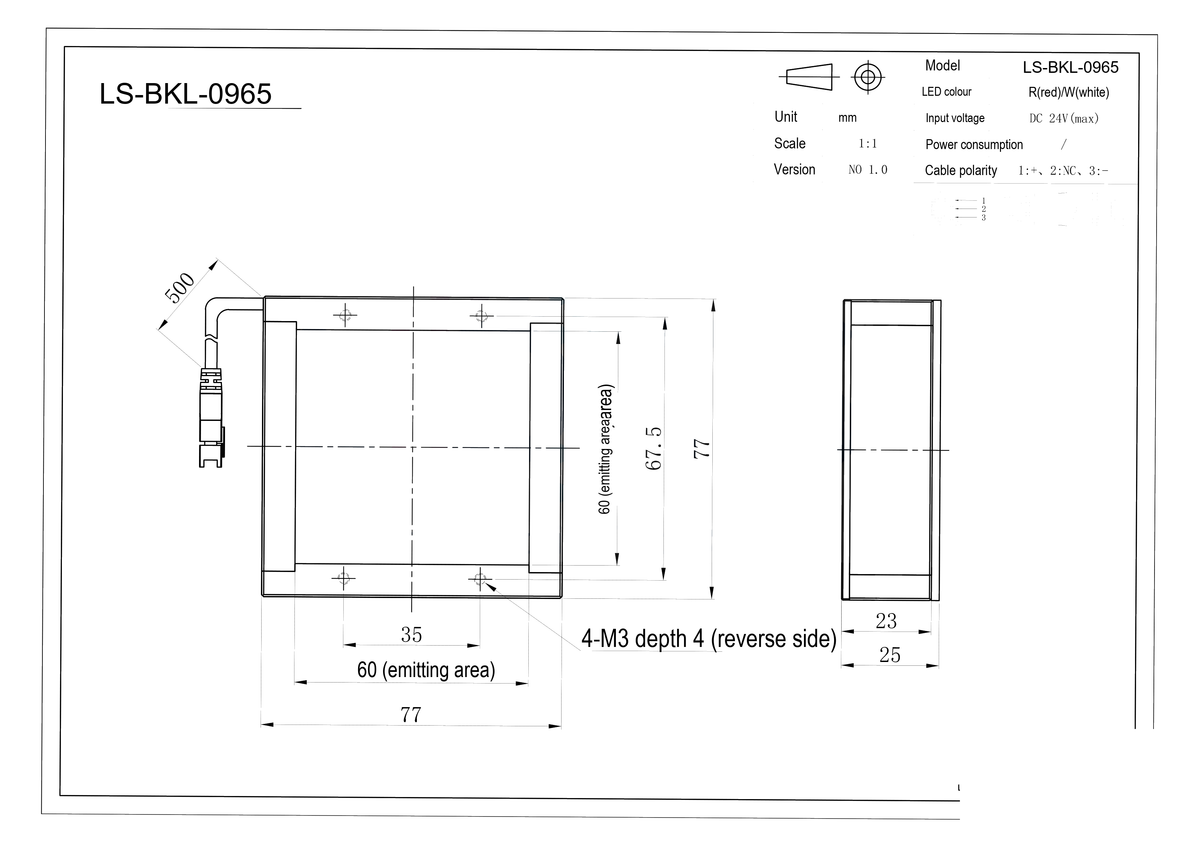

| Cable (mm) | 500 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 60 x 60 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 4.4W/5.4W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L77xW77xH25(mm) |
|---|---|
| Mounting holes | 4-M3 depth 4 (reverse side) |
| Shipping weight | 0.35 kg |
Other models in the Collimated back light (LS-BKL-S96) series
See all 9 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0964 | Red, Blue, Green, White · 50 mm | $149.00 | Ships in 2-3 weeks | View |
| LS-BKL-0966 | Red, Blue, Green, White · 70 x 70 mm | $169.00 | Ships in 2-3 weeks | View |
| LS-BKL-0967 | Red, Blue, Green, White · 80 x 80 mm | $179.00 | Ships in 2-3 weeks | View |
| LS-BKL-0968 | Red, Blue, Green, White · 100 x 100 mm | $199.00 | Ships in 2-3 weeks | View |
| LS-BKL-0969 | Red, Blue, Green, White · 110 mm | $209.00 | Ships in 2-3 weeks | View |
| LS-BKL-0970 | Red, Blue, Green, White · 120 x 120 mm | $229.00 | Ships in 2-3 weeks | View |
| LS-BKL-0971 | Red, Blue, Green, White · 130 x 130 mm | $239.00 | Ships in 2-3 weeks | View |
| LS-BKL-0972 | Red, Blue, Green, White · 150 x 150 mm | $279.00 | Ships in 2-3 weeks | View |
