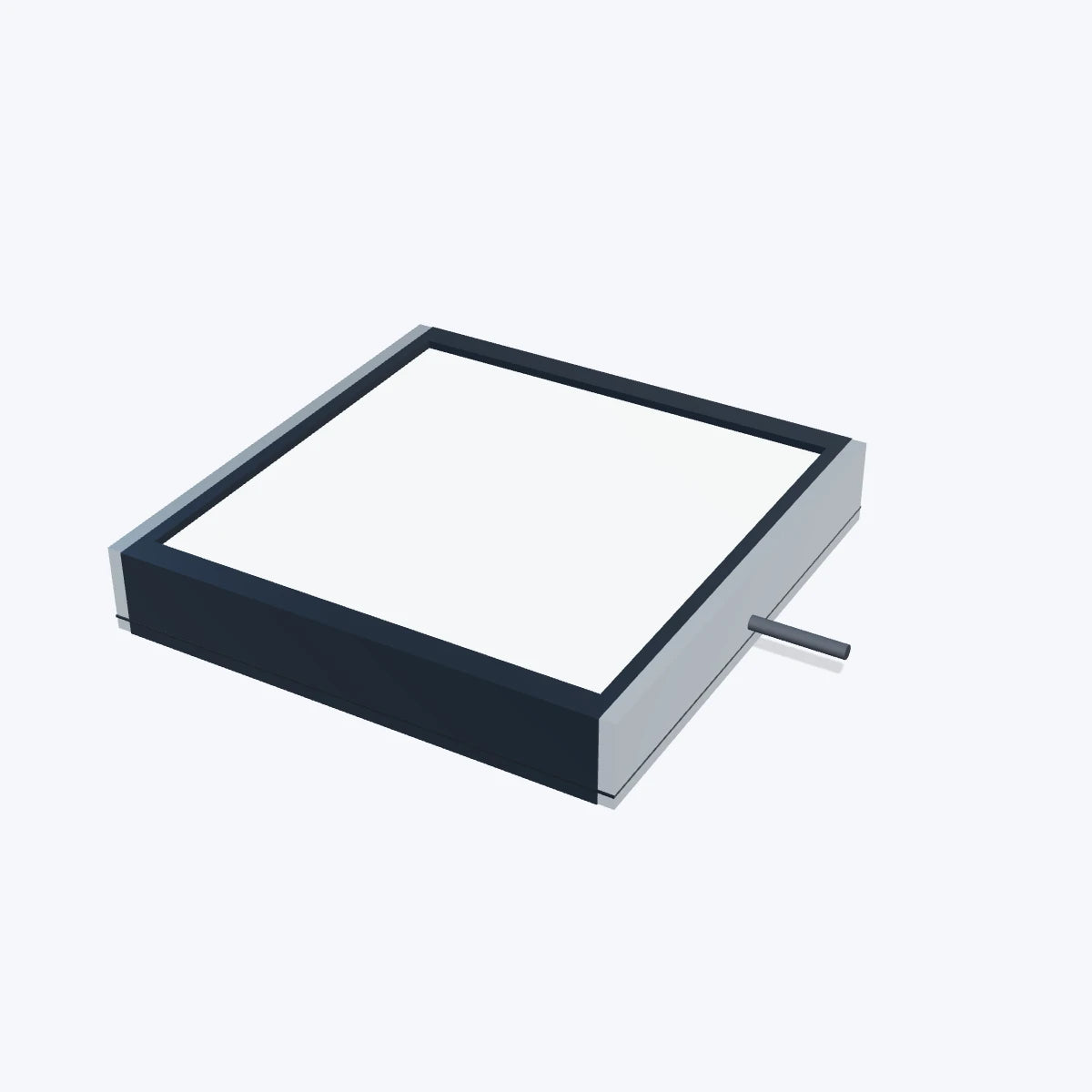

LS-BKL-0971 — Backlights. Dimension-based illustration; details and finish are representative.
  • LS-BKL-0971 — Backlights. Dimension-based illustration; details and finish are representative.

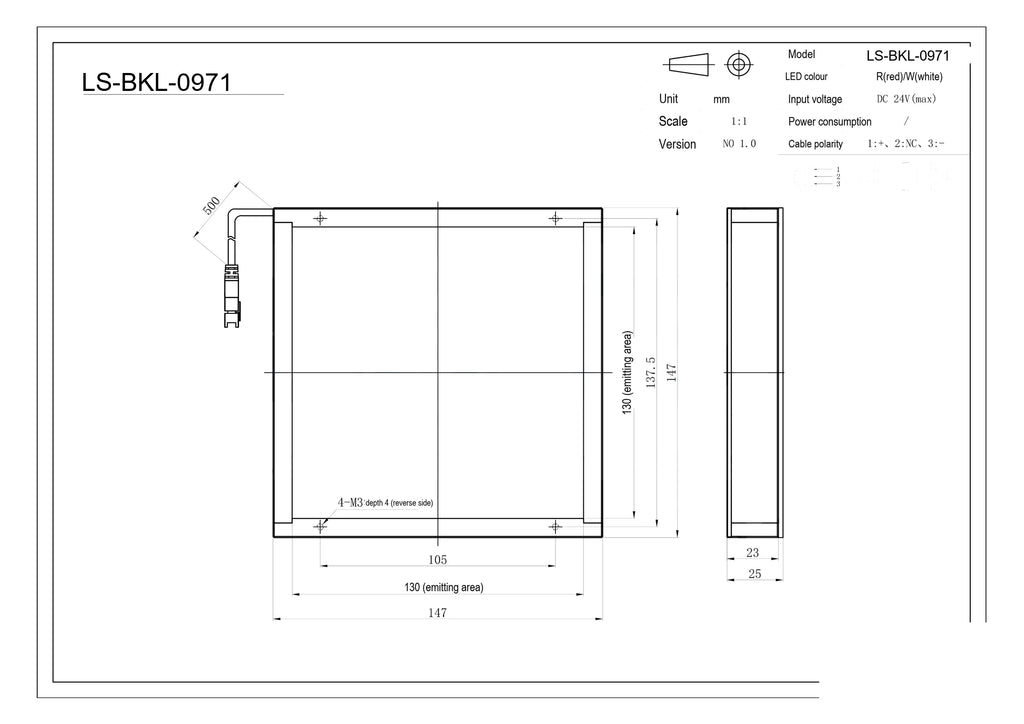

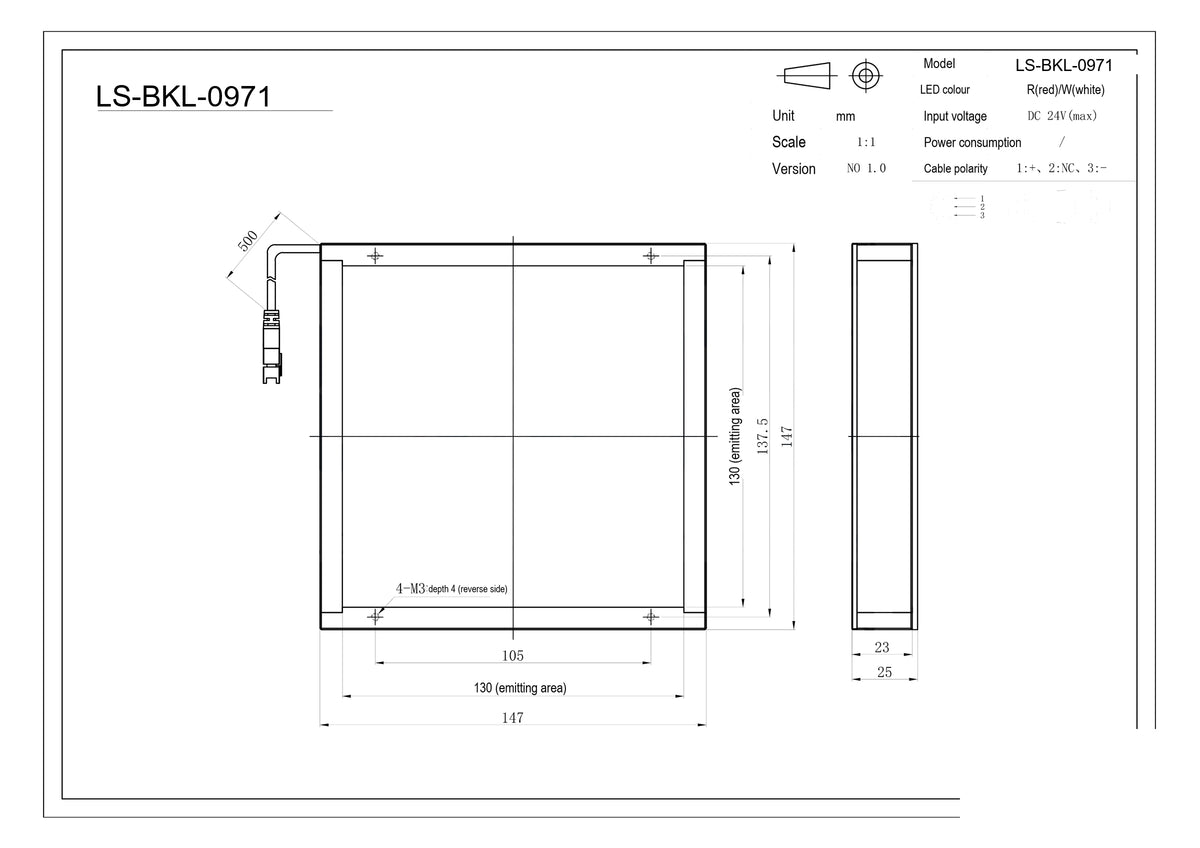

  • LS-BKL-0971 dimensions (mm)

Dimension-based illustration. Housing dimensions follow this model's printed specifications; LED layout, cable position, finish and light colour are representative.

Backlights

Collimated back light, 147 x 147 x 25 mm (LS-BKL-0971)

Model LS-BKL-0971

  • ColourRed, Blue, Green, White
  • Emitting area130 x 130 mm
  • SizeL147xW147xH25(mm)
  • Voltage24V
  • Power15.9W/19.8W
$239.00

Ships in 2-3 weeks

0.75 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Collimated back light, 147 x 147 x 25 mm (LS-BKL-0971)LS-BKL-0971

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Special parallel film design, simple structure, high effect. Compact design, high efficiently use the eco-friendly material. Import ultrathin paste LED used, high luminance, high uniformity.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-0971
NoteUV & IR light can be customized as required.

Interfaces and I/O

Cable polarity1: +, 2: NC, 3: -

Light

LED colourR(red)/W(white)
Emitting surface (mm)130 x 130

Electrical

Voltage24V
Power15.9W/19.8W
Input voltageDC 24V (max)

Mechanical

DimensionL147xW147xH25(mm)
Mounting holes4-M3 depth 4 (reverse side)
Shipping weight0.75 kg
