Backlights

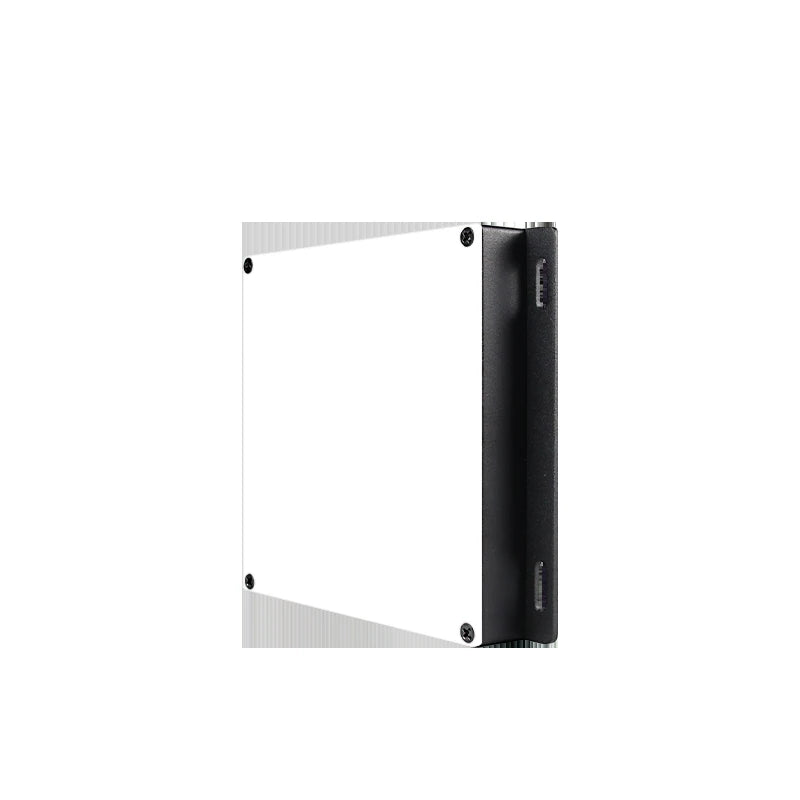

Collimated backlight (LS-BKL-S92)
- 24 models
- from $199.00
- Series LS-BKL-S92
The Collimated backlight (LS-BKL-S92) is a range of 24 backlights from LumaSpec Vision, from $199.00. It comes in 24 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 29 x 29 mm, 50 x 50 mm, 60 x 60 mm, 70 x 70 mm, 80 x 80 mm, 90 x 90 mm, 100 x 100 mm, 120 x 120 mm, 150 x 150 mm, 180 x 180 mm, 200 x 100 mm, 200 x 150 mm, 200 x 200 mm, 250 x 200 mm, 250 x 250 mm, 300 x 150 mm and 8 more
- Colour
- Red, Blue, White
- Type
- Collimated
- Voltage
- 24 V
- Connector
- SM3
Features
- Collimated (parallel) backlight for sharp edges in measurement
- Four-sided M3 nut grooves and bottom side installation
- Three-colour RGB light source, size and height, wavelength/colour temperature, mounting and input wire length customization
- SM3 (1.3 pin) interface
- Luminous size:100mm*100mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:50000 hours for red light and 30000 hours for white light.
- Suitable for defect detection, size measurement, complex surface detection, positioning and alignment of transparent/translucent materials.
Typical uses
- Metal cylinder profile measurement
- Glass bottle diameter measurement
- Large-area circuit board component detection and identification
- Dimension measurement of metal parts
- Wafer surface defect detection
All 24 models in the Collimated backlight (LS-BKL-S92)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-0906 | 29 x 29 mm | 16.5 | 44 | 29x29 | $199.00 | View |
| LS-BKL-0907 | 50 x 50 mm | 22.5 | 80 | 50x50 | $209.00 | View |
| LS-BKL-0908 | 60 x 60 mm | 22.5 | 90 | 60x60 | $219.00 | View |
| LS-BKL-0909 | 70 x 70 mm | 22.5 | 100 | 70x70 | $229.00 | View |
| LS-BKL-0910 | 80 x 80 mm | 22.5 | 110 | 80x80 | $249.00 | View |
| LS-BKL-0911 | 90 x 90 mm | 22.5 | 120 | 90x90 | $259.00 | View |
| LS-BKL-0912 | 100 x 100 mm | 22.5 | 130 | 100*100 | $279.00 | View |
| LS-BKL-0913 | 120 x 120 mm | 22.5 | 150 | 120x120 | $309.00 | View |
| LS-BKL-0916 | 200 x 100 mm | 23.5 | 214 | 200x100 | $369.00 | View |
| LS-BKL-0914 | 150 x 150 mm | 22.5 | 185 | 150x150 | $389.00 | View |
| LS-BKL-0917 | 200 x 150 mm | 23.5 | 214 | 200x150 | $459.00 | View |
| LS-BKL-0915 | 180 x 180 mm | 23.5 | 194 | 180x180 | $479.00 | View |
| LS-BKL-0918 | 200 x 200 mm | 23.5 | 214 | 200x200 | $549.00 | View |
| LS-BKL-0921 | 300 x 150 mm | 23.5 | 314 | 300x150 | $599.00 | View |
| LS-BKL-0919 | 250 x 200 mm | 23.5 | 264 | 250x200 | $639.00 | View |
| LS-BKL-0922 | 300 x 200 mm | 23.5 | 314 | 300x200 | $729.00 | View |
| LS-BKL-0920 | 250 x 250 mm | 23.5 | 264 | 250x250 | $739.00 | View |
| LS-BKL-0926 | 400 x 200 mm | 23.5 | 414 | 400x200 | $889.00 | View |
| LS-BKL-0924 | 350 x 250 mm | 23.5 | 364 | 350x250 | $939.00 | View |
| LS-BKL-0923 | 300 x 300 mm | 23.5 | 314 | 300x300 | $959.00 | View |
| LS-BKL-0928 | 400 x 400 mm | 23.5 | 434 | 400x400 | $1,049.00 | View |
| LS-BKL-0927 | 400 x 300 mm | 23.5 | 434 | 400x300 | $1,199.00 | View |
| LS-BKL-0925 | 350 x 350 mm | 23.5 | 364 | 350x350 | $1,219.00 | View |
| LS-BKL-0929 | 450 x 300 mm | 23.5 | 464 | 450x300 | $1,309.00 | View |
