Backlights

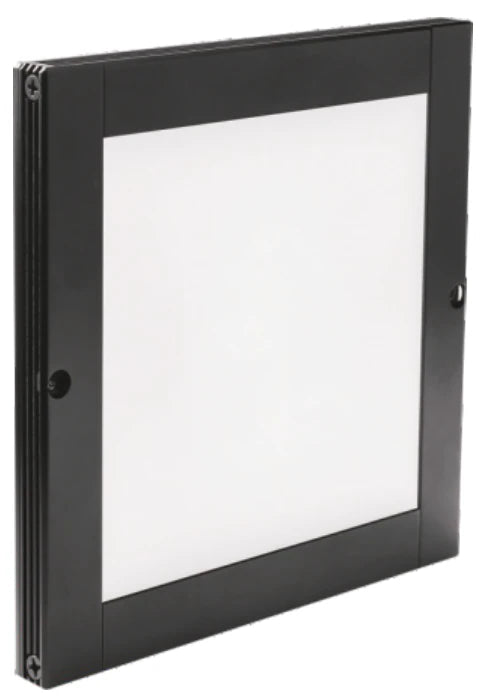

Side back light source (LS-BKL-S82)
- 15 models
- from $209.00
- Series LS-BKL-S82
The Side back light source (LS-BKL-S82) is a range of 15 backlights from LumaSpec Vision, from $209.00. It comes in 15 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 50 x 50 mm, 70 x 70 mm, 100 x 100 mm, 150 x 100 mm, 150 x 150 mm, 200 x 150 mm, 200 x 200 mm, 250 x 200 mm, 268 x 168 mm, 300 x 200 mm, 320 x 320 mm, 400 x 300 mm, 450 x 350 mm, 568 x 568 mm, 600 x 400 mm
- Colour
- Red, Green, Blue, White
- Type
- Edge-lit / ultra-thin
- Voltage
- 24 V
Features
- Multilateral lights make the overall uniformity
- Ultra-thin design, can meet different installation space requirements
- Flexible size, convenient customization, wide range of applications
- Various installation methods for convenient mounting
Typical uses
- Liquid level inspection
- Dimension measurement
- Liquid foreign matter inspection
- Burr inspection for metal profile
- Appearance inspection
- Dimension measuring for workpiece
All 15 models in the Side back light source (LS-BKL-S82)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-0717 | 50 x 50 mm | 50 x 50 | 10.5 | 82 | $209.00 | View |
| LS-BKL-0718 | 70 x 70 mm | 70 x 70 | 10.5 | 102 | $229.00 | View |
| LS-BKL-0719 | 100 x 100 mm | 100 x 100 | 10.5 | 132 | $279.00 | View |
| LS-BKL-0720 | 150 x 100 mm | 150 x 100 | 10.5 | 182 | $319.00 | View |
| LS-BKL-0721 | 150 x 150 mm | 150 x 150 | 10.5 | 182 | $389.00 | View |
| LS-BKL-0722 | 200 x 150 mm | 200 x 150 | 10.5 | 232 | $449.00 | View |
| LS-BKL-0723 | 200 x 200 mm | 200 x 200 | 10.5 | 232 | $539.00 | View |
| LS-BKL-0724 | 268 x 168 mm | 268 x 168 | 10.5 | 300 | $589.00 | View |
| LS-BKL-0716 | 250 x 200 mm | 250 x 200 | 10.5 | 282 | $629.00 | View |
| LS-BKL-0725 | 300 x 200 mm | 300 x 200 | 10.5 | 332 | $719.00 | View |
| LS-BKL-0728 | 450 x 350 mm | 450 x 350 | 10.5 | 482 | $1,039.00 | View |
| LS-BKL-0726 | 320 x 320 mm | 320 x 320 | 10.5 | 352 | $1,049.00 | View |
| LS-BKL-0727 | 400 x 300 mm | 400 x 300 | 10.5 | 432 | $1,179.00 | View |
| LS-BKL-0730 | 600 x 400 mm | 600 x 400 | 11.5 | 632 | $1,459.00 | View |
| LS-BKL-0729 | 568 x 568 mm | 568 x 568 | 12.5 | 600 | $1,899.00 | View |
