Backlights
150 x 100 mm Side back light source (LS-BKL-0720)
Model LS-BKL-0720
- ColourRed, Green, Blue, White
- TypeEdge-lit / ultra-thin
- Voltage24 V
- Wavelength red620-630 nm
$319.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.45 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Ultra-thin side (edge-lit) backlight; light from several sides gives overall uniformity and the thin design fits tight installation spaces. Flexible sizes and convenient customization.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0720 |
|---|---|
| Optional accessories | Extension cable |
| Service life (red) | 60000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Service life (white) | 30000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Overall L (mm) | 182 |
| Overall W (mm) | 132 |
| Overall H (mm) | 10.5 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Illuminance chart reference | LS-BKL-0719-W; uniformity at LWD 100 mm, FOV 140 x 140 mm |
| Luminous size (mm) | 150 x 100 |
Environment and compliance
| Storage temperature | -20 to 60 °C |
|---|---|
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-CTL-S69 series, LS-CTL-S28 series, LS-CTL-S125 series (the selected controller should match the power of the light source) |
|---|---|
| Power R (W) | 17 |
| Power G/B/W (W) | 18 |
| Recommended controller | LS-CTL-S69, LS-CTL-S28, LS-CTL-S125 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28 |
Mechanical

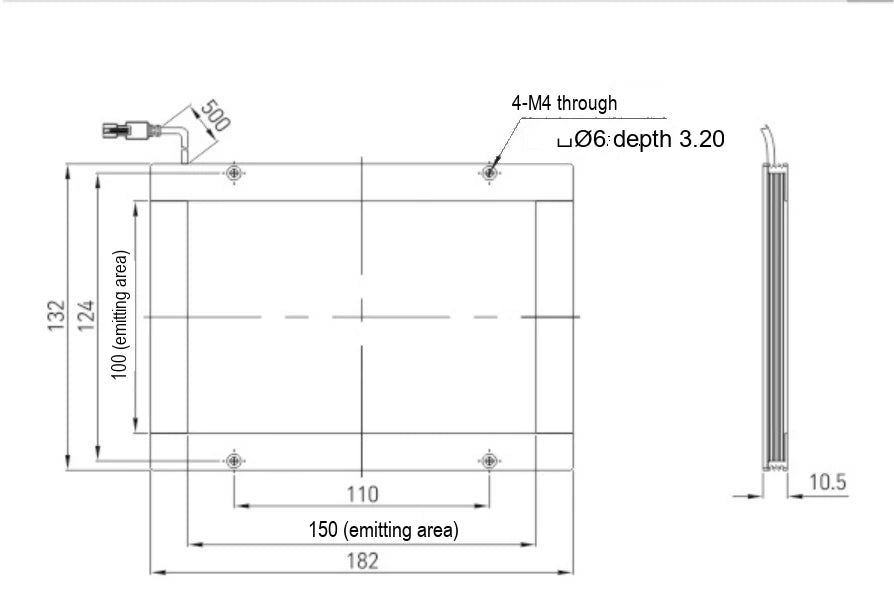

| Mounting | 4-M4 through, counterbore dia. 6 depth 3.20 |
|---|---|
| Shipping weight | 0.45 kg |
