Side back light source (LS-BKL-S82)
  • Side back light source (LS-BKL-S82)

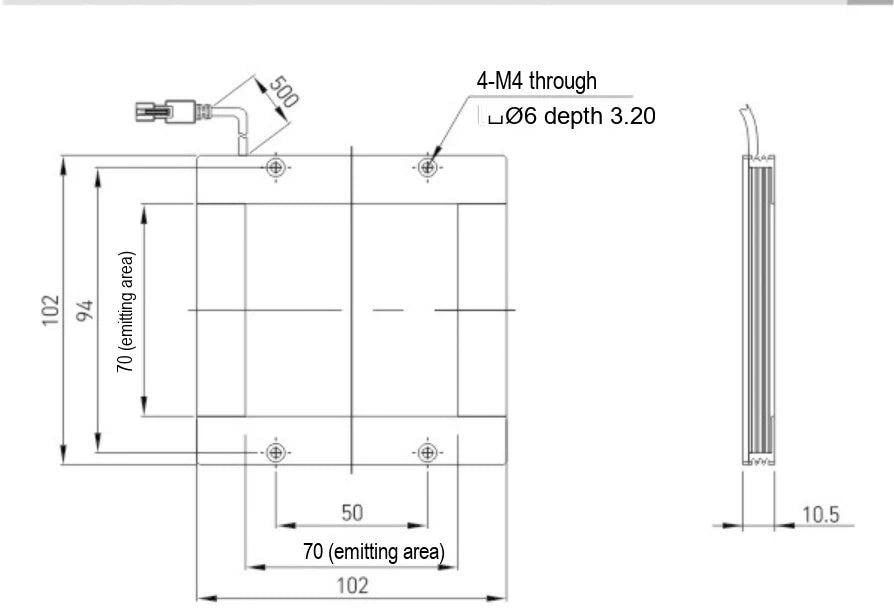

  • LS-BKL-0718 dimensions (mm)

Representative photo of this series. Colour shown for illustration; the actual product may differ

Backlights

70 x 70 mm Side back light source (LS-BKL-0718)

Model LS-BKL-0718-R

  • ColourRed, Green, Blue, White
  • TypeEdge-lit / ultra-thin
  • Voltage24 V
  • Wavelength red620-630 nm
$229.00

Ships in 2-3 weeks

0.3 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

70 x 70 mm Side back light source (LS-BKL-0718)LS-BKL-0718-R

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Ultra-thin side (edge-lit) backlight; light from several sides gives overall uniformity and the thin design fits tight installation spaces. Flexible sizes and convenient customization.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-0718
Optional accessoriesExtension cable
Service life (red)60000 h continuous at 25 °C, 50% illumination, to 50% decrement
Service life (white)30000 h continuous at 25 °C, 50% illumination, to 50% decrement
Overall L (mm)102
Overall W (mm)102
Overall H (mm)10.5

Interfaces and I/O

Cable length (mm)500

Light

Wavelength red620-630 nm
Wavelength green520-530 nm
Wavelength blue465-475 nm
Colour temperature white6000-6500 K
Wavelength IR850-940 nm
Wavelength UV365-405 nm
Illuminance chart referenceLS-BKL-0719-W; uniformity at LWD 100 mm, FOV 140 x 140 mm
Luminous size (mm)70 x 70

Environment and compliance

Storage temperature-20 to 60 °C
Operating temperature0 to 40 °C
Humidity20-85 %RH (non-condensing)

Electrical

ControllerLS-CTL-S69 series, LS-CTL-S28 series, LS-CTL-S125 series (the selected controller should match the power of the light source)
Power R (W)11.2
Power G/B/W (W)9
Recommended controllerLS-CTL-S69, LS-CTL-S28, LS-CTL-S125
Supply voltage (derived)24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28

Mechanical

Mounting4-M4 through, counterbore dia. 6 depth 3.20
Shipping weight0.30 kg

Other models in the Side back light source (LS-BKL-S82) series

See all 15 models
ModelSize / key dataPriceAvailabilityLink
LS-BKL-0717 50 x 50 mm $209.00 Ships in 2-3 weeks View
LS-BKL-0719 100 x 100 mm $279.00 Ships in 2-3 weeks View
LS-BKL-0720 150 x 100 mm $319.00 Ships in 2-3 weeks View
LS-BKL-0721 150 x 150 mm $389.00 Ships in 2-3 weeks View
LS-BKL-0722 200 x 150 mm $449.00 Ships in 2-3 weeks View
LS-BKL-0723 200 x 200 mm $539.00 Ships in 2-3 weeks View
LS-BKL-0724 268 x 168 mm $589.00 Ships in 2-3 weeks View
LS-BKL-0716 250 x 200 mm $629.00 Ships in 2-3 weeks View
LS-BKL-0725 300 x 200 mm $719.00 Ships in 2-3 weeks View
LS-BKL-0728 450 x 350 mm $1,039.00 Ships in 2-3 weeks View
LS-BKL-0726 320 x 320 mm $1,049.00 Ships in 2-3 weeks View
LS-BKL-0727 400 x 300 mm $1,179.00 Ships in 2-3 weeks View
LS-BKL-0730 600 x 400 mm $1,459.00 Ships in 2-3 weeks View
LS-BKL-0729 568 x 568 mm $1,899.00 Ships in 2-3 weeks View
