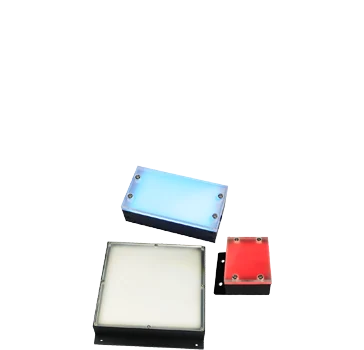

Classic flat backlights (LS-BKL-S132)
- 14 models
- from $199.00
- Series LS-BKL-S132
The Classic flat backlights (LS-BKL-S132) is a range of 14 backlights from LumaSpec Vision, from $199.00. It comes in 13 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 37 x 37 mm, White, 58 x 30 mm, White, 78 x 64 mm, White, 98 x 84 mm, White, 135 x 115 mm, White, 180 x 114 mm, Red, 180 x 114 mm, White, 212 x 168 mm, White, 215 x 165 mm, White, 234 x 214 mm, White, 262 x 149 mm, White, 265 x 185 mm, Red, 420 x 240 mm, White
- Type
- Standard
- Voltage
- 24 V
- Colour
- Red, White
Features
- Wide-angle SMD LEDs in a high-density layout for good uniformity
- Available in custom sizes and wavelengths
- Multiple mounting options
All 14 models in the Classic flat backlights (LS-BKL-S132)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-1501 | 58 x 30 mm, White | 48 mm × 28 mm | White | 2.4 W | $199.00 | View |
| LS-BKL-1500 | 37 x 37 mm, White | 27 mm × 27 mm | White | 1.6 W | $199.00 | View |
| LS-BKL-1502 | 78 x 64 mm, White | 50 mm × 50 mm | White | 5.76 W | $209.00 | View |
| LS-BKL-1503 | 98 x 84 mm, White | 70 mm × 70 mm | White | 11.52 W | $229.00 | View |
| LS-BKL-1504 | 135 x 115 mm, White | 100 mm × 100 mm | White | 19.2 W | $279.00 | View |
| LS-BKL-1507 | 180 x 114 mm, White | 150 mm × 100 mm | White | 26.4 W | $319.00 | View |
| LS-BKL-1505 | 215 x 165 mm, White | 120 mm × 120 mm | White | 19.5 W | $319.00 | View |
| LS-BKL-1506 | 180 x 114 mm, Red | 150 mm × 100 mm | Red | 15 W | $319.00 | View |
| LS-BKL-1508 | 215 x 165 mm, White | 180 mm × 150 mm | White | 34.6 W | $429.00 | View |
| LS-BKL-1511 | 262 x 149 mm, White | 250 mm × 125 mm | White | 32.4 W | $459.00 | View |
| LS-BKL-1509 | 212 x 168 mm, White | 200 mm × 160 mm | White | 27.72 W | $469.00 | View |
| LS-BKL-1512 | 265 x 185 mm, Red | 250 mm × 150 mm | Red | 36 W | $519.00 | View |
| LS-BKL-1510 | 234 x 214 mm, White | 200 mm × 200 mm | White | 60.6 W | $539.00 | View |
| LS-BKL-1513 | 420 x 240 mm, White | 400 mm × 200 mm | White | 81 W | $879.00 | View |
