Flat Backlight, 180 x 114 mm, Red (LS-BKL-1506)
Model LS-BKL-1506
- ColourRed
- Emitting area150 mm × 100 mm
- Size180 mm × 114 mm × 19 mm
- Power15 W
- Wavelength625 nm
$319.00
Ships in 2-3 weeks
0.66 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Flat Backlight, 180 x 114 mm, Red. Wide-angle SMD LEDs in a high-density layout for good uniformity Available in custom sizes and wavelengths
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1506 |
|---|
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 500 mm |
Light
| Color | Red |
|---|---|
| Wavelength | 625 nm |
| Emitting area dimension | 150 mm × 100 mm |
| Diffuse plate included | Included |
Environment and compliance
| Humidity | 20% to 85% RH (non-condensing) |
|---|---|
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
Electrical
| Power | 15 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |
Mechanical

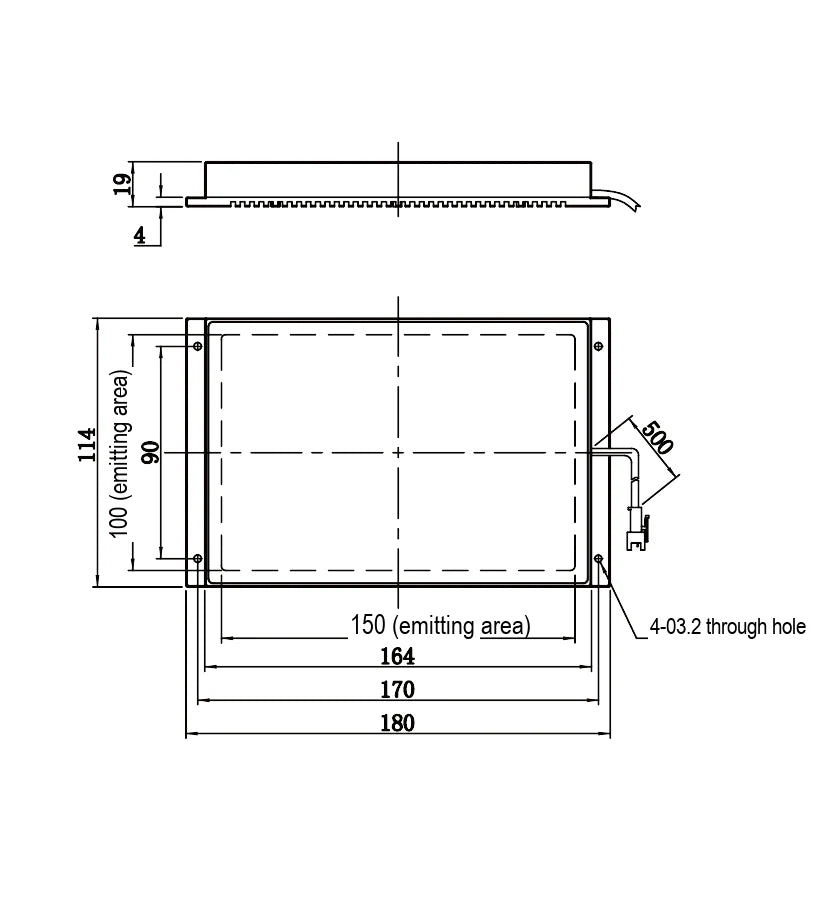

| Dimension | 180 mm × 114 mm × 19 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
