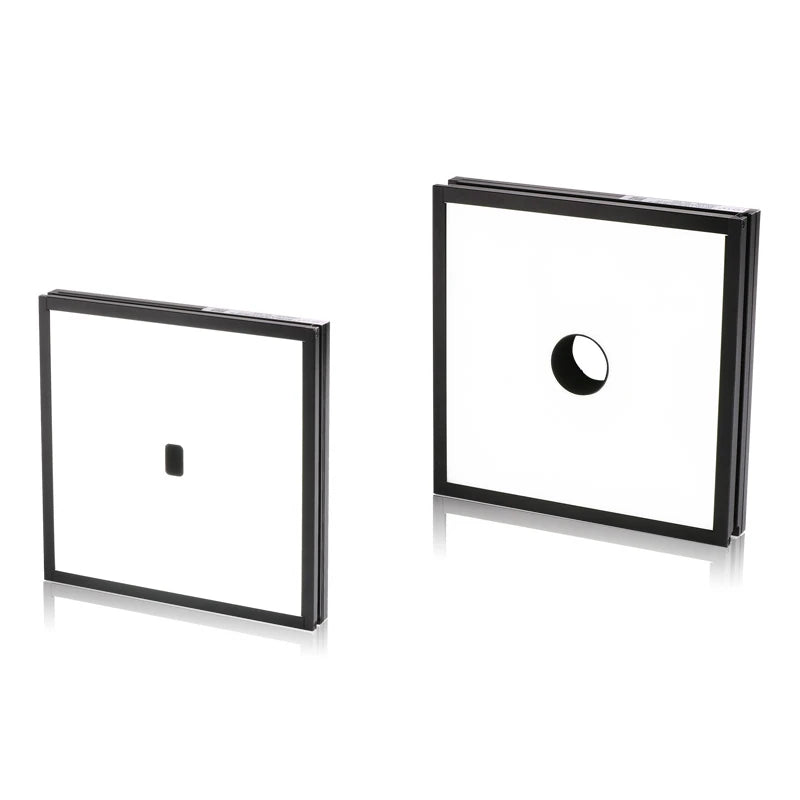

Square back light with hole (LS-BKL-S98)
- 6 models
- from $179.00
- Series LS-BKL-S98
The Square back light with hole (LS-BKL-S98) is a range of 6 backlights from LumaSpec Vision, from $179.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White
- Size
- 100-200 mm, 200-400 mm
- Type
- With centre hole
- Voltage
- 24 V
Features
- High-density LED distribute to the bottom of the light
- High uniformity, high luminance
- Diverse dimension for reference, used to various applications
- Emitting area and the center hole can be customized
Typical uses
- Boundary dimension measurement
- Damaged edge inspection
- Transparency impurity inspection
- Oral liquid level height inspection
All 6 models in the Square back light with hole (LS-BKL-S98)
| Link | |||||
|---|---|---|---|---|---|
| LS-BKL-0995 | 90 x 90 | 5.9W/7.4W | L104xW104xH21(mm) | $179.00 | View |
| LS-BKL-0996 | 110 x 110 | 6.4W/8.0W | L146xW124xH21(mm) | $219.00 | View |
| LS-BKL-0997 | 140 | 13.8W/17.5W | L154xW154xH21(mm) | $249.00 | View |
| LS-BKL-0998 | 200 x 100 | 12.2W/15.4W | L214xW114xH21(mm) | $259.00 | View |
| LS-BKL-0999 | 200 x 180 | 23.3W/29.1W | L236xW194xH21mm) | $379.00 | View |
| LS-BKL-1000 | 236 x 186 | 27.5W/35.4W | L250xW200xH21(mm) | $409.00 | View |
