Representative photo of this series
Backlights

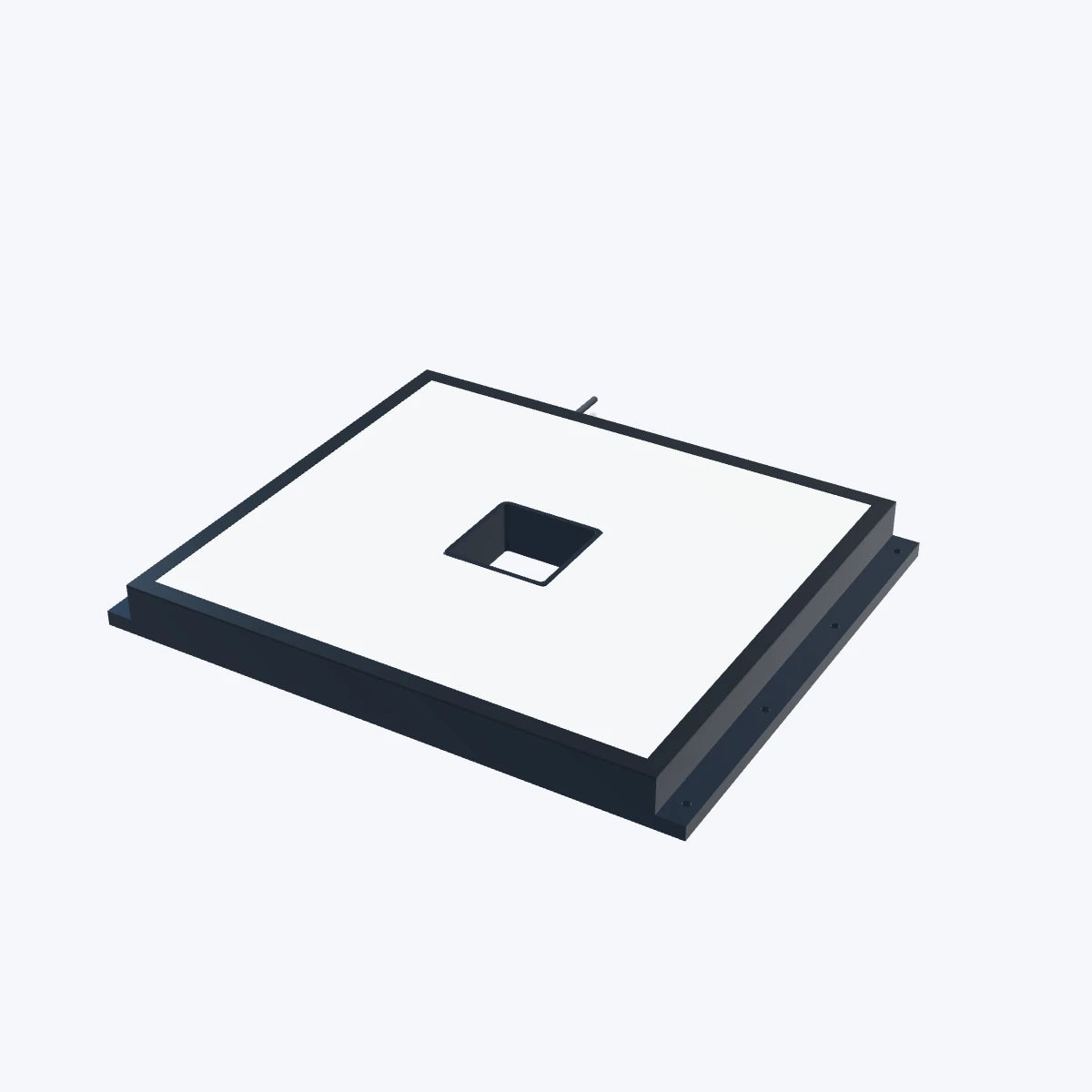

Square back light with hole, 236 x 194 x 21 mm (LS-BKL-0999)
Model LS-BKL-0999
- ColourRed, Blue, Green, White
- Emitting area200 x 180 mm
- SizeL236xW194xH21mm)
- Voltage24V
- Power23.3W/29.1W
$379.00
In stock - ships the same business day (5 available, order by 2 PM ET)
1.25 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High-density LED distribute to the bottom of the light. High uniformity, high luminance. Diverse dimension for reference, used to various applications.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0999 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 200 x 180 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 23.3W/29.1W |
| Input voltage | DC 24V (max) |
Mechanical

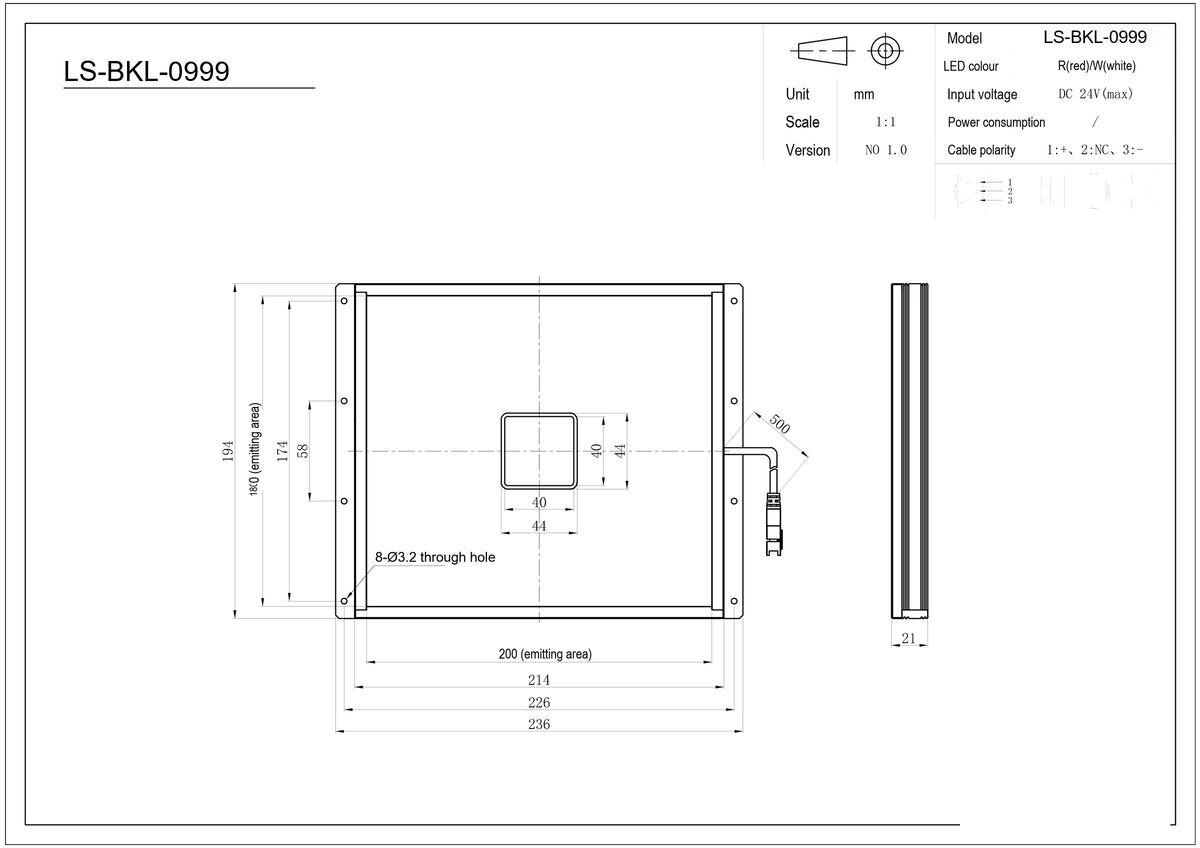

| Dimension | L236xW194xH21mm) |
|---|---|
| Shipping weight | 1.25 kg |
Other models in the Square back light with hole (LS-BKL-S98) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0995 | Red, Blue, Green, White · 90 x 90 mm | $179.00 | 15 in stock | View |
| LS-BKL-0996 | Red, Blue, Green, White · 110 x 110 mm | $219.00 | 9 in stock | View |
| LS-BKL-0997 | Red, Blue, Green, White · 140 mm | $249.00 | 13 in stock | View |
| LS-BKL-0998 | Red, Blue, Green, White · 200 x 100 mm | $259.00 | 13 in stock | View |
| LS-BKL-1000 | Red, Blue, Green, White · 236 x 186 mm | $409.00 | 12 in stock | View |
