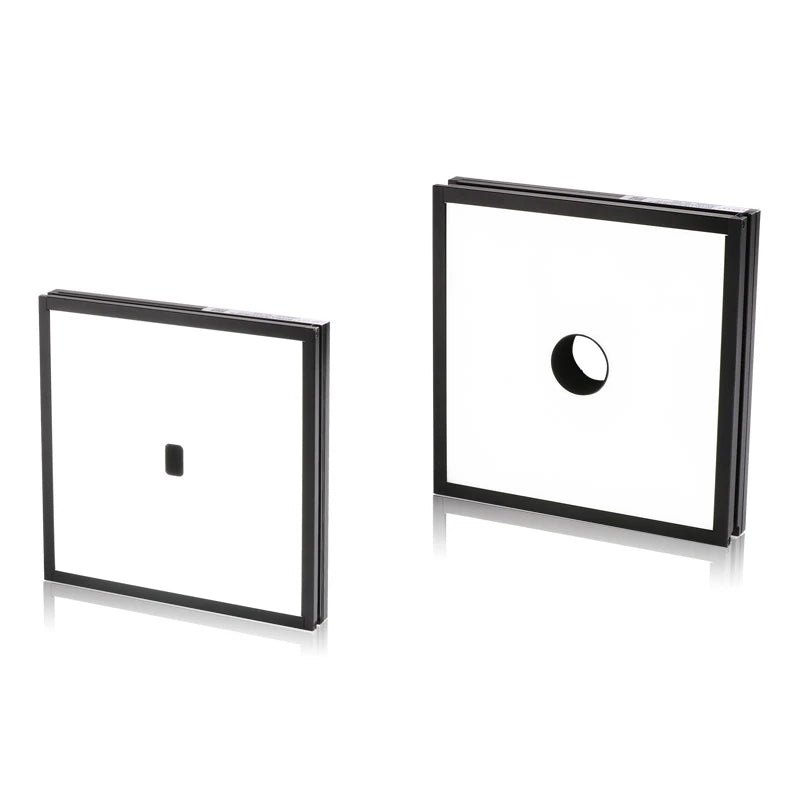

Square back light with hole (LS-BKL-S98)

Representative photo of this series

Backlights

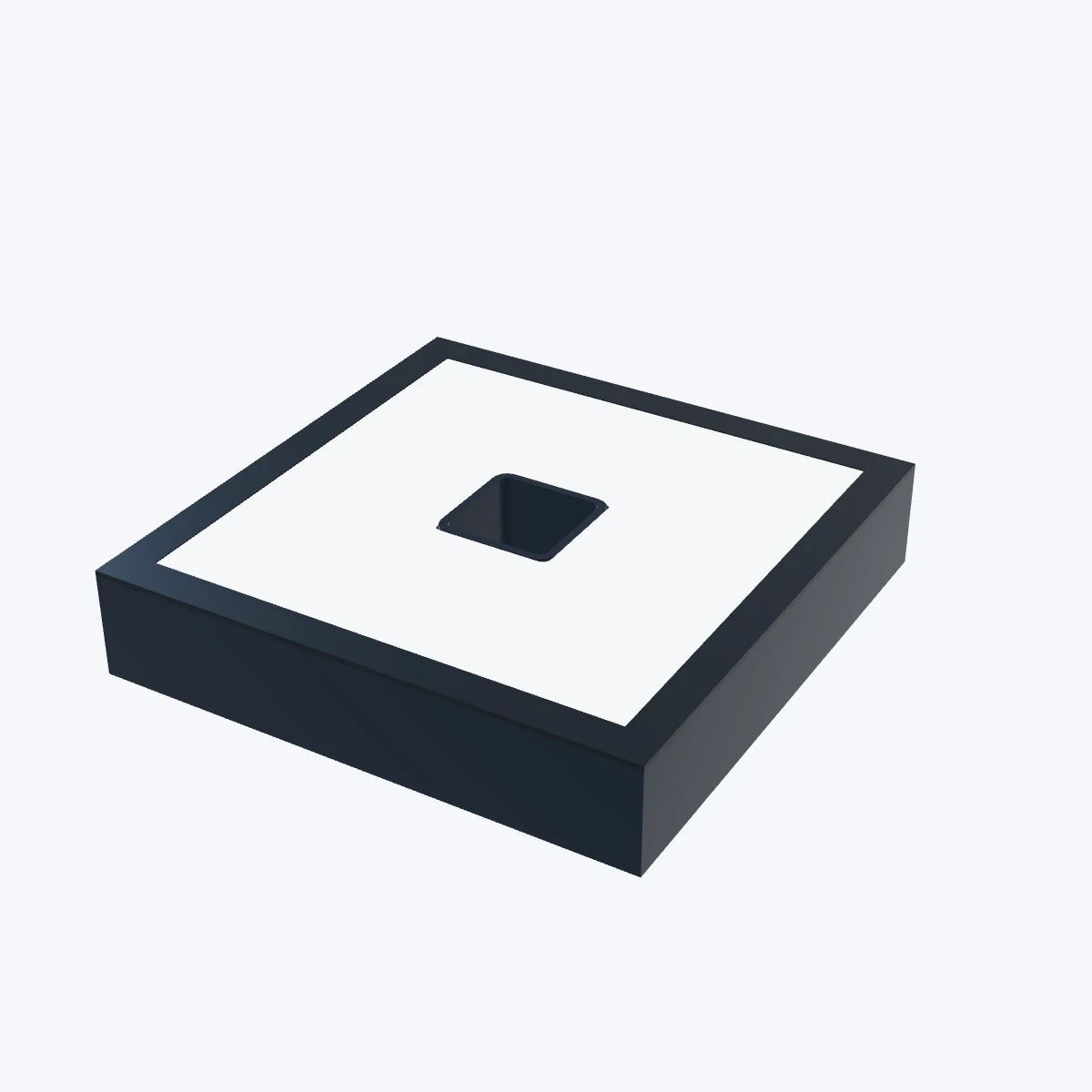

Square back light with hole, 104 x 104 x 21 mm (LS-BKL-0995)

Model LS-BKL-0995

ColourRed, Blue, Green, White
Emitting area90 x 90 mm
SizeL104xW104xH21(mm)
Voltage24V
Power5.9W/7.4W

$179.00

Ships in 2-3 weeks

0.4 kg shipping weight

Color Red Blue Green White

Volume pricing, Net 30 terms or a formal quote for purchasing?

High-density LED distribute to the bottom of the light. High uniformity, high luminance. Diverse dimension for reference, used to various applications.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BKL-0995
Note	UV & IR light can be customized as required.

Interfaces and I/O

Cable polarity	1: +, 2: NC, 3: -

Light

LED colour	R(red)/W(white)
Emitting surface (mm)	90 x 90

Electrical

Voltage	24V
Power	5.9W/7.4W
Input voltage	DC 24V (max)

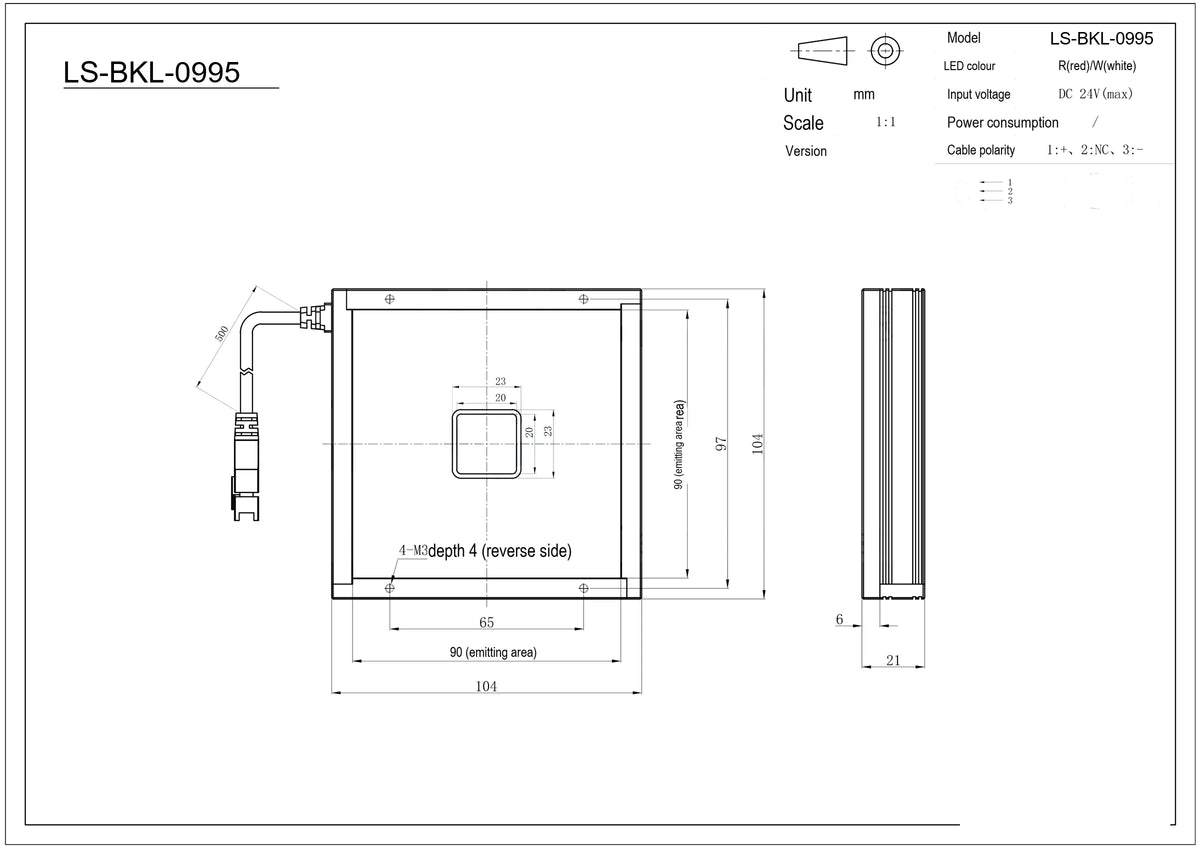

Mechanical

Dimension	L104xW104xH21(mm)
Mounting holes	4-M3 depth 4 (reverse side)
Shipping weight	0.40 kg

Other models in the Square back light with hole (LS-BKL-S98) series

See all 6 models

Model	Size / key data	Price	Availability	Link
LS-BKL-0996	Red, Blue, Green, White · 110 x 110 mm	$219.00	Ships in 2-3 weeks	View
LS-BKL-0997	Red, Blue, Green, White · 140 mm	$249.00	Ships in 2-3 weeks	View
LS-BKL-0998	Red, Blue, Green, White · 200 x 100 mm	$259.00	Ships in 2-3 weeks	View
LS-BKL-0999	Red, Blue, Green, White · 200 x 180 mm	$379.00	Ships in 2-3 weeks	View
LS-BKL-1000	Red, Blue, Green, White · 236 x 186 mm	$409.00	Ships in 2-3 weeks	View
