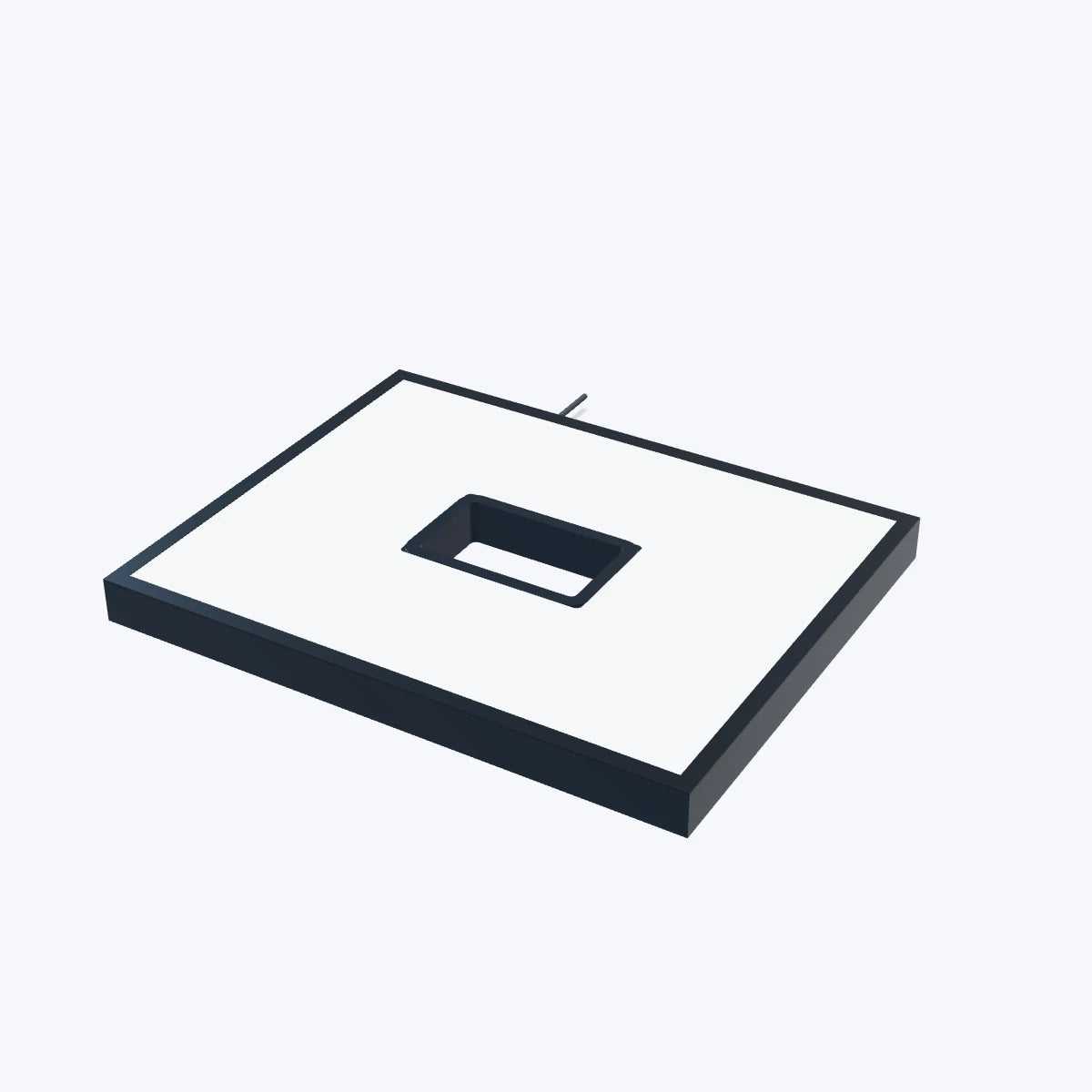

LS-BKL-1000 — Backlights. Dimension-based illustration; details and finish are representative.
  • LS-BKL-1000 — Backlights. Dimension-based illustration; details and finish are representative.

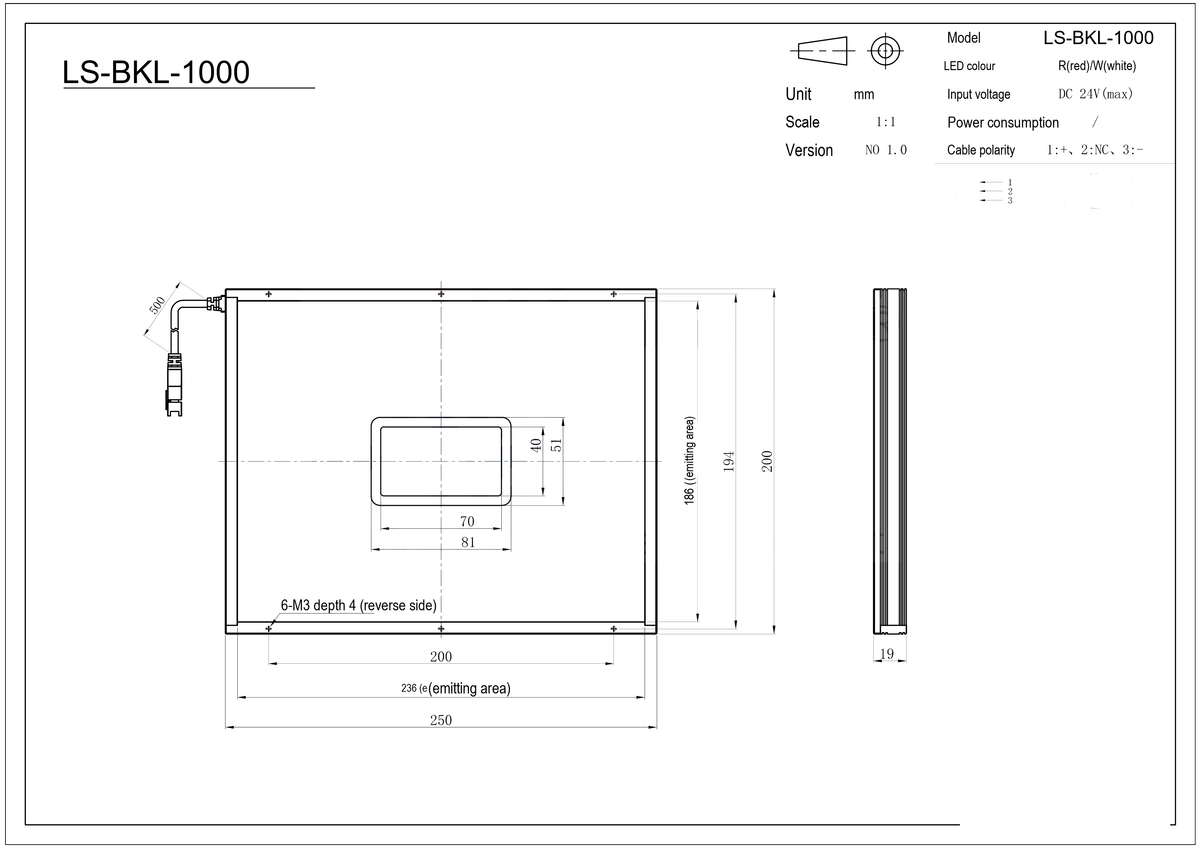

  • LS-BKL-1000 dimensions (mm)

Drawing-based illustration. Housing, emitting area and clear openings follow this model's own dimensioned drawing; rounded corners, small surface details, cable placement, finish and light colour are representative.

Backlights

Square back light with hole, 250 x 200 x 19 mm (LS-BKL-1000)

Model LS-BKL-1000

  • ColourRed, Blue, Green, White
  • Emitting area236 x 186 mm
  • SizeL250xW200xH19(mm)
  • Voltage24V
  • Power27.5W/35.4W
$409.00

Ships in 2-3 weeks

1.3 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Square back light with hole, 250 x 200 x 19 mm (LS-BKL-1000)LS-BKL-1000

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

High-density LED distribute to the bottom of the light. High uniformity, high luminance. Diverse dimension for reference, used to various applications.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1000
NoteUV & IR light can be customized as required.

Interfaces and I/O

Cable polarity1: +, 2: NC, 3: -

Light

LED colourR(red)/W(white)
Emitting surface (mm)236 x 186

Electrical

Voltage24V
Power27.5W/35.4W
Input voltageDC 24V (max)

Mechanical

DimensionL250xW200xH19(mm)
Mounting holes6-M3 depth 4 (reverse side)
Shipping weight1.30 kg
