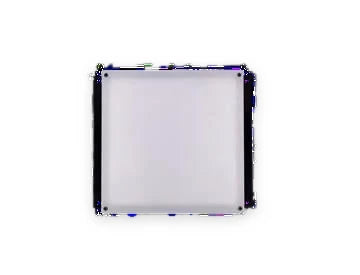

Traditional surface light source (LS-BKL-S113)
- 38 models
- from $139.00
- Series LS-BKL-S113
The Traditional surface light source (LS-BKL-S113) is a range of 38 backlights from LumaSpec Vision, from $139.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White, Infrared, UV
- Size
- Under 50 mm, 50-100 mm, 100-200 mm, 200-400 mm, 400 mm +
- Type
- Standard
- Voltage
- 24 V
Features
- Large-area uniform light emission
- High-array LED arrangement for high-brightness planar lighting
- Mainly used for perspective contour imaging and large-format uniform illumination
- Size can be customized according to different needs
Typical uses
- Various size measurements, shape inspection of transparent objects
- Shape inspection of electronic components and ICs
- Size measurement
- Shape defect detection
All 38 models in the Traditional surface light source (LS-BKL-S113)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-1152 | 20 | 13 | 0.4 | 0.4 | $139.00 | View |
| LS-BKL-1153 | 25 | 15 | 0.3 | 0.2 | $139.00 | View |
| LS-BKL-1154 | 49 | 17 | 0.8 | 1 | $139.00 | View |
| LS-BKL-1155 | 56 | 18 | 1.2 | 1.4 | $139.00 | View |
| LS-BKL-1157 | 47.9 | 15 | 0.74 | 0.92 | $139.00 | View |
| LS-BKL-1166 | 180 | 15 | 3 | 3.3 | $139.00 | View |
| LS-BKL-1156 | 88 | 13 | 2 | 2.4 | $149.00 | View |
| LS-BKL-1158 | 72 | 18 | 0.96 | 1.2 | $149.00 | View |
| LS-BKL-1159 | 72 | 18 | 1.65 | 2.06 | $149.00 | View |
| LS-BKL-1161 | 90 | 40 | 2.31 | 2.89 | $149.00 | View |
| LS-BKL-1160 | 80 | 18 | 1.98 | 2.48 | $159.00 | View |
| LS-BKL-1162 | 87 | 18 | 2.38 | 2.97 | $159.00 | View |
| LS-BKL-1163 | 89 | 18 | 3.17 | 3.96 | $159.00 | View |
| LS-BKL-1164 | 99 | 18 | 3.7 | 4.62 | $169.00 | View |
| LS-BKL-1170 | 180 | 15 | 8.5 | 11 | $169.00 | View |
| LS-BKL-1165 | 107 | 18 | 4.23 | 5.28 | $179.00 | View |
| LS-BKL-1169 | 128 | 18 | 6 | 8 | $179.00 | View |
| LS-BKL-1167 | 173 | 19.5 | 7.8 | 8 | $209.00 | View |
| LS-BKL-1174 | 180 | 24 | 9.91 | 12.38 | $229.00 | View |
| LS-BKL-1175 | 150 | 18 | 9.51 | 11.89 | $229.00 | View |
| LS-BKL-1171 | 278 | 20 | 13.74 | 17.17 | $259.00 | View |
| LS-BKL-1172 | 335 | 18 | 32 | 32 | $289.00 | View |
| LS-BKL-1176 | 248 | 16 | 16.8 | 16.8 | $289.00 | View |
| LS-BKL-1177 | 215 | 22 | 14.72 | 18.4 | $289.00 | View |
| LS-BKL-1180 | 18 | 21.4 | 26.54 | $319.00 | View | |
| LS-BKL-1168 | 500 | 18 | 18 | 20 | $329.00 | View |
| LS-BKL-1178 | 210 | 17 | 19.81 | 24.77 | $329.00 | View |
| LS-BKL-1173 | 615 | 73 | 31.7 | 39.63 | $389.00 | View |
| LS-BKL-1181 | 230 | 18 | 26.42 | 33.02 | $389.00 | View |
| LS-BKL-1182 | 263 | 19 | 53.76 | 67.2 | $439.00 | View |
| LS-BKL-1183 | 296 | 18 | 54.64 | 68.3 | $489.00 | View |
| LS-BKL-1184 | 310 | 24 | 39.63 | 49.54 | $529.00 | View |
| LS-BKL-1179 | 410 | 24 | 38.4 | 38.4 | $539.00 | View |
| LS-BKL-1188 | 330 | 24 | 59.44 | 74.3 | $689.00 | View |
| LS-BKL-1186 | 430 | 25 | 61.92 | 82.56 | $739.00 | View |
| LS-BKL-1185 | 610 | 24 | 79.26 | 99.07 | $879.00 | View |
| LS-BKL-1187 | 510 | 25 | 68.8 | 86 | $889.00 | View |
| LS-BKL-1189 | 530 | 25 | 105 | 118 | $1,279.00 | View |
