Traditional surface light source (LS-BKL-S113)
  • Traditional surface light source (LS-BKL-S113)

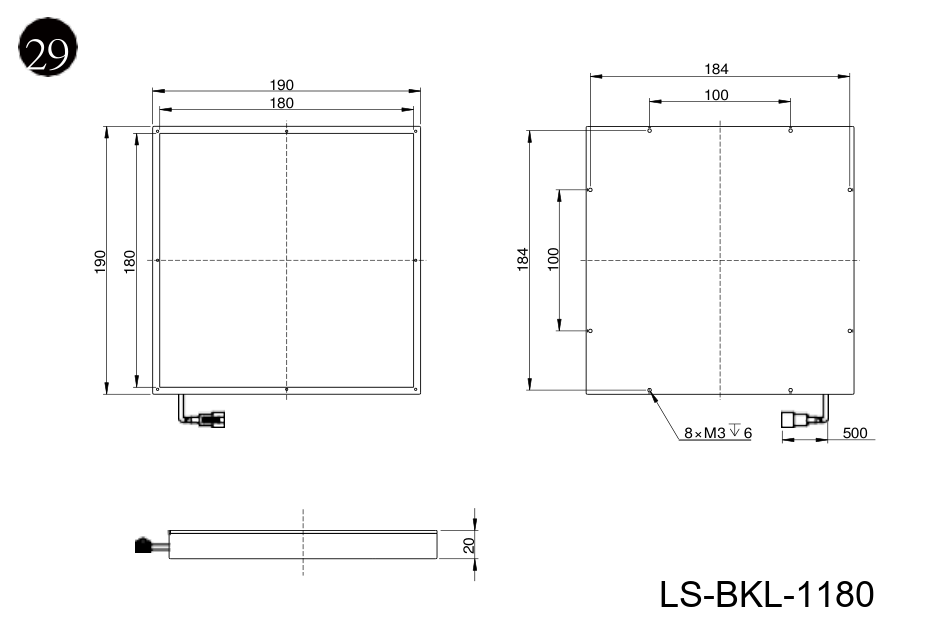

  • LS-BKL-1180 dimensions (mm)

Representative photo of this series

Backlights

190 mm traditional surface light source (LS-BKL-1180)

Model LS-BKL-1180

  • ColourRed, Green, Blue, White, Infrared, UV
  • Voltage24 V DC (12 V on request)
  • TypeStandard
  • Length / width190 mm
$319.00

Ships in 2-3 weeks

0.9 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

190 mm traditional surface light source (LS-BKL-1180)LS-BKL-1180

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Surface light with large-area uniform light emission and high-array LED arrangement for high-brightness planar lighting. Mainly used for perspective contour imaging and large-format uniform illumination.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1180

Interfaces and I/O

Cable length (mm)500

Electrical

Voltage24 V DC (12 V on request)
Power red (W)21.4
Power white/blue/green (W)26.54

Mechanical

Length / width (mm)190
Height (mm)18
Mounting8 x M3 threaded, depth 6 (back)
Shipping weight0.90 kg

Other models in the Traditional surface light source (LS-BKL-S113) series

See all 38 models
ModelSize / key dataPriceAvailabilityLink
LS-BKL-1163 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $159.00 Ships in 2-3 weeks View
LS-BKL-1164 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $169.00 Ships in 2-3 weeks View
LS-BKL-1170 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $169.00 Ships in 2-3 weeks View
LS-BKL-1165 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $179.00 Ships in 2-3 weeks View
LS-BKL-1169 Red, Green, Blue, White, Infrared, UV · 120 x 54 mm $179.00 Ships in 2-3 weeks View
LS-BKL-1167 Red, Green, Blue, White, Infrared, UV · 82 x 158 mm $209.00 Ships in 2-3 weeks View
LS-BKL-1174 Red, Green, Blue, White, Infrared, UV · 150.4 x 100.4 mm $229.00 Ships in 2-3 weeks View
LS-BKL-1175 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $229.00 Ships in 2-3 weeks View
LS-BKL-1171 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $259.00 Ships in 2-3 weeks View
LS-BKL-1172 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $289.00 Ships in 2-3 weeks View
LS-BKL-1176 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $289.00 Ships in 2-3 weeks View
LS-BKL-1177 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $289.00 Ships in 2-3 weeks View
LS-BKL-1168 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $329.00 Ships in 2-3 weeks View
LS-BKL-1178 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $329.00 Ships in 2-3 weeks View
LS-BKL-1173 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $389.00 Ships in 2-3 weeks View
LS-BKL-1181 Red, Green, Blue, White, Infrared, UV · 200 x 200 mm $389.00 Ships in 2-3 weeks View
LS-BKL-1182 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $439.00 Ships in 2-3 weeks View
LS-BKL-1183 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $489.00 Ships in 2-3 weeks View
LS-BKL-1184 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $529.00 Ships in 2-3 weeks View
LS-BKL-1179 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $539.00 Ships in 2-3 weeks View
LS-BKL-1188 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $689.00 Ships in 2-3 weeks View
LS-BKL-1186 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $739.00 Ships in 2-3 weeks View
LS-BKL-1185 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $879.00 Ships in 2-3 weeks View
LS-BKL-1187 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $889.00 Ships in 2-3 weeks View
