Traditional surface light source (LS-BKL-S113)
  • Traditional surface light source (LS-BKL-S113)

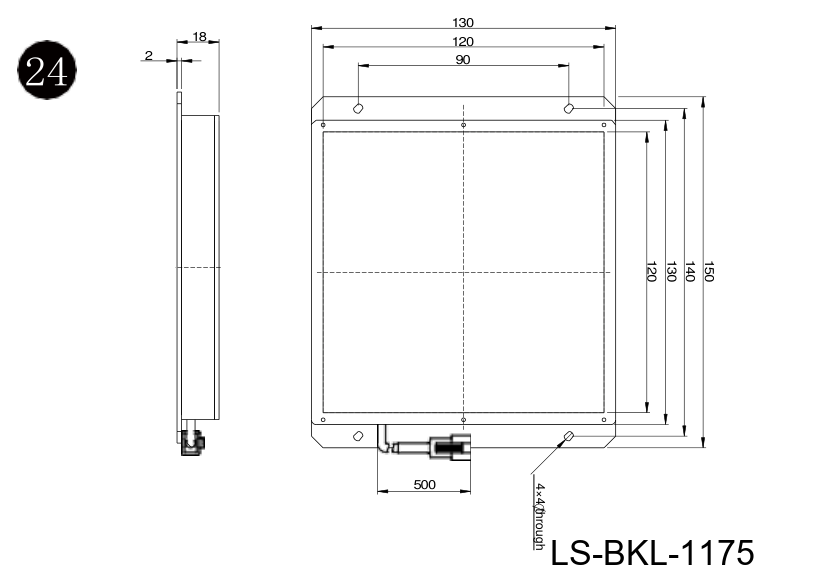

  • LS-BKL-1175 dimensions (mm)

Representative photo of this series

Backlights

150 x 130 mm traditional surface light source (LS-BKL-1175)

Model LS-BKL-1175

  • ColourRed, Green, Blue, White, Infrared, UV
  • Voltage24 V DC (12 V on request)
  • TypeStandard
  • Length150 mm
$229.00

Ships in 2-3 weeks

0.55 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

150 x 130 mm traditional surface light source (LS-BKL-1175)LS-BKL-1175

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Surface light with large-area uniform light emission and high-array LED arrangement for high-brightness planar lighting. Mainly used for perspective contour imaging and large-format uniform illumination.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1175

Interfaces and I/O

Cable length (mm)500

Electrical

Voltage24 V DC (12 V on request)
Power red (W)9.51
Power white/blue/green (W)11.89

Mechanical

Length (mm)150
Width (mm)130
Height (mm)18
Mounting4 x dia. 4 through holes
Shipping weight0.55 kg
