Traditional surface light source (FL)
  • Traditional surface light source (FL)
  • LS-FL5060 dimensions (mm)

Representative photo of this series

Backlights

80 x 68 mm traditional surface light source (LS-BKL-1160)

Model LS-BKL-1160

  • ColourRed, Green, Blue, White, Infrared, UV
  • Voltage24 V DC (12 V on request)
  • TypeStandard
  • Length80 mm
$159.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.3 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

80 x 68 mm traditional surface light source (LS-BKL-1160)LS-BKL-1160

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Surface light with large-area uniform light emission and high-array LED arrangement for high-brightness planar lighting. Mainly used for perspective contour imaging and large-format uniform illumination.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1160

Interfaces and I/O

Cable length (mm)500

Electrical

Voltage24 V DC (12 V on request)
Power red (W)1.98
Power white/blue/green (W)2.48

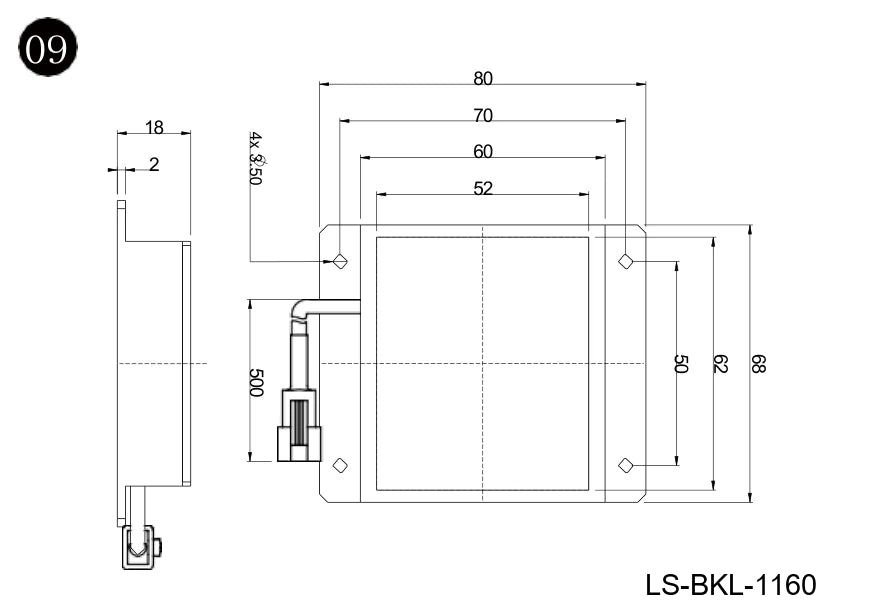

Mechanical

Length (mm)80
Width (mm)68
Height (mm)18
Mounting4 x dia. 3.5 holes
Shipping weight0.30 kg

Other models in the Traditional surface light source (LS-BKL-S113) series

See all 38 models
ModelSize / key dataPriceAvailabilityLink
LS-BKL-1152 Red, Green, Blue, White, Infrared, UV · 12 x 9 mm $139.00 24 in stock View
LS-BKL-1153 Red, Green, Blue, White, Infrared, UV · 15 x 16 mm $139.00 21 in stock View
LS-BKL-1154 Red, Green, Blue, White, Infrared, UV · 19 x 19 mm $139.00 23 in stock View
LS-BKL-1155 Red, Green, Blue, White, Infrared, UV · 34 x 25 mm $139.00 21 in stock View
LS-BKL-1157 Red, Green, Blue, White, Infrared, UV · 35.9 x 32.1 mm $139.00 18 in stock View
LS-BKL-1166 Red, Green, Blue, White, Infrared, UV · 159 x 10 mm $139.00 22 in stock View
LS-BKL-1156 Red, Green, Blue, White, Infrared, UV · 70 x 18 mm $149.00 21 in stock View
LS-BKL-1158 Red, Green, Blue, White, Infrared, UV · 36 x 40 mm $149.00 17 in stock View
LS-BKL-1159 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $149.00 23 in stock View
LS-BKL-1161 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $149.00 17 in stock View
LS-BKL-1162 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $159.00 19 in stock View
LS-BKL-1163 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $159.00 19 in stock View
LS-BKL-1164 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $169.00 24 in stock View
LS-BKL-1170 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $169.00 19 in stock View
LS-BKL-1165 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $179.00 22 in stock View
LS-BKL-1169 Red, Green, Blue, White, Infrared, UV · 120 x 54 mm $179.00 25 in stock View
LS-BKL-1167 Red, Green, Blue, White, Infrared, UV · 82 x 158 mm $209.00 16 in stock View
LS-BKL-1174 Red, Green, Blue, White, Infrared, UV · 150.4 x 100.4 mm $229.00 21 in stock View
LS-BKL-1175 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $229.00 22 in stock View
LS-BKL-1171 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $259.00 22 in stock View
LS-BKL-1172 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $289.00 22 in stock View
LS-BKL-1176 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $289.00 21 in stock View
LS-BKL-1177 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $289.00 24 in stock View
LS-BKL-1180 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $319.00 26 in stock View
