Traditional surface light source (FL)
  • Traditional surface light source (FL)
  • LS-FL120220 dimensions (mm)

Representative photo of this series

Backlights

248 x 128 mm traditional surface light source (LS-BKL-1176)

Model LS-BKL-1176

  • ColourRed, Green, Blue, White, Infrared, UV
  • Voltage24 V DC (12 V on request)
  • TypeStandard
  • Width128 mm
$289.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.75 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

248 x 128 mm traditional surface light source (LS-BKL-1176)LS-BKL-1176

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Surface light with large-area uniform light emission and high-array LED arrangement for high-brightness planar lighting. Mainly used for perspective contour imaging and large-format uniform illumination.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1176

Interfaces and I/O

Cable length (mm)500

Electrical

Voltage24 V DC (12 V on request)
Power red (W)16.8
Power white/blue/green (W)16.8

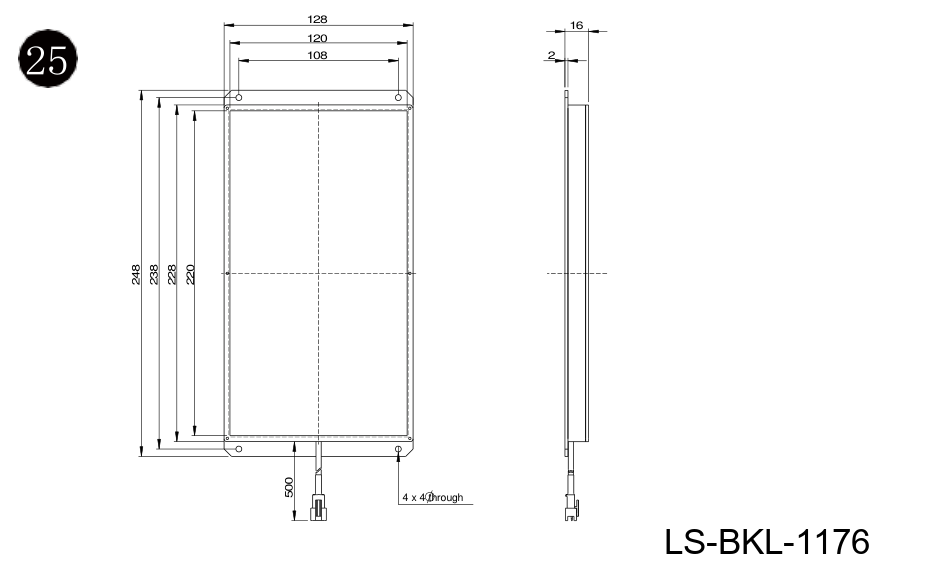

Mechanical

Width (mm)128
Length (mm)248
Height (mm)16
Mounting4 x dia. 4 through holes
Shipping weight0.75 kg
