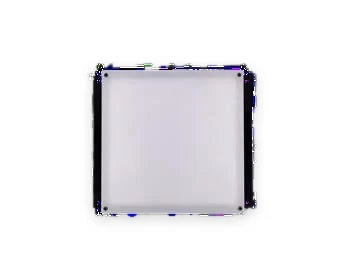

Traditional surface light source (LS-BKL-S113)

Representative photo of this series

Backlights

99 x 88 mm traditional surface light source (LS-BKL-1164)

Model LS-BKL-1164

ColourRed, Green, Blue, White, Infrared, UV
Voltage24 V DC (12 V on request)
TypeStandard
Length99 mm

$169.00

Ships in 2-3 weeks

0.35 kg shipping weight

Color Red Green Blue White Infrared UV

Volume pricing, Net 30 terms or a formal quote for purchasing?

Surface light with large-area uniform light emission and high-array LED arrangement for high-brightness planar lighting. Mainly used for perspective contour imaging and large-format uniform illumination.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BKL-1164

Interfaces and I/O

Cable length (mm)	500

Electrical

Voltage	24 V DC (12 V on request)
Power red (W)	3.7
Power white/blue/green (W)	4.62

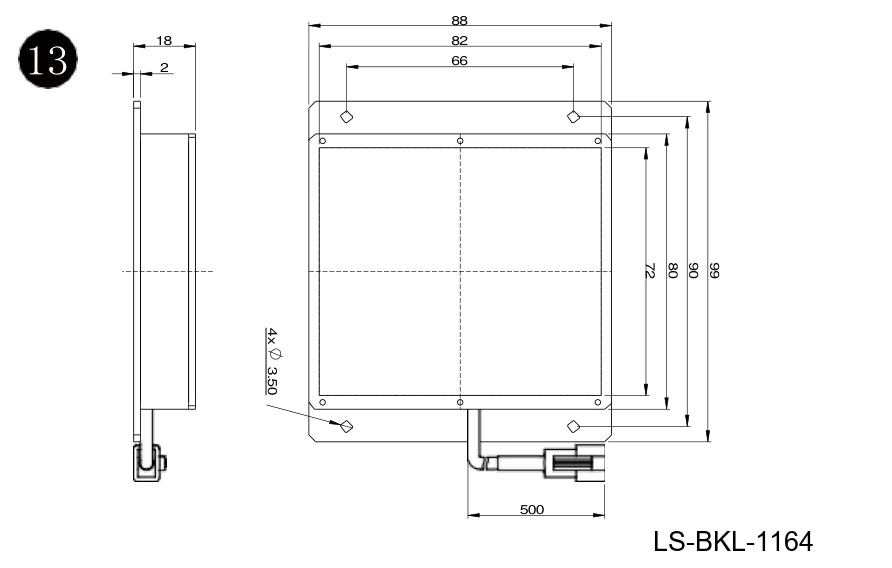

Mechanical

Length (mm)	99
Width (mm)	88
Height (mm)	18
Mounting	4 x dia. 3.5 holes
Shipping weight	0.35 kg

Other models in the Traditional surface light source (LS-BKL-S113) series

See all 38 models

Model	Size / key data	Price	Availability	Link
LS-BKL-1153	Red, Green, Blue, White, Infrared, UV · 15 x 16 mm	$139.00	Ships in 2-3 weeks	View
LS-BKL-1154	Red, Green, Blue, White, Infrared, UV · 19 x 19 mm	$139.00	Ships in 2-3 weeks	View
LS-BKL-1155	Red, Green, Blue, White, Infrared, UV · 34 x 25 mm	$139.00	Ships in 2-3 weeks	View
LS-BKL-1157	Red, Green, Blue, White, Infrared, UV · 35.9 x 32.1 mm	$139.00	Ships in 2-3 weeks	View
LS-BKL-1166	Red, Green, Blue, White, Infrared, UV · 159 x 10 mm	$139.00	Ships in 2-3 weeks	View
LS-BKL-1156	Red, Green, Blue, White, Infrared, UV · 70 x 18 mm	$149.00	Ships in 2-3 weeks	View
LS-BKL-1158	Red, Green, Blue, White, Infrared, UV · 36 x 40 mm	$149.00	Ships in 2-3 weeks	View
LS-BKL-1159	Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request)	$149.00	Ships in 2-3 weeks	View
LS-BKL-1161	Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request)	$149.00	Ships in 2-3 weeks	View
LS-BKL-1160	Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request)	$159.00	Ships in 2-3 weeks	View
LS-BKL-1162	Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request)	$159.00	Ships in 2-3 weeks	View
LS-BKL-1163	Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request)	$159.00	Ships in 2-3 weeks	View
LS-BKL-1170	Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request)	$169.00	Ships in 2-3 weeks	View
LS-BKL-1165	Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request)	$179.00	Ships in 2-3 weeks	View
LS-BKL-1169	Red, Green, Blue, White, Infrared, UV · 120 x 54 mm	$179.00	Ships in 2-3 weeks	View
LS-BKL-1167	Red, Green, Blue, White, Infrared, UV · 82 x 158 mm	$209.00	Ships in 2-3 weeks	View
LS-BKL-1174	Red, Green, Blue, White, Infrared, UV · 150.4 x 100.4 mm	$229.00	Ships in 2-3 weeks	View
LS-BKL-1175	Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request)	$229.00	Ships in 2-3 weeks	View
LS-BKL-1171	Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request)	$259.00	Ships in 2-3 weeks	View
LS-BKL-1172	Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request)	$289.00	Ships in 2-3 weeks	View
LS-BKL-1176	Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request)	$289.00	Ships in 2-3 weeks	View
LS-BKL-1177	Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request)	$289.00	Ships in 2-3 weeks	View
LS-BKL-1180	Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request)	$319.00	Ships in 2-3 weeks	View
LS-BKL-1168	Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request)	$329.00	Ships in 2-3 weeks	View
