Digital controller, 16 ch, 120 W
LS-CTL-0412
- Channels 16
- Output Constant voltage 24 V
$1,019.00
Ships in 2-3 weeks
Representative photo of this series
Backlights
89 x 80 mm traditional surface light source (LS-BKL-1163)
Model LS-BKL-1163-R
- ColourRed, Green, Blue, White, Infrared, UV
- Voltage24 V DC (12 V on request)
- TypeStandard
- Width80 mm
$159.00
Ships in 2-3 weeks
0.3 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LS-BKL-1163: length 89 mm, width 80 mm, height 18 mm, power red 3.17 W.
Surface light with large-area uniform light emission and high-array LED arrangement for high-brightness planar lighting. Mainly used for perspective contour imaging and large-format uniform illumination.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1163 |
|---|
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Electrical
| Voltage | 24 V DC (12 V on request) |
|---|---|
| Power red (W) | 3.17 |
| Power white/blue/green (W) | 3.96 |
Mechanical
| Width (mm) | 80 |
|---|---|
| Length (mm) | 89 |
| Height (mm) | 18 |
| Mounting | 4 x dia. 3.5 through holes |
| Shipping weight | 0.30 kg |
Engineering data
Drive and fit the LS-BKL-1163
Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.
Supply24 V DC
Current at 24 V165 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 3.96 W
Cable length500 mm
Mounting and installation
| Mounting holes | 4 × Ø 3.5 mmthrough |
|---|---|
| Cable | 0.5 m |

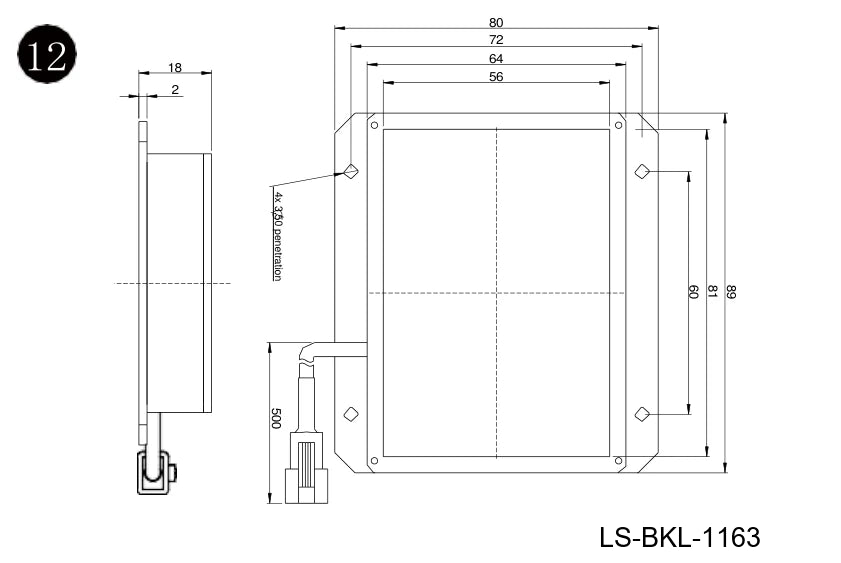

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.
Compatible parts
Fits with this part
Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.
Controllers for this light
7.5 W per channel at 24 V for this 4 W light
4-channel 24 V analog LED light controller
LS-CTL-0461
- Channels 4
- Output 24 V
$150.00
Ships in 3-4 weeks
15 W per channel at 24 V for this 4 W light
2-channel 24 V digital LED light controller, 20 W, RS-232
LS-CTL-0476
- Channels 2
- Output 24 V
$165.00
Ships in 3-4 weeks
10 W per channel at 24 V for this 4 W light
Multi-channel sequencing light controller, 8 ch, 120 W
LS-CTL-0579
- Channels 8
- Output DC 24 V
$399.00
Ships in 2-3 weeks
15 W per channel at 24 V for this 4 W light
16.7 W per channel at 24 V for this 4 W light
20 W per channel at 24 V for this 4 W light
Application studies
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-BKL-0719, the same type of part
Glass, displays and optics
Surface marks on optical lenses
Choose the light path for the defect class instead of treating every visible spot alike.MethodBlue coaxial reflected lightExplore the study
Set up with the LS-BKL-0719, the same type of part
Metal parts and machining
Narrow-gap appearance between plier jaws
Prove the narrow light path before claiming a gap measurement.Light in sourceLS-BKL-0719 · blueExplore the study
Set up with the LS-BKL-1309, the same type of part
Electronics and devices
Printed resistor track appearance
A visual pattern inspection complements an electrical test; it does not replace it.MethodTransmitted white backlightExplore the study
Other models in the Traditional surface light source (LS-BKL-S113) series
See all 38 models| Model | Width | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-1163This model | 80 mm | $159.00 | Ships in 2-3 weeks | |
| LS-BKL-1152 | $139.00 | Ships in 2-3 weeks | View | |
| LS-BKL-1153 | $139.00 | Ships in 2-3 weeks | View | |
| LS-BKL-1154 | $139.00 | Ships in 2-3 weeks | View | |
| LS-BKL-1155 | $139.00 | Ships in 2-3 weeks | View | |
| LS-BKL-1157 | $139.00 | Ships in 2-3 weeks | View | |
| LS-BKL-1166 | $139.00 | Ships in 2-3 weeks | View | |
| LS-BKL-1156 | $149.00 | Ships in 2-3 weeks | View | |
| LS-BKL-1158 | $149.00 | Ships in 2-3 weeks | View | |
| LS-BKL-1159 | $149.00 | Ships in 2-3 weeks | View | |
| LS-BKL-1161 | $149.00 | Ships in 2-3 weeks | View | |
| LS-BKL-1160 | $159.00 | Ships in 2-3 weeks | View | |
| LS-BKL-1162 | 73 mm | $159.00 | Ships in 2-3 weeks | View |
| LS-BKL-1164 | $169.00 | Ships in 2-3 weeks | View | |
| LS-BKL-1170 | $169.00 | Ships in 2-3 weeks | View | |
| LS-BKL-1165 | $179.00 | Ships in 2-3 weeks | View | |
| LS-BKL-1169 | $179.00 | Ships in 2-3 weeks | View | |
| LS-BKL-1167 | $209.00 | Ships in 2-3 weeks | View | |
| LS-BKL-1174 | $229.00 | Ships in 2-3 weeks | View | |
| LS-BKL-1175 | $229.00 | Ships in 2-3 weeks | View | |
| LS-BKL-1171 | $259.00 | Ships in 2-3 weeks | View | |
| LS-BKL-1172 | $289.00 | Ships in 2-3 weeks | View | |
| LS-BKL-1176 | 128 mm | $289.00 | Ships in 2-3 weeks | View |
| LS-BKL-1177 | $289.00 | Ships in 2-3 weeks | View | |
| LS-BKL-1180 | $319.00 | Ships in 2-3 weeks | View |
