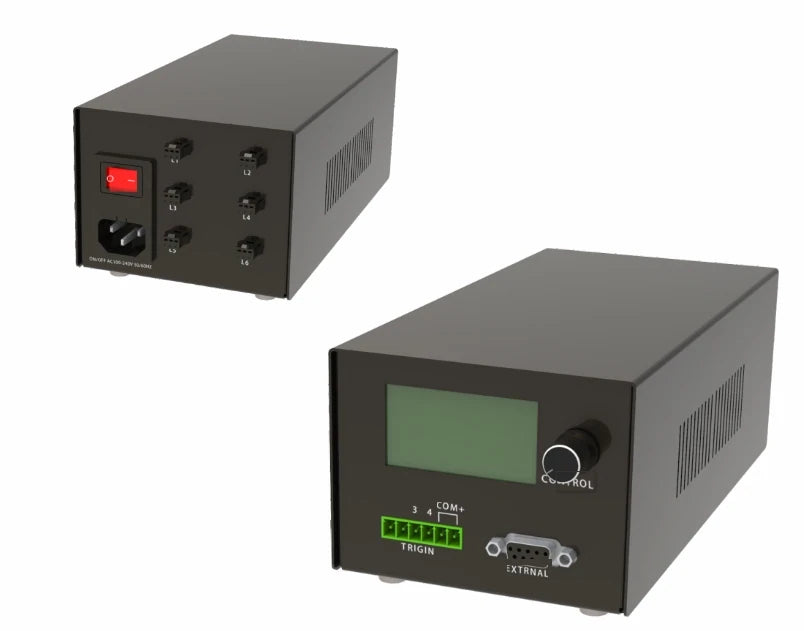

DPC digital controller, 6 ch, 100 W (LS-CTL-0330)

Model LS-CTL-0330

Channels6 ch
Output24V
InputAC 100-240V
Total output100W
ControlRS232/EIA485 optional

$569.00

Ships in 2-3 weeks

0.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

DPC digital controller for standard 24V light, adjustable high-frequency PWM output, 256-level brightness adjustment, 0-999ms delay for light on/off, external high-speed strobe triggering, with serial port.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0330
Adjustment method	PWM, 0-255 level
PWM frequency	Selectable high and low operating frequencies
ID setting	TD: 0-99 (When using EIA-485, one PC can control multiple controllers, up to 100 controllers)
Light on/ light off	Configurable by trigger timing or RS232/EIA-485
Control	digital display / RS232 / EIA485

Interfaces and I/O

Communication port	RS232/EIA485 optional

Environment and compliance

Operating environment	Temperature: 0-40°C, Humidity: 20-85%

Electrical

Output voltage	24V
Single channel output power	48W
Trigger output voltage	DC5-24V
Trigger delay	8us
Overload protection	100% (displayed at the bottom of the screen. Power off to restore)
Input voltage	AC 100-240V
Total output power	100W
Channels	6 ch

Mechanical

Shipping weight	0.50 kg

Other models in the DPC digital controller (LS-CTL-S59) series

See the category

Model	Size / key data	Price	Availability	Link
LS-CTL-0329	4 ch, 60 W	$459.00	Ships in 2-3 weeks	View
