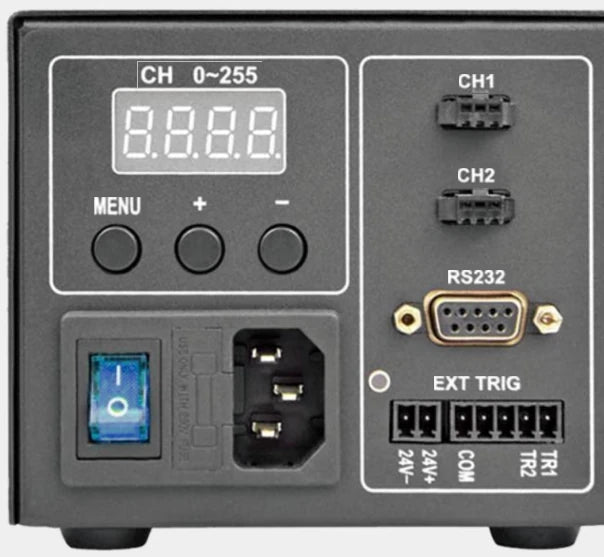

Digital controller, 2/4/8/16 channels (LS-CTL-S82)
  • Digital controller, 2/4/8/16 channels (LS-CTL-S82)

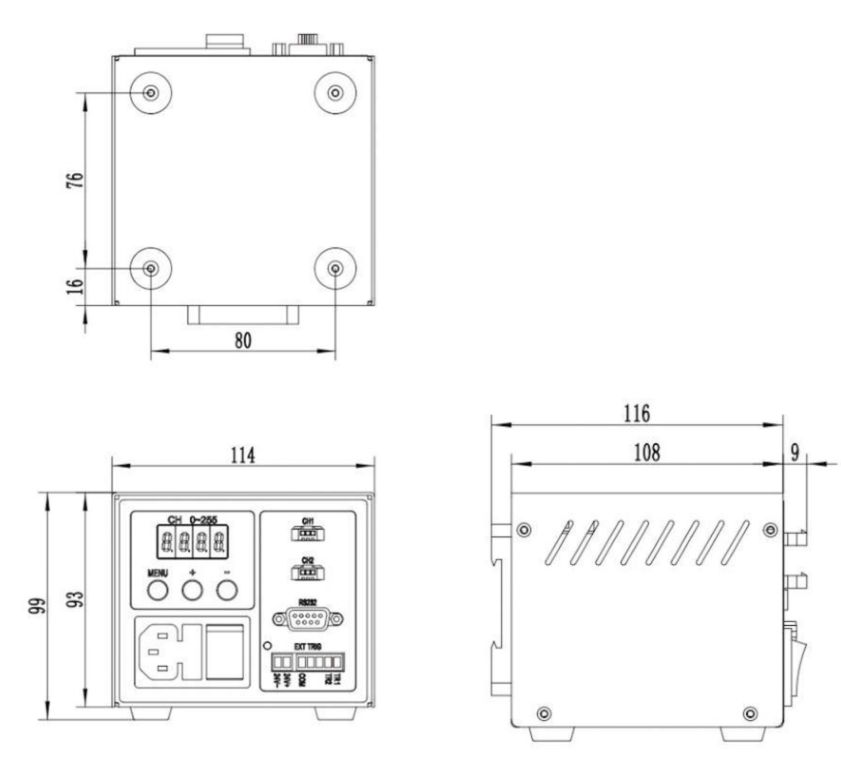

  • LS-CTL-0410 dimensions (mm)

Representative photo of this series

Light controllers

Digital controller, 16 ch, 120 W (LS-CTL-0412)

Model LS-CTL-0412

  • Channels16
  • Total output120 W
  • Control9600-115200bps optional
  • TriggerEdge + level trigger
$1,019.00

Ships in 2-3 weeks

1.05 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Digital controller, 16 ch, 120 W (LS-CTL-0412)LS-CTL-0412

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Support RS232 communication. Built-in 24V switching power supply. Low trigger response time.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTL-0412
Working mode0: Normally extinguished; 1: Bright; 2: Millisecond strobe; 3: Microsecond strobe
Controldigital (buttons, 4-digit display) / RS232

Interfaces and I/O

Communication baud rate9600-115200bps optional

Light

Brightness level255 levels
Luminous modeNormal light, normal extinction, strobe
Connected light source type10mA~2A 24V power supply

Environment and compliance

Operating temperature-5~50°C

Electrical

Maximum input voltageAC220V
Maximum output voltage24V
Overheat protection65W none, all others have
Short-circuit protectionHAVE
Trigger modeEdge + level trigger
Driving modePWM
Built-in power supply power120W
Number of channels16
Maximum output current of single channel2A
Millisecond strobe time1~99ms
Microsecond strobe time10~990us
Total output (W)120

Mechanical

Dimension113×123×163mm
Shipping weight1.05 kg

Other models in the Digital controller, 2/4/8/16 channels (LS-CTL-S82) series

See all 13 models
ModelSize / key dataPriceAvailabilityLink
LS-CTL-0410 2 ch, 65 W $369.00 Ships in 2-3 weeks View
LS-CTL-0414 2 ch, 120 W $399.00 Ships in 2-3 weeks View
LS-CTL-0418 2 ch, 200 W $459.00 Ships in 2-3 weeks View
LS-CTL-0411 4 ch, 65 W $459.00 Ships in 2-3 weeks View
LS-CTL-0415 4 ch, 120 W $499.00 Ships in 2-3 weeks View
LS-CTL-0419 4 ch, 200 W $539.00 Ships in 2-3 weeks View
LS-CTL-0409 8 ch, 65 W $639.00 Ships in 2-3 weeks View
LS-CTL-0413 8 ch, 120 W $669.00 Ships in 2-3 weeks View
LS-CTL-0417 8 ch, 200 W $719.00 Ships in 2-3 weeks View
LS-CTL-0416 16 ch, 200 W $1,069.00 Ships in 2-3 weeks View
LS-CTL-0420 16 ch, 350 W $1,579.00 Ships in 2-3 weeks View
LS-CTL-0421 16 ch, 450 W $1,659.00 Ships in 2-3 weeks View
