Light controllers

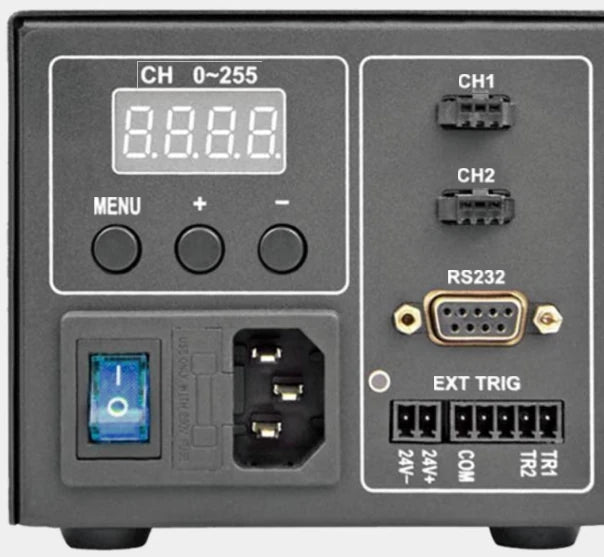

Digital controller, 2/4/8/16 channels (LS-CTL-S82)
- 13 models
- from $369.00
- Series LS-CTL-S82
The Digital controller, 2/4/8/16 channels (LS-CTL-S82) is a range of 13 light controllers from LumaSpec Vision, from $369.00. It comes in 13 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 2 ch, 120 W, 2 ch, 200 W, 2 ch, 65 W, 4 ch, 120 W, 4 ch, 200 W, 4 ch, 65 W, 8 ch, 120 W, 8 ch, 200 W, 8 ch, 65 W, 16 ch, 120 W, 16 ch, 200 W, 16 ch, 350 W, 16 ch, 450 W
- Output
- Constant voltage 24 V
- Channels
- 2 channels, 4 channels, 8 channels, 16 channels
- Control
- Digital
- Feature
- Strobe
Features
- Support RS232 communication
- Built-in 24V switching power supply
- Low trigger response time
- Support external trigger mode
- Support millisecond strobe and microsecond strobe
- Brightness and mode can be set manually
- 5~24V trigger, adaptable to high and low level trigger modes
- Small size, easy to install, screw mounting or C45 card rail mounting
All 13 models in the Digital controller, 2/4/8/16 channels (LS-CTL-S82)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CTL-0410 | 2 ch, 65 W | 2.5A/4A | 2 | 65 | $369.00 | View |
| LS-CTL-0414 | 2 ch, 120 W | 2.5A/4A | 2 | 120 | $399.00 | View |
| LS-CTL-0418 | 2 ch, 200 W | 2.5A/4A | 2 | 200 | $459.00 | View |
| LS-CTL-0411 | 4 ch, 65 W | 2.5A/4A | 4 | 65 | $459.00 | View |
| LS-CTL-0415 | 4 ch, 120 W | 2.5A/4A | 4 | 120 | $499.00 | View |
| LS-CTL-0419 | 4 ch, 200 W | 2.5A/4A | 4 | 200 | $539.00 | View |
| LS-CTL-0409 | 8 ch, 65 W | 2A/3A | 8 | 65 | $639.00 | View |
| LS-CTL-0413 | 8 ch, 120 W | 2A/3A | 8 | 120 | $669.00 | View |
| LS-CTL-0417 | 8 ch, 200 W | 2A/3A | 8 | 200 | $719.00 | View |
| LS-CTL-0412 | 16 ch, 120 W | 2A | 16 | 120 | $1,019.00 | View |
| LS-CTL-0416 | 16 ch, 200 W | 2A | 16 | 200 | $1,069.00 | View |
| LS-CTL-0420 | 16 ch, 350 W | 2A | 16 | 350 | $1,579.00 | View |
| LS-CTL-0421 | 16 ch, 450 W | 2A | 16 | 450 | $1,659.00 | View |
