Light controllers

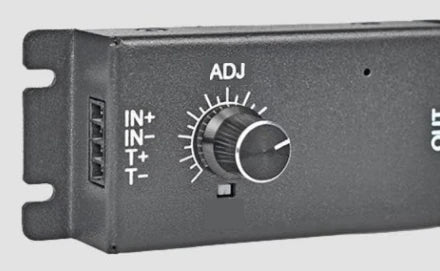

Analog controller (LS-CTL-S29)
- 4 models
- from $189.00
- Series LS-CTL-S29
The Analog controller (LS-CTL-S29) is a range of 4 light controllers from LumaSpec Vision, from $189.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 2 ch, 40 W, 2 ch, 65 W, 4 ch, 120 W, 4 ch, 65 W
- Output
- Constant voltage 24 V, Constant current
- Channels
- 2 channels, 4 channels
- Control
- Analog
Features
- Analog constant voltage control
- Support external trigger mode
- Low trigger response time
- Knob stepless linear adjustment of brightness
- Normally bright and normally off mode can be switched
- 5-24V trigger, adaptable to high and low level trigger modes
- Convenient installation, screw mounting or C45 rail mounting
All 4 models in the Analog controller (LS-CTL-S29)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CTL-0151 | 2 ch, 40 W | 2 | 40 | $189.00 | View | |
| LS-CTL-0152 | 2 ch, 65 W | 2 | 65 | 121×118×90mm | $209.00 | View |
| LS-CTL-0153 | 4 ch, 65 W | 4 | 65 | 121×128×105mm | $259.00 | View |
| LS-CTL-0154 | 4 ch, 120 W | 4 | 120 | 121×128×105mm | $289.00 | View |
