Light controllers

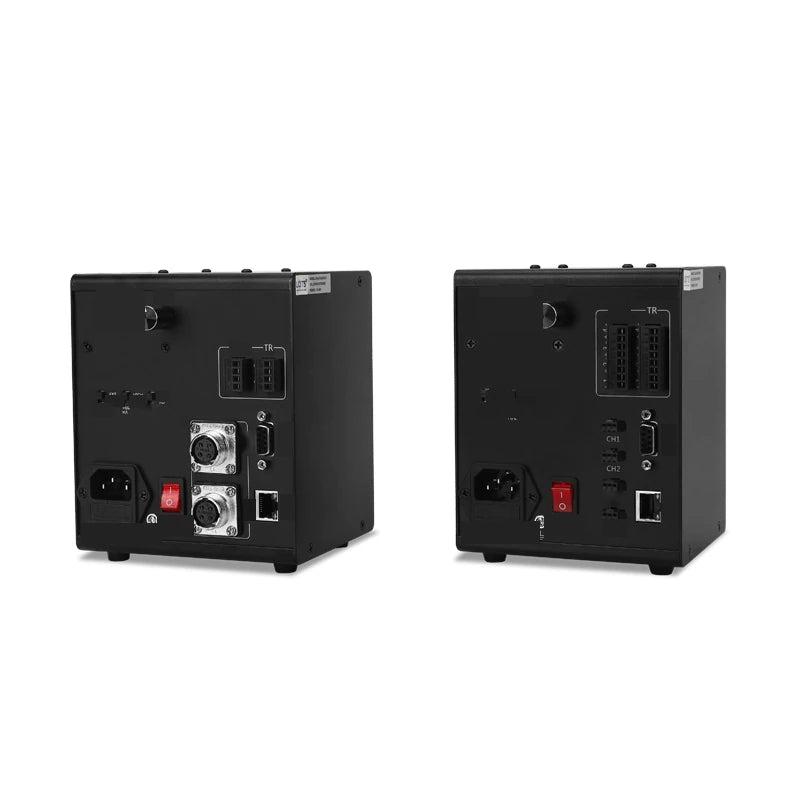

Brighten strobe controller (LS-CTL-S12)
- 9 models
- from $649.00
- Series LS-CTL-S12
The Brighten strobe controller (LS-CTL-S12) is a range of 9 light controllers from LumaSpec Vision, from $649.00. It comes in 2 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 2 ch, 4 ch
- Output
- Constant voltage 48 V
- Channels
- 2 channels, 4 channels
- Control
- Analog
- Feature
- Strobe
Features
- 12us fast trigger response
- Setting up internal trigger frequency
- Brighten 2-10 times instantly, pulse width 0-999us adjustable
- Delay time adjustment function, 0-999us adjustable
- Filter time adjustment function, 0-999us/1-999ms adjustable
- Support RS232 serial and Ethernet communication
- The light outputs a 12V pulse signal for triggering the camera synchronously
All 9 models in the Brighten strobe controller (LS-CTL-S12)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CTL-0083 | 2 ch | 2 | 0-999us (adjustable) | 1-200Hz (adjustable) | $649.00 | View |
| LS-CTL-0085 | 2 ch | 2 | 0-999us (adjustable) | 1-200Hz (adjustable) | $649.00 | View |
| LS-CTL-0088 | 2 ch | 2 | 0-999us (adjustable) | 1-200Hz (adjustable) | $649.00 | View |
| LS-CTL-0089 | 2 ch | 2 | 0-100us (adjustable) | 1-50Hz (adjustable) | $649.00 | View |
| LS-CTL-0084 | 4 ch | 4 | 0-999us (adjustable) | 1-200Hz (adjustable) | $789.00 | View |
| LS-CTL-0086 | 4 ch | 4 | 0-999us (adjustable) | 1-200Hz (adjustable) | $789.00 | View |
| LS-CTL-0090 | 4 ch | 4 | 0-999us (adjustable) | 1-200Hz (adjustable) | $789.00 | View |
| LS-CTL-0087 | 4 ch | 4 | 0-100us (adjustable) | 1-50Hz (adjustable) | $789.00 | View |
| LS-CTL-0091 | 4 ch | 4 | 0-100us (adjustable) | 1-50Hz (adjustable) | $789.00 | View |
