Constant current controller (LS-CTL-S06)

Light controllers

Constant current controller (LS-CTL-S06)

  • 11 models
  • from $189.00
  • Series LS-CTL-S06

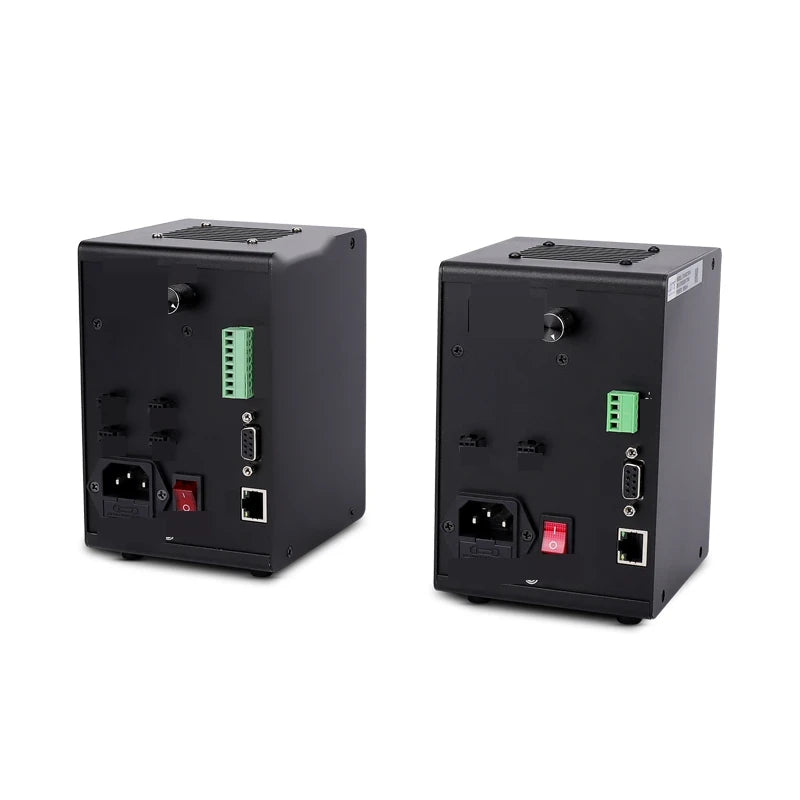

The Constant current controller (LS-CTL-S06) is a range of 11 light controllers from LumaSpec Vision, from $189.00. It comes in 9 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 11 models Series datasheet (PDF)

The series at a glance

Sizes / versions
1 ch, 8.5 W, 2 ch, 10 W, 2 ch, 2 W, 2 ch, 20 W, 2 ch, 4 W, 2 ch, 6 W, 4 ch, 12 W, 4 ch, 4 W, 4 ch, 8 W
Output
Constant current
Channels
1 channel, 2 channels, 4 channels
Control
Analog
Feature
Constant current

Features

  • Stable output current, good linearity
  • RS232 serial communication
  • No flash at low exposure time
  • External trigger

All 11 models in the Constant current controller (LS-CTL-S06)

Link
LS-CTL-00451 ch, 8.5 W18.5W0-700mA$189.00View
LS-CTL-00352 ch, 2 W21W0-350mA$219.00View
LS-CTL-00372 ch, 4 W22W0-700mA$219.00View
LS-CTL-00392 ch, 6 W23W0-1000mA$219.00View
LS-CTL-00412 ch, 10 W25W0-1500mA$219.00View
LS-CTL-00442 ch, 10 W25W0-400mA$219.00View
LS-CTL-00422 ch, 20 W25W0-1500mA$229.00View
LS-CTL-00432 ch, 20 W210W0-2500mA$229.00View
LS-CTL-00364 ch, 4 W41W0-350mA$289.00View
LS-CTL-00384 ch, 8 W42W0-700mA$289.00View
LS-CTL-00404 ch, 12 W43W0-1000mA$289.00View
