Constant current controller (LS-CTL-S06)

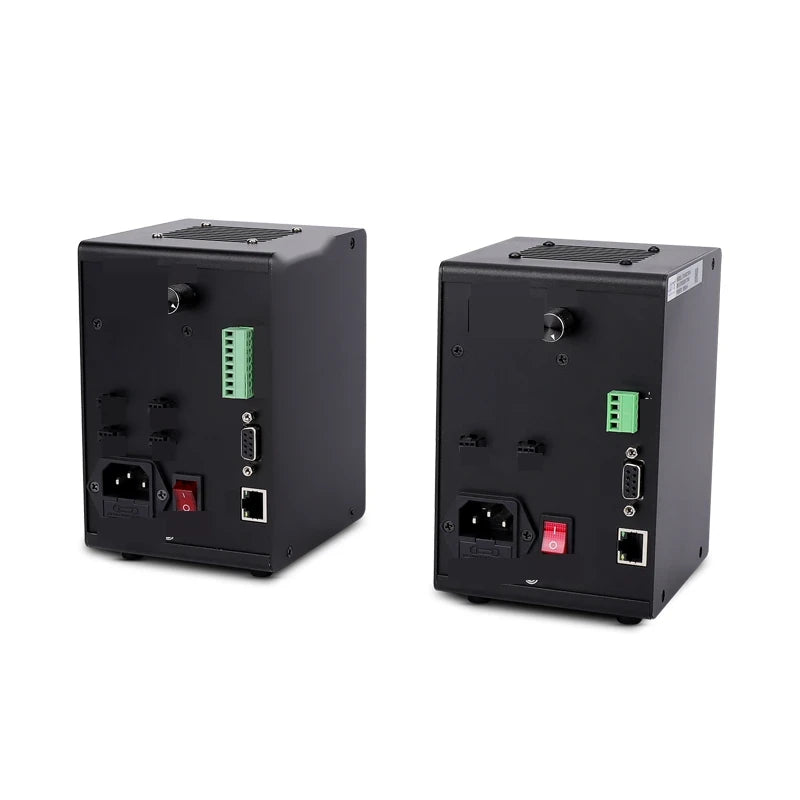

Representative photo of this series

Light controllers

Constant current controller, 2 ch, 4 W, output current 0-700 mA per channel (LS-CTL-0037)

Model LS-CTL-0037

Channels2
InputAC 100-240V
Total output4W
ControlRS232

$219.00

Ships in 2-3 weeks

0.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Stable output current, good linearity. RS232 serial communication. LAN ethernet communication.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0037
Constant on / off switch	H mode set by encoder knob: H1 constant on, H0 constant off
Product	Spot light controller
Control	Manual encoder knob adjustment, PC remote adjustment

Interfaces and I/O

Communication mode	RS232

Light

Luminance adjustment method	Manual encoder knob adjustment, PC remote adjustment
Luminance adjustment level	256 Level

Environment and compliance

Operating environment	Humidity 20%-85%RH (frost free), temperature 0°C-50°C
Storage environment	Humidity 20%-85%RH (frost free), temperature 0°C-60°C

Computing

Memory function	Brightness parameters can be set to not be saved or to be automatically saved when power is cut off

Electrical

Trigger voltage	High level 5-24V effective
Input voltage	AC 100-240V
Input frequency range	50/60Hz
Drive mode	Constant-current
Baud rate	19200bps
Extenal trigger voltage	5-24V
One way output current	0-700mA
Total output power	4W
One way max. output power	2W
Number of channels	2

Mechanical

Mounting holes	4-M3 (the 4 feet can be removed and used as mounting holes)
Mounting	DIN rail mount
Shipping weight	0.50 kg

Other models in the Constant current controller (LS-CTL-S06) series

See all 11 models

Model	Size / key data	Price	Availability	Link
LS-CTL-0045	1 ch, 8.5 W	$189.00	Ships in 2-3 weeks	View
LS-CTL-0035	2 ch, 2 W	$219.00	Ships in 2-3 weeks	View
LS-CTL-0039	2 ch, 6 W	$219.00	Ships in 2-3 weeks	View
LS-CTL-0041	2 ch, 10 W	$219.00	Ships in 2-3 weeks	View
LS-CTL-0044	2 ch, 10 W	$219.00	Ships in 2-3 weeks	View
LS-CTL-0042	2 ch, 20 W	$229.00	Ships in 2-3 weeks	View
LS-CTL-0043	2 ch, 20 W	$229.00	Ships in 2-3 weeks	View
LS-CTL-0036	4 ch, 4 W	$289.00	Ships in 2-3 weeks	View
LS-CTL-0038	4 ch, 8 W	$289.00	Ships in 2-3 weeks	View
LS-CTL-0040	4 ch, 12 W	$289.00	Ships in 2-3 weeks	View
