Representative photo of this series
Light controllers
Constant current controller, 1 ch, 8.5 W (LS-CTL-0045)
Model LS-CTL-0045
- Channels1
- InputAC 100-240V
- Total output8.5W
- ControlRS232
$189.00
Ships in 2-3 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Stable output current, good linearity. RS232 serial communication. LAN ethernet communication.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0045 |
|---|---|
| Constant on / off switch | H mode set by encoder knob: H1 constant on, H0 constant off |
| Product | Structure light controller |
| Control | Manual encoder knob adjustment, PC remote adjustment |
Interfaces and I/O
| Communication mode | RS232 |
|---|
Light
| Luminance adjustment method | Manual encoder knob adjustment, PC remote adjustment |
|---|---|
| Luminance adjustment level | 256 Level |
Environment and compliance
| Operating environment | Humidity 20%-85%RH (frost free), temperature 0°C-50°C |
|---|---|
| Storage environment | Humidity 20%-85%RH (frost free), temperature 0°C-60°C |
Computing
| Memory function | Brightness parameters can be set to not be saved or to be automatically saved when power is cut off |
|---|
Electrical
| Trigger voltage | High level 5-24V effective |
|---|---|
| Input voltage | AC 100-240V |
| Input frequency range | 50/60Hz |
| Drive mode | Constant-current |
| Baud rate | 19200bps |
| Extenal trigger voltage | 5-24V |
| One way output current | 0-700mA |
| Total output power | 8.5W |
| One way max. output power | 8.5W |
| Number of channels | 1 |

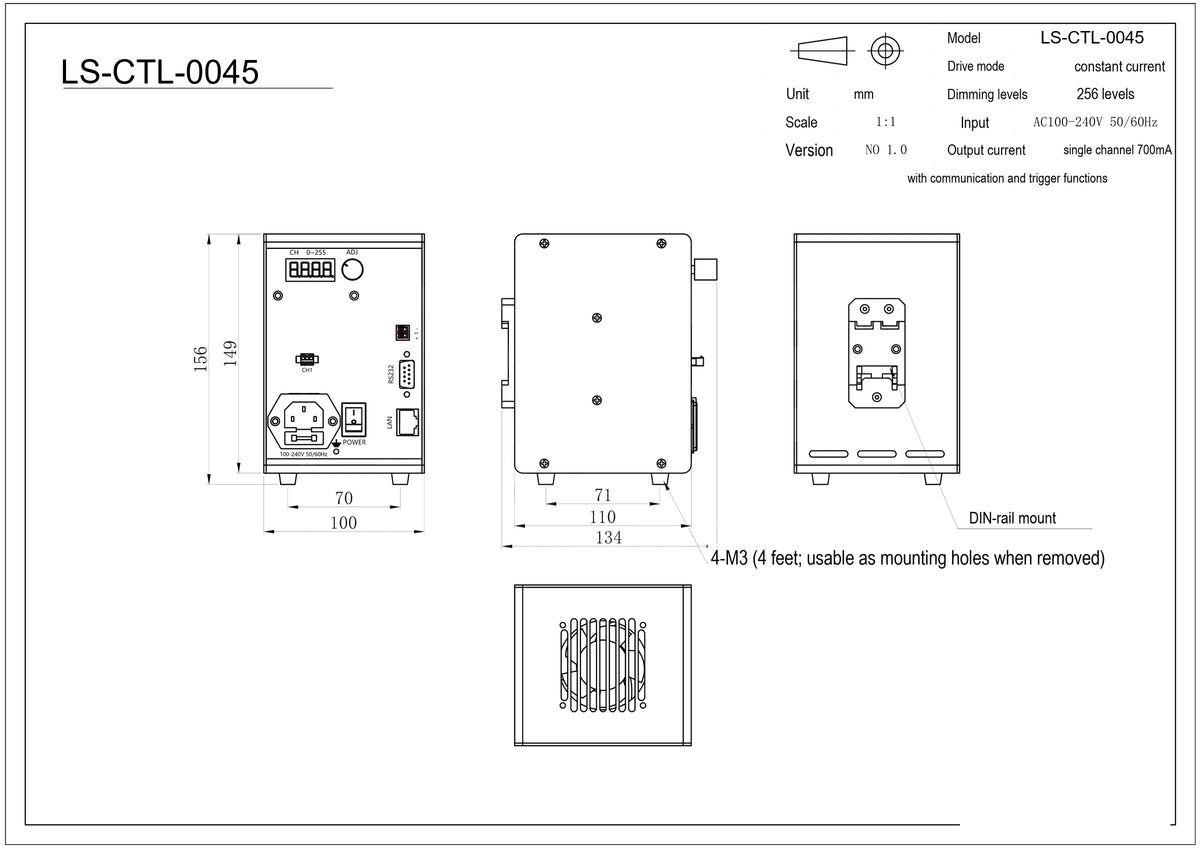

Mechanical
| Mounting holes | 4-M3 (the 4 feet can be removed and used as mounting holes) |
|---|---|
| Mounting | DIN rail mount |
| Shipping weight | 0.50 kg |
Other models in the Constant current controller (LS-CTL-S06) series
See all 11 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CTL-0035 | 2 ch, 2 W | $219.00 | Ships in 2-3 weeks | View |
| LS-CTL-0037 | 2 ch, 4 W | $219.00 | Ships in 2-3 weeks | View |
| LS-CTL-0039 | 2 ch, 6 W | $219.00 | Ships in 2-3 weeks | View |
| LS-CTL-0041 | 2 ch, 10 W | $219.00 | Ships in 2-3 weeks | View |
| LS-CTL-0044 | 2 ch, 10 W | $219.00 | Ships in 2-3 weeks | View |
| LS-CTL-0042 | 2 ch, 20 W | $229.00 | Ships in 2-3 weeks | View |
| LS-CTL-0043 | 2 ch, 20 W | $229.00 | Ships in 2-3 weeks | View |
| LS-CTL-0036 | 4 ch, 4 W | $289.00 | Ships in 2-3 weeks | View |
| LS-CTL-0038 | 4 ch, 8 W | $289.00 | Ships in 2-3 weeks | View |
| LS-CTL-0040 | 4 ch, 12 W | $289.00 | Ships in 2-3 weeks | View |
