Light controllers

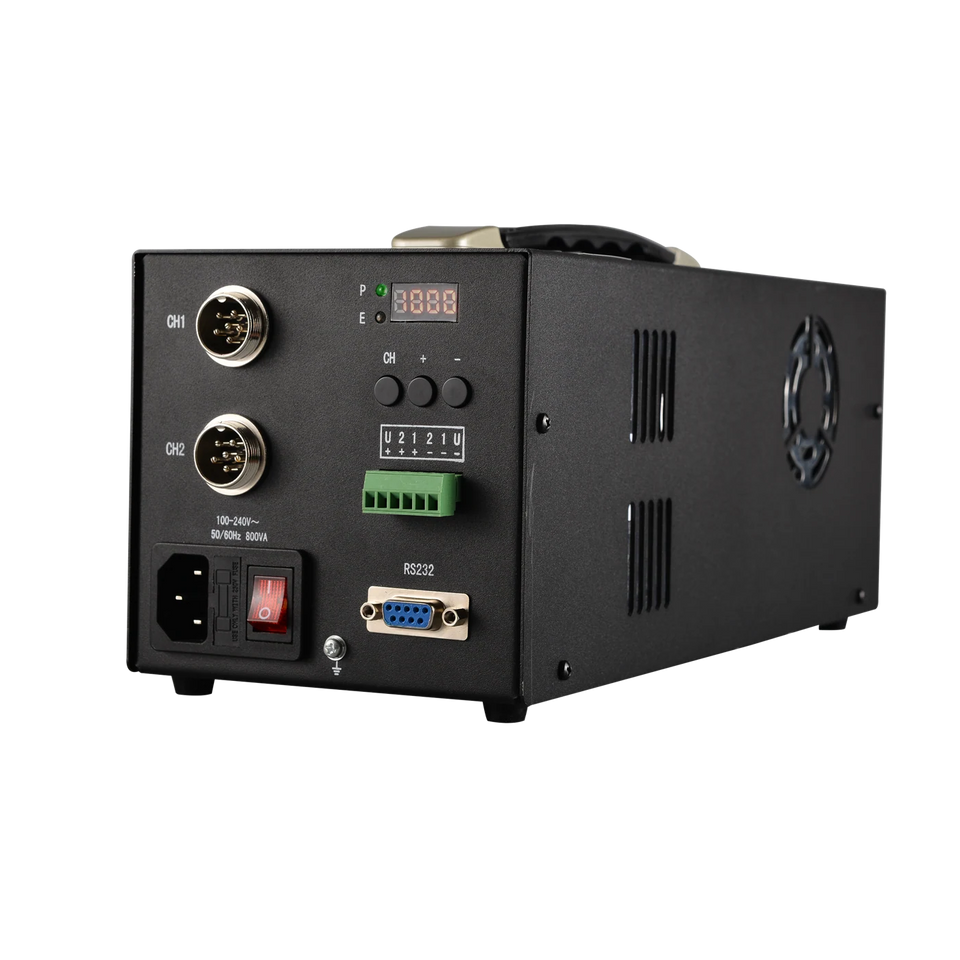

Line light controllers (LS-CTL-S97)
- 8 models
- from $209.00
- Series LS-CTL-S97
The Line light controllers (LS-CTL-S97) is a range of 8 light controllers from LumaSpec Vision, from $209.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Output
- Constant voltage 24 V, Constant voltage 48 V, Constant current
- Channels
- 1 channel, 2 channels, 4 channels
- Control
- Analog, Digital
Features
- 3 light control methods: front panel, RS-232 serial and RJ45 Ethernet
- External trigger port lights the light only when needed, extending its life
- Power-loss memory, short-circuit protection and overload protection
- 2 drive modes, constant voltage and constant current, for more stable light output
- Automatically detects the rated current of the light to drive lights of different specifications
All 8 models in the Line light controllers (LS-CTL-S97)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CTL-0498 | Serial port | 100 ~ 240 VAC, 50/60 Hz | 1 | 12.5 A max | $209.00 | View |
| LS-CTL-0500 | Serial port | 180 ~ 240 VAC, 50/60 Hz | 1 | 12 A max | $229.00 | View |
| LS-CTL-0497 | Serial port | 24 VDC | 1 | 12.5 A max | $239.00 | View |
| LS-CTL-0502 | Serial port | 100 ~ 240 VAC, 50/60 Hz | 2 | 12.5 A max | $259.00 | View |
| LS-CTL-0501 | Serial port | 180 ~ 240 VAC, 50/60 Hz | 2 | 6 A max | $259.00 | View |
| LS-CTL-0499 | Serial port, GigE | 100 ~ 240 VAC, 50/60 Hz | 2 | 6 A max | $409.00 | View |
| LS-CTL-0503 | GigE | 180 ~ 240 VAC, 50/60 Hz | 4 | 10 A max | $759.00 | View |
| LS-CTL-0504 | GigE | 180 ~ 240 VAC, 50/60 Hz | 4 | 20 A max | $1,379.00 | View |
