Light controllers

Analog constant-current light controller, 600W, 1 channel, 19M-6G connector, Line light controller (LS-CTL-0500)

Model LS-CTL-0500

Output48 VDC
Input180 ~ 240 VAC, 50/60 Hz
ControlRS-232
TriggerExternal trigger and internal trigger

$229.00

Ships in 2-3 weeks

4.97 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Analog constant-current light controller, 600W, 1 channel, 19M-6G connector, Line light controller. 3 light control methods: front panel, RS-232 serial and RJ45 Ethernet External trigger port lights the light only when needed, extending its life

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0500
Lighting mode	Constant current
PWM frequency	Not supported
Dimming mode	Panel buttons, Serial communication
Lighting response time	<150 μs
Cooling mode	Forced cooling (built-in fan)

Interfaces and I/O

Communication protocol	RS-232
Applicable product	High-power light, Line light
Power supply interface	AC socket
Console interface	Serial port
Digital I/O	2 inputs, 1 internal power output
Lighting output connector	2 × 19M-6G

Light

Brightness level	0 ~ 255

Environment and compliance

Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	20% RH to 85% RH (no condensation)
Ingress protection	IP30 (when properly installed)
Certification	CE, RoHS

Electrical

Drive mode	Constant current
Strobe overdrive	Not supported
Channel	1
Trigger mode	External trigger and internal trigger
Input voltage	180 ~ 240 VAC, 50/60 Hz
Input current	7 A
Output current	12 A max
Output power	600 W max
Output current for each channel	12 A max
Trigger in	Level signal DC 5 to 24 V / 6 mA
Trigger out	Not supported
Output voltage	48 VDC

Mechanical

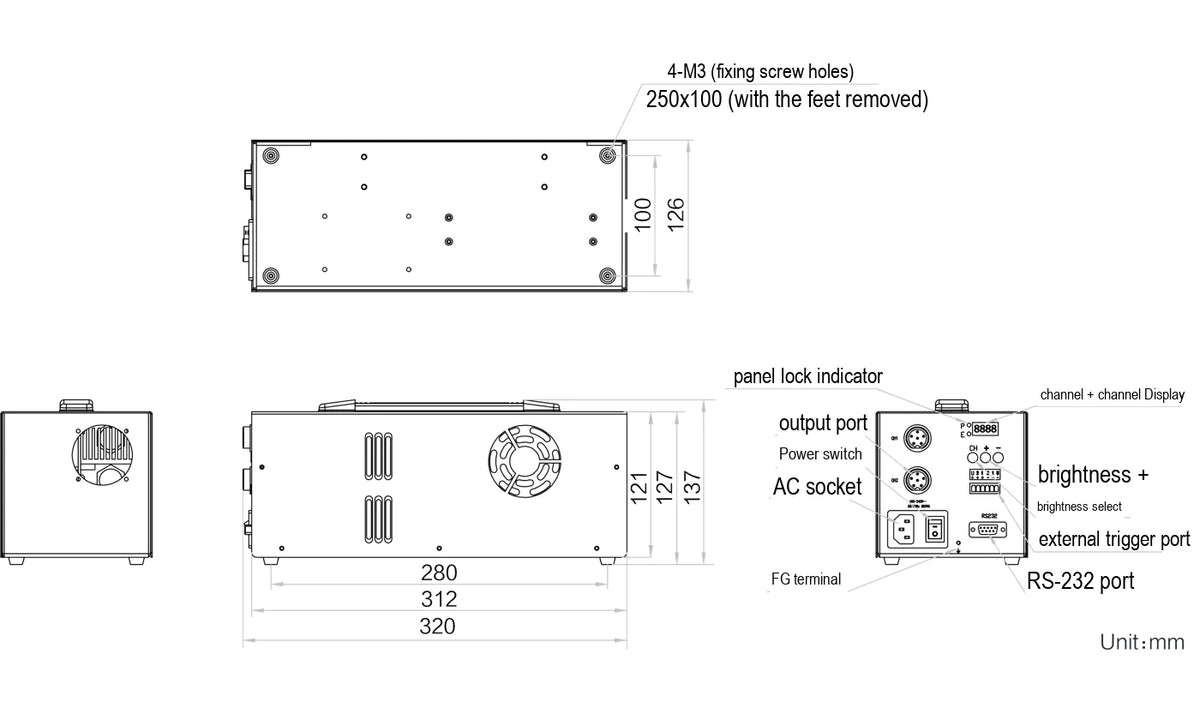

Dimension	320 mm × 126 mm × 137 mm
Shell material	Galvanized steel sheet
Weight	Approx. 3480 g
Shipping weight (estimated)	4.97 kg

Downloads

Features

3 light control methods: front panel, RS-232 serial and RJ45 Ethernet
External trigger port lights the light only when needed, extending its life
Power-loss memory, short-circuit protection and overload protection
2 drive modes, constant voltage and constant current, for more stable light output
Automatically detects the rated current of the light to drive lights of different specifications
