Light controllers

Strobe line light controller, Total output power 1000W/48V, 4 channels (CH1/2 dual connector, CH3/4 single connector) (LS-CTL-0503)

Model LS-CTL-0503

Output48 VDC
Input180 ~ 240 VAC, 50/60 Hz
ControlGigE
TriggerExternal trigger and internal trigger

$759.00

Ships in 2-3 weeks

5.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Strobe line light controller, Total output power 1000W/48V, 4 channels (CH1/2 dual connector, CH3/4 single connector), Up to 10A per channel, 19M-6G connector (fits lights with 19M-6H connector), 4 external trigger inputs (RS422 differential), With GigE port, Max. frequency 100 kHz, For time-division cameras. 3 light control methods: front panel, RS-232 serial and RJ45 Ethernet External trigger port lights the light only when needed, extending its life

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0503
Lighting mode	Pulsed
PWM frequency	Not supported
Dimming mode	Illumination pulse width
Lighting response time	< 1 us
Cooling mode	Forced cooling (built-in fan)

Interfaces and I/O

Communication protocol	GigE
Applicable product	High-power light, Line light
Power supply interface	AC socket
Console interface	GigE
Digital I/O	3× RS-422
Lighting output connector	4 × 19M-6G

Light

Brightness level	Not supported

Environment and compliance

Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	20% RH to 85% RH (no condensation)
Ingress protection	IP50 (when properly installed)
Certification	CE, RoHS

Electrical

Drive mode	Constant voltage
Strobe overdrive	Supported
Channel	4
Trigger mode	External trigger and internal trigger
Input voltage	180 ~ 240 VAC, 50/60 Hz
Input current	7.5 A
Output current	40 A max
Output power	1000 W max
Output current for each channel	10 A max
Trigger in	Level signal DC 5 to 24 V / 6 mA
Trigger out	Not supported
Output voltage	48 VDC

Mechanical

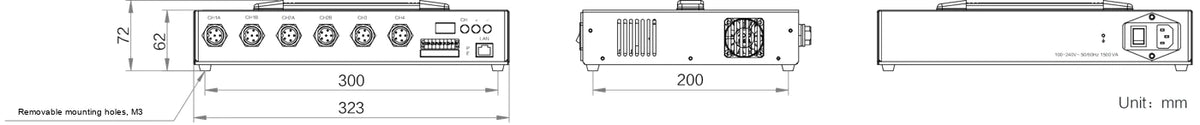

Dimension	323 mm × 72 mm × 200 mm
Shell material	Galvanized steel sheet
Weight	Approx. 3500 g
Shipping weight (estimated)	5.00 kg

Downloads

Features

3 light control methods: front panel, RS-232 serial and RJ45 Ethernet
External trigger port lights the light only when needed, extending its life
Power-loss memory, short-circuit protection and overload protection
2 drive modes, constant voltage and constant current, for more stable light output
Automatically detects the rated current of the light to drive lights of different specifications
