Light controllers

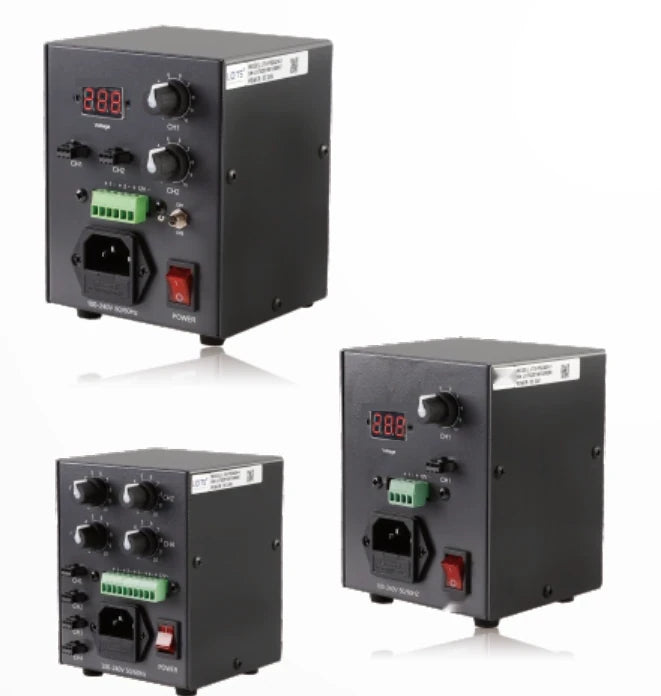

Analog controller, high cost-effective (LS-CTL-S122)
- 3 models
- from $199.00
- Series LS-CTL-S122
The Analog controller, high cost-effective (LS-CTL-S122) is a range of 3 light controllers from LumaSpec Vision, from $199.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 1 ch, 24 W, 2 ch, 24 W, 4 ch, 24 W
- Output
- Constant voltage 24 V
- Channels
- 1 channel, 2 channels, 4 channels
- Control
- Analog
- Feature
- Constant current
Features
- Simple structure, compact volume, DIN guide rail installation
- External trigger function
- Luminance stepless adjustment
- Voltage display function
- Normal on / normal closed mode optional
- 12V 500mA output to supply other devices (e.g. camera)
- Low level trigger: input 0-1.5V to the +/- port (or short +/-) to trigger
- Trigger delay T1 <= 200us, T3 <= 200us
All 3 models in the Analog controller, high cost-effective (LS-CTL-S122)
| Link | ||||
|---|---|---|---|---|
| LS-CTL-0566 | 1 ch, 24 W | 1 | $199.00 | View |
| LS-CTL-0567 | 2 ch, 24 W | 2 | $229.00 | View |
| LS-CTL-0568 | 4 ch, 24 W | 4 | $299.00 | View |
