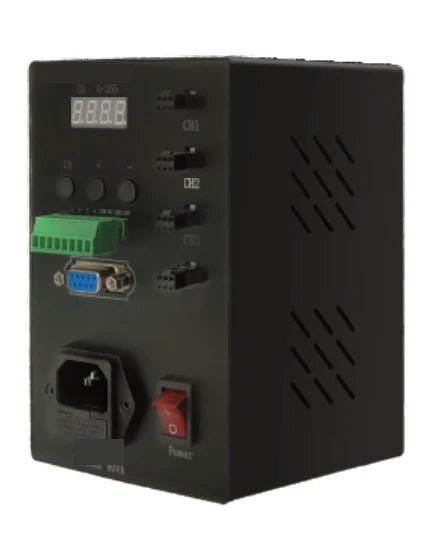

DPC digital controller (LS-CTL-S63)

Light controllers

DPC digital controller (LS-CTL-S63)

  • 18 models
  • from $219.00
  • Series LS-CTL-S63

The DPC digital controller (LS-CTL-S63) is a range of 18 light controllers from LumaSpec Vision, from $219.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 18 models Series datasheet (PDF)

The series at a glance

Sizes / versions
2 ch, 4 ch, 6 ch, 8 ch, 12 ch
Output
Constant voltage 24 V
Channels
2 channels, 4 channels, 6 channels, 8 channels, 12 channels
Control
Digital
Feature
Constant current

Features

  • 256 levels digital control
  • Support RS232 communication
  • Memory function while power off
  • Overload protection function
  • High speed optocoupler isolation trigger
  • Constant voltage output controlled by panel or RS232

All 18 models in the DPC digital controller (LS-CTL-S63)

Link
LS-CTL-03492 chAC100-240V 50/60Hz22CH$219.00View
LS-CTL-03502 chAC100-240V 50/60Hz22CH$219.00View
LS-CTL-03642 chDC24V22CH$219.00View
LS-CTL-03542 chAC100-240V 50/60Hz22CH$229.00View
LS-CTL-03582 chAC100-240V 50/60Hz22CH$229.00View
LS-CTL-03484 chAC100-240V 50/60Hz44CH$289.00View
LS-CTL-03514 chAC100-240V 50/60Hz44CH$289.00View
LS-CTL-03554 chAC100-240V 50/60Hz44CH$289.00View
LS-CTL-03594 chAC100-240V 50/60Hz44CH$289.00View
LS-CTL-03654 chDC24V44CH$289.00View
LS-CTL-03634 chAC100-240V 50/60Hz44CH$329.00View
LS-CTL-03526 chAC100-240V 50/60Hz66CH$359.00View
LS-CTL-03566 chAC100-240V 50/60Hz66CH$359.00View
LS-CTL-03606 chAC100-240V 50/60Hz66CH$359.00View
LS-CTL-03538 chAC100-240V 50/60Hz88CH$429.00View
LS-CTL-03578 chAC100-240V 50/60Hz88CH$429.00View
LS-CTL-03618 chAC100-240V 50/60Hz88CH$429.00View
LS-CTL-036212 chAC100-240V 50/60Hz1212CH$559.00View
