Light controllers

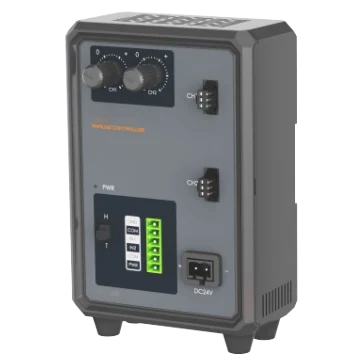

Analog light controllers (LS-CTL-S21)
- 13 models
- from $149.00
- Series LS-CTL-S21
The Analog light controllers (LS-CTL-S21) is a range of 13 light controllers from LumaSpec Vision, from $149.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Output
- Constant voltage 24 V
- Channels
- 1 channel, 2 channels, 4 channels
- Control
- Analog
Features
- Adopts constant voltage control and supports infinitely variable brightness.
- Adopts knob control on control panel, and plug and play.
- Provides multichannel opto-isolated inputs.
- Supports installation via slide rail or screw hole.
- Supports overcurrent, overload, short circuit protection.
- PoE power, compliant with IEEE 802.3af/at
- Constant-voltage linear output, plug and play
- Continuous and strobe modes for flexible light control
All 13 models in the Analog light controllers (LS-CTL-S21)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CTL-0113 | 5.08 mm × 2 terminal block | 24 VDC | 2-channel | Max. 1 A | $149.00 | View |
| LS-CTL-0111 | 3.5 mm × 2 terminal block | 20 VDC to 24 VDC | 2-channel | Max. 0.5 A | $179.00 | View |
| LS-CTL-0112 | RJ45 port | 37 to 57 VDC (PoE) | 2 | 0.8 A max | $179.00 | View |
| LS-CTL-0119 | AC socket | 100 ~ 240 VAC, 50/60 Hz | 4 | 2.5 A max | $189.00 | View |
| LS-CTL-0121 | AC socket | 100 ~ 240 VAC, 50/60 Hz | 2 | 6 A max | $189.00 | View |
| LS-CTL-0118 | AC socket | 24 VDC | 1 | 17 A max | $229.00 | View |
| LS-CTL-0120 | AC socket | 100 ~ 240 VAC, 50/60 Hz | 4 | 3 A max | $239.00quote | View |
| LS-CTL-0122 | AC socket | 100 ~ 240 VAC, 50/60 Hz | 4 | 3 A max | $249.00 | View |
| LS-CTL-0114 | C13 220 VAC interface | 100 VAC to 240 VAC, 50; Hz/60 Hz | 4-channel | Max. 1.2 A | $259.00 | View |
| LS-CTL-0123 | AC socket | 100 ~ 240 VAC, 50/60 Hz | 2 | 6 A max | $269.00 | View |
| LS-CTL-0116 | C13 220 VAC interface | 100 VAC to 240 VAC, 50 Hz/60 Hz | 2-channel | Max. 6 A | $279.00 | View |
| LS-CTL-0115 | C13 220 VAC interface | 100 VAC to 240 VAC, 50 Hz/60 Hz | 4-channel | Max. 3 A | $289.00 | View |
| LS-CTL-0117 | C13 220 VAC interface | 100 VAC to 240 VAC, 50 Hz/60 Hz | 1-channel | Max. 18 A | $489.00 | View |
