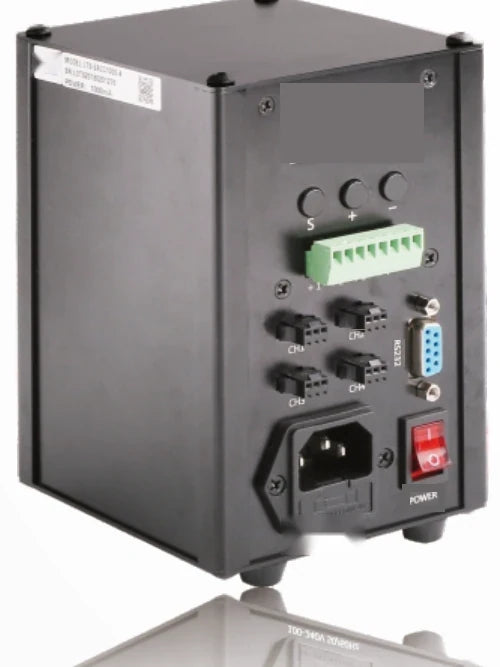

Constant current controller (LS-CTL-S02)

Light controllers

Constant current controller (LS-CTL-S02)

  • 7 models
  • from $219.00
  • Series LS-CTL-S02

The Constant current controller (LS-CTL-S02) is a range of 7 light controllers from LumaSpec Vision, from $219.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 7 models Series datasheet (PDF)

The series at a glance

Sizes / versions
2 ch, 10 W, 2 ch, 16 W, 2 ch, 2 W, 2 ch, 4 W, 4 ch, 12 W, 4 ch, 4 W, 4 ch, 8 W
Output
Constant current
Channels
2 channels, 4 channels
Control
Analog
Feature
Constant current

Features

  • Each channel controlled independently with high precision
  • Digital display, button control
  • Communicates with PC by RS232
  • Trigger, fast response, high reliability
  • Power off saving function
  • 5V 500mA output to supply other devices
  • Trigger delay T1 <= 80us, T3 <= 80us

All 7 models in the Constant current controller (LS-CTL-S02)

Link
LS-CTL-00022 ch, 2 W20-350mA1W$219.00View
LS-CTL-00042 ch, 4 W20-700mA2W$219.00View
LS-CTL-00072 ch, 10 W20-1500mA5W$229.00View
LS-CTL-00082 ch, 16 W20-2500mA8W$229.00View
LS-CTL-00034 ch, 4 W40-350mA1W$289.00View
LS-CTL-00054 ch, 8 W40-700mA2W$289.00View
LS-CTL-00064 ch, 12 W40-1000mA3W$299.00View
