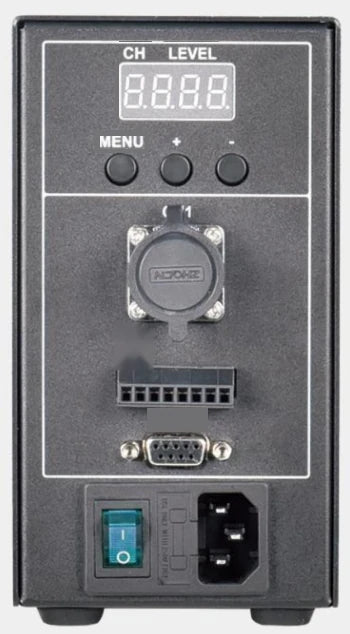

Constant current controller (LS-CTL-S41)

Light controllers

Constant current controller (LS-CTL-S41)

  • 25 models
  • from $229.00
  • Series LS-CTL-S41

The Constant current controller (LS-CTL-S41) is a range of 25 light controllers from LumaSpec Vision, from $229.00. It comes in 14 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 25 models Series datasheet (PDF)

The series at a glance

Sizes / versions
1 ch, 120 W, 1 ch, 200 W, 1 ch, 350 W, 1 ch, 65 W, 2 ch, 120 W, 2 ch, 200 W, 2 ch, 350 W, 2 ch, 65 W, 4 ch, 120 W, 4 ch, 200 W, 4 ch, 350 W, 4 ch, 450 W, 4 ch, 600 W, 4 ch, 65 W
Output
Constant current
Channels
1 channel, 2 channels, 4 channels
Control
Digital
Feature
Constant current

Features

  • Digital constant current controller
  • Single-channel output current up to 2.5~12A
  • Constant current output, flicker-free brightness
  • Low trigger response time
  • Parameters saved in real time, no need to set them at every power-on
  • Remote parameter setting through RS232 serial port
  • Trigger level can be set to adapt to different trigger modes
  • Trigger debounce filter, stronger anti-interference

All 25 models in the Constant current controller (LS-CTL-S41)

Link
LS-CTL-01771 ch, 65 W2.5~12A124V/48V$229.00View
LS-CTL-01811 ch, 120 W2.5~12A124V/48V$249.00View
LS-CTL-01841 ch, 120 W2.5~12A124V/48V$249.00View
LS-CTL-01782 ch, 65 W2.5~12A224V/48V$259.00View
LS-CTL-01752 ch, 65 W2A224/48V$259.00View
LS-CTL-01792 ch, 65 W2A224/48V$259.00View
LS-CTL-01871 ch, 200 W2.5~12A124V/48V$289.00View
LS-CTL-01901 ch, 200 W2.5~12A124V/48V$289.00View
LS-CTL-01822 ch, 120 W2.5~12A224V/48V$289.00View
LS-CTL-01882 ch, 200 W2.5~12A224V/48V$329.00View
LS-CTL-01922 ch, 200 W2.5~12A224V/48V$329.00View
LS-CTL-01764 ch, 65 W1/2A424/48V$329.00View
LS-CTL-01804 ch, 120 W1/2A424/48V$359.00View
LS-CTL-01834 ch, 120 W1/2A424/48V$359.00View
LS-CTL-01854 ch, 200 W2~5A424V/48V$399.00View
LS-CTL-01864 ch, 200 W1/2A424/48V$399.00View
LS-CTL-01894 ch, 200 W1/2A424/48V$399.00View
LS-CTL-01911 ch, 350 W2.5~12A124V/48V$499.00View
LS-CTL-01971 ch, 350 W2.5~12A124V/48V$499.00View
LS-CTL-01942 ch, 350 W2.5~12A224V/48V$549.00View
LS-CTL-01962 ch, 350 W2.5~12A224V/48V$549.00View
LS-CTL-01934 ch, 350 W2~5A424V/48V$629.00View
LS-CTL-01954 ch, 350 W2~5A424V/48V$629.00View
LS-CTL-01984 ch, 450 W3A448V$719.00View
LS-CTL-01994 ch, 600 W3A448V$809.00View
