Light controllers
Constant current controller, 4 ch, 65 W, 89 x 147 mm (LS-CTL-0176)
Model LS-CTL-0176
- Channels4
- Output24/48V
- Total output65 W
- TriggerEdge + level trigger
$329.00
Ships in 2-3 weeks
1.05 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Digital constant current controllers with flicker-free constant current output, real-time parameter saving, remote setting through RS232 and settable trigger level; 1, 2 and 4 channel versions for 24V/48V light sources.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0176 |
|---|---|
| Control | Digital (4-digit display, buttons), RS232 |
| Working mode | 0: constant off, 1: constant on, 2: strobe, 3: trigger delay shutdown |
Light
| Connected light source type | 24V light source |
|---|---|
| Brightness levels | 255 |
Environment and compliance
| Operating temperature | -5~50°C |
|---|
Electrical
| Baud rate | 9600-115200bps optional |
|---|---|
| Max input voltage | AC220V |
| Strobe time | 1~999ms |
| Trigger | External trigger, edge + level |
| Trigger mode | Edge + level trigger |
| Built-in power supply power | 65W |
| Number of channels | 4 |
| Max output current per channel | 1/2A |
| Max output voltage | 24/48V |
| Overheat protection | 65W none, all others have |
| Short-circuit protection | No |
| Total output (W) | 65 |
Mechanical

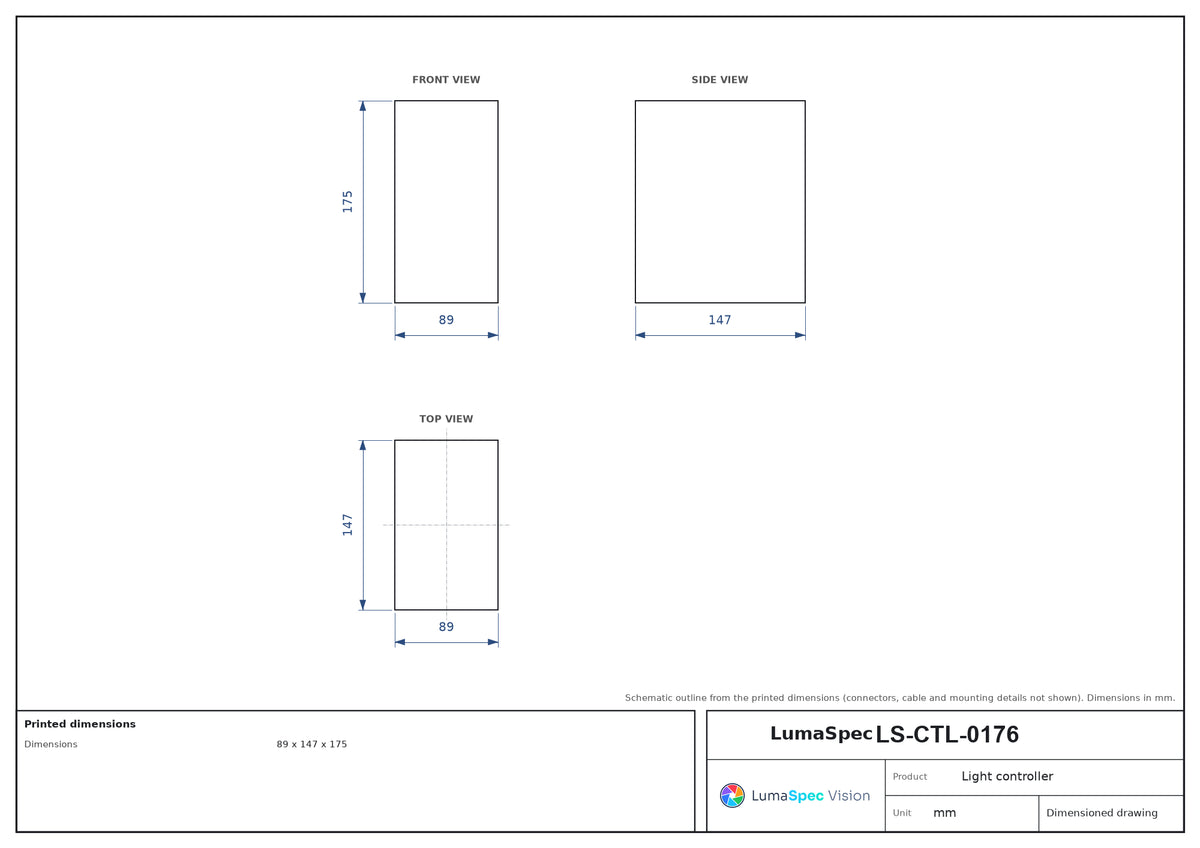

| Dimensions (mm) | 89 x 147 x 175 |
|---|---|
| Shipping weight | 1.05 kg |
